Philips FWD18 - Main Board Schematics and Layouts; Circuit Diagram - Main Board

22 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

5 - 15 - 1

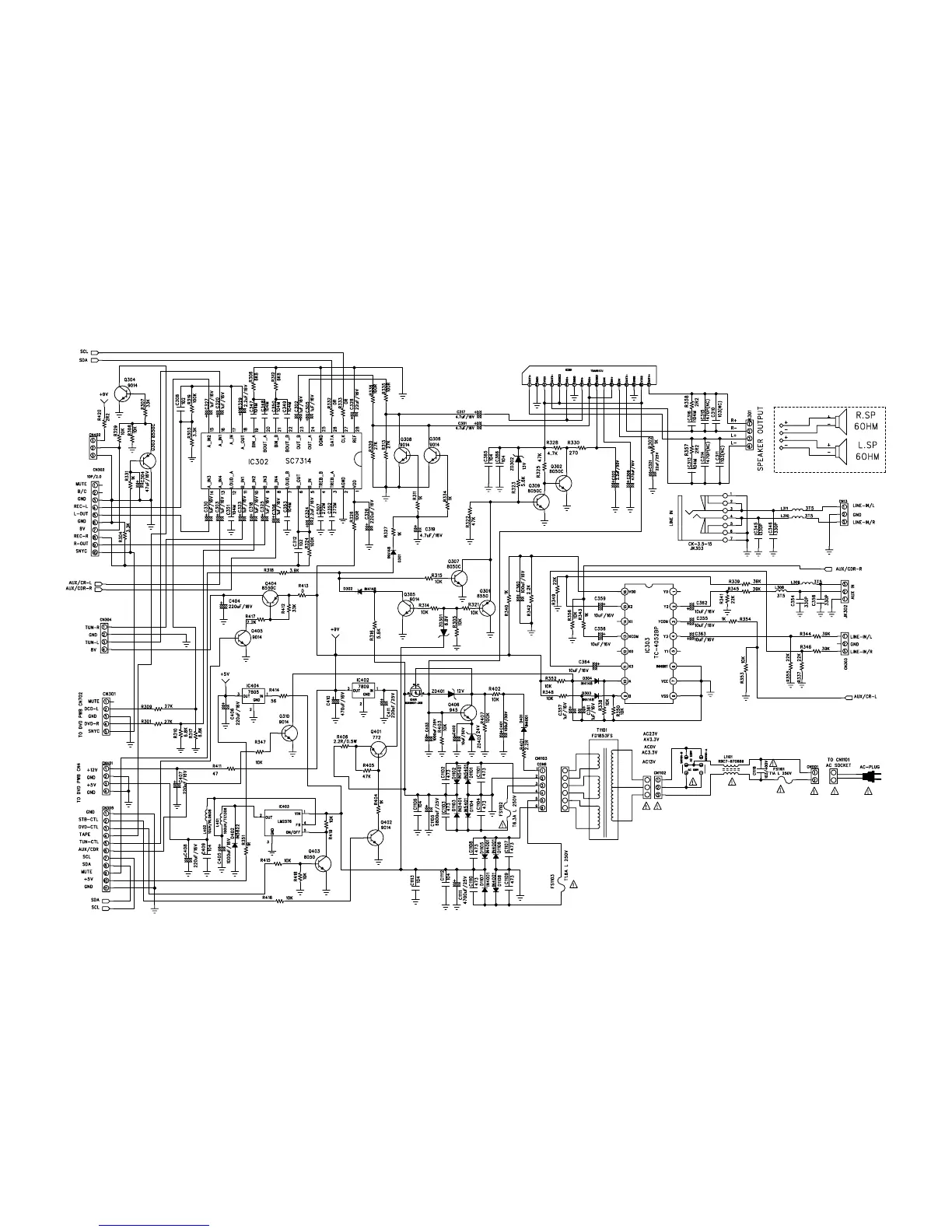

CIRCUIT DIAGRAM - MAIN BOARD
