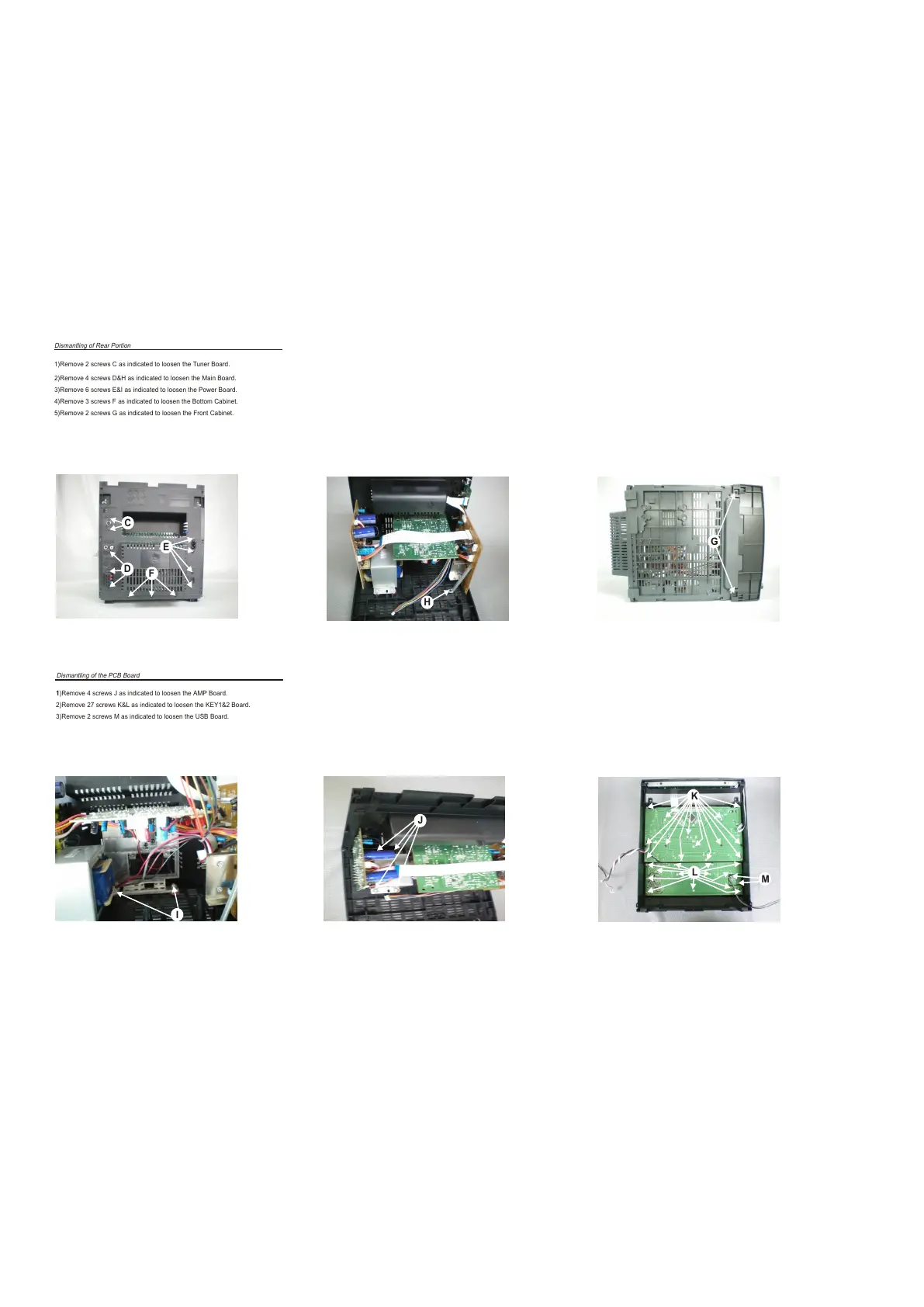

Dismantling of Rear Portion
Dismantling of the PCB Board
1)Remove 2 screws C as indicated to loosen the Tuner Board.
3)Remove 6 screws E&I as indicated to loosen the Power Board.
4)Remove 3 screws F as indicated to loosen the Bottom Cabinet.
5)Remove 2 screws G as indicated to loosen the Front Cabinet.
2)Remove 4 screws D&H as indicated to loosen the Main Board.
3)Remove 2 screws M as indicated to loosen the USB Board.
2)Remove 27 screws K&L as indicated to loosen the KEY1&2 Board.
1)Remove 4 screws J as indicated to loosen the AMP Board.
C
F
D
E
G
H
I
J
K
L
M
