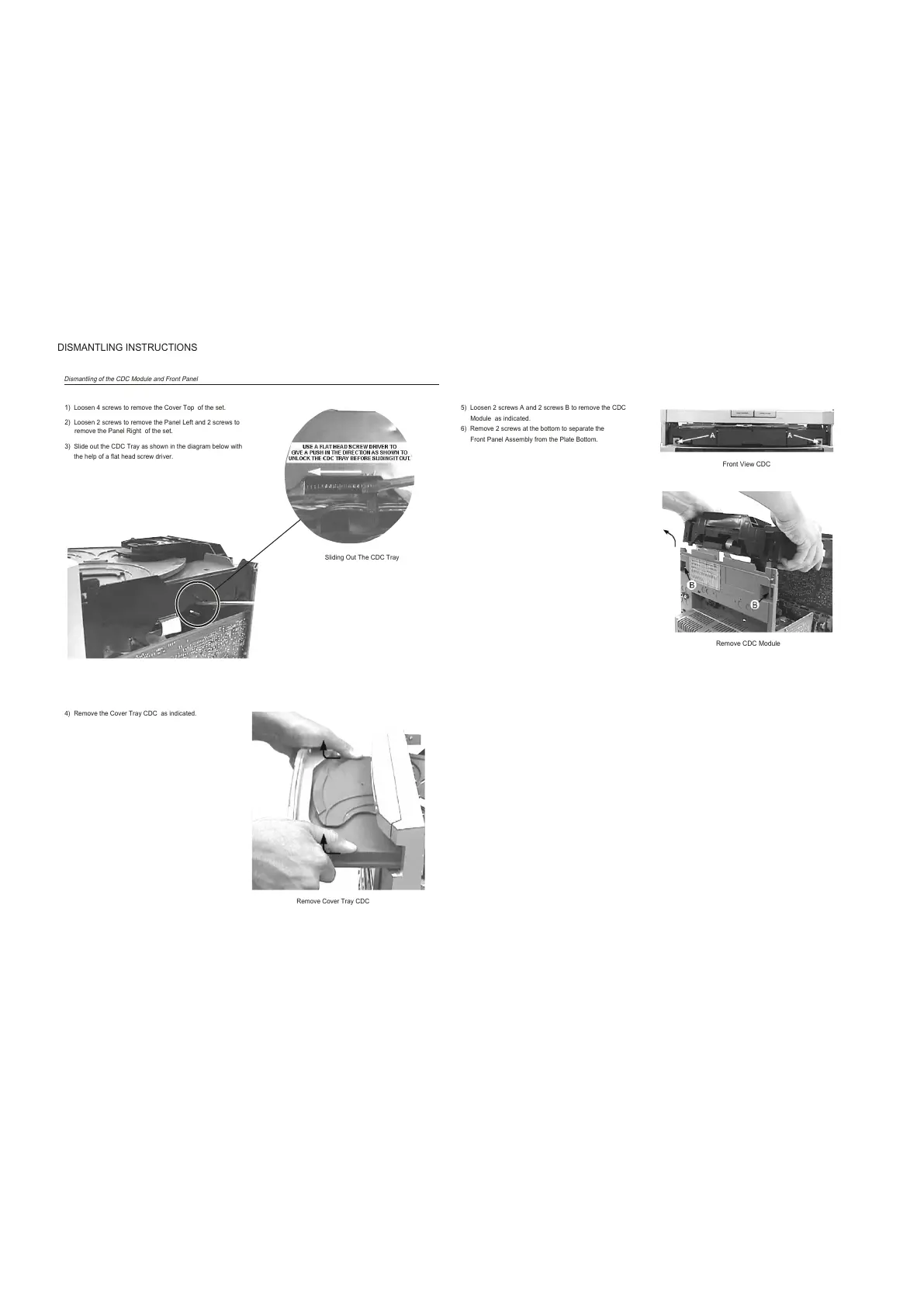

DISMANTLING INSTRUCTIONS
1) Loosen 4 screws to remove the Cover Top of the set.
2) Loosen 2 screws to remove the Panel Left and 2 screws to
remove the Panel Right of the set.
3) Slide out the CDC Tray as shown in the diagram below with
the help of a flat head screw driver.
Dismantling of the CDC Module and Front Panel
Remove CDC Module
4) Remove the Cover Tray CDC as indicated.
Sliding Out The CDC Tray
Front View CDC
Remove Cover Tray CDC
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module as indicated.
6) Remove 2 screws at the bottom to separate the
Front Panel Assembly from the Plate Bottom.
