Philips GC3660 - Disassembly Advice; Backplate Assembly Disassembly; Filling Door and Water Tank Assembly Disassembly; Inlay Covers and ASO Assembly Disassembly

GC3660
BACKPLATE SCREW COVER 25
BACKPLATE MOULDED 8

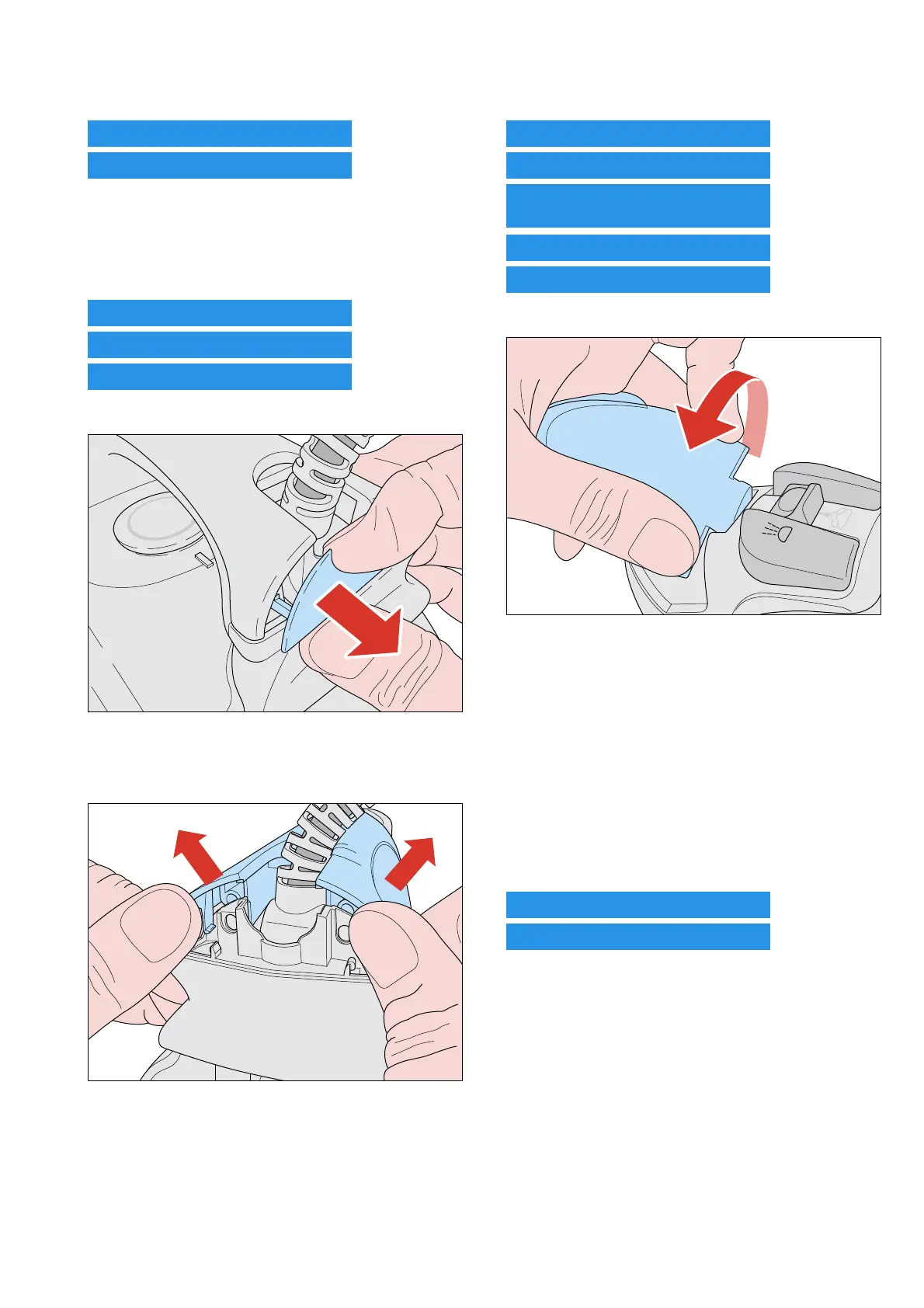

Disassemble BACKPLATE SCREW COVER 25
Remove screw A
Disassemble BACKPLATE MOULDED 8
INLAY COVER MOULDED 26
INLAY MOULDED 19
ASO ASSY 28
Disassemble INLAY COVER MOULDED 26
Remove screw B1, B2
Disengage rear catch of INLAY MOULDED 19
Disassemble INLAY MOULDED 19
DISASSEMBLY ADVICE
FILLING DOOR ASSY 24
SUB-INLAY PRINTED 22
WATER TANK & HOUSING
ASSY 11
SWIVEL MOULDED 7
CORDSET 9
Disassemble FILLING DOOR ASSY 24
Remove screw C
Disassemble SUB-INLAY PRINTED 22
Disassemble TANK TOP SEAL 17
Remove screw D1, D2, D3
Disassemble WATER TANK & HOUSING ASSY 11
Disengage quick-connectors of CORDSET 9
Remove screw E1, E2
Disassemble swivel column
Disassemble SWIVEL MOULDED 7
Disassemble CORDSET 9
COVER ASSY 5
SOLEPLATE MOUNTED ASSY 1
Remove screw F1, F2, F3
Disassemble THERMOSTAT BUSH 10
Disassemble COVER ASSY 5
Disassemble SOLEPLATE MOUNTED ASSY 1
2-5
