Philips GC8220 - Disassembly Advice - Iron; Wiring at Rear HOUSING

GC8220
2-9
BACKPLATE 1
SWIVEL 2
HOSE CORD ASSY 3
Remove Screw A
Disassemble BACKPLATE 1
Remove Screw B1, B2
Remove Clamping plate
Remove Power cord quick-connect S, E, L, N
Remove Hose clip (a)
Disassemble Steam hose
Disassemble HOSE CORD ASSY 3
Steam hose
S
Black
Hose clip(a)
Power cord
N
Blue
Clamping
plate
BlueGreen
NLE
B2
B1
Brown

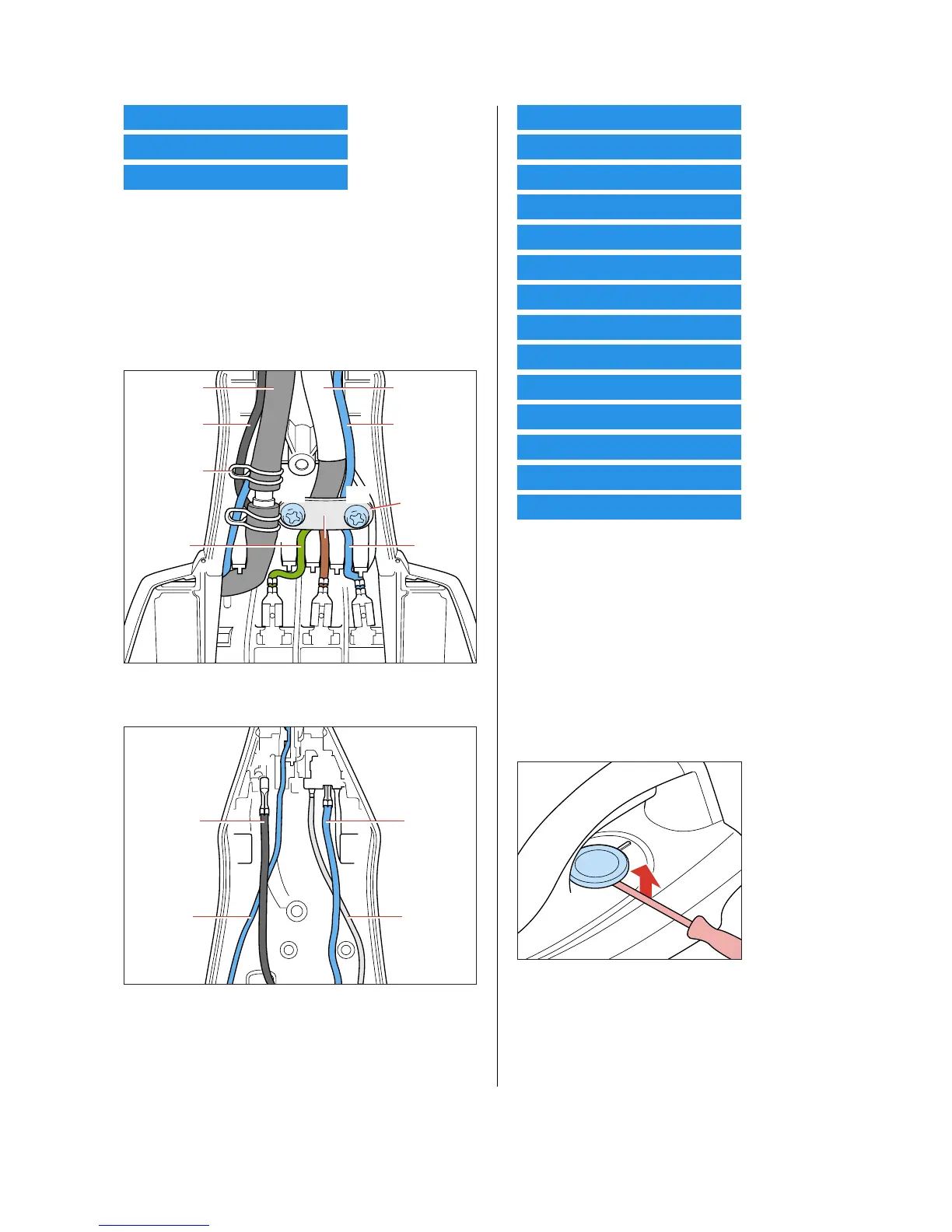

Fig 1. Wiring at rear HOUSING (Part 1)
Blue
(Micro switch)
Black
(Microswitch)
White
(Lamp assy)
Blue
(Lamp assy)
NS
Fig 2. Wiring at rear HOUSING (Part 2)
DISASSEMBLY ADVICE - IRON
INLAY 4
STEAM LOCK 6
LAMP ASSY 7
MICROSWITCH ASSY 9
SWITCH HOLDER 10
PIVOT HOLDER 11
TRIGGER 12
THERMOSTAT DIAL ASSY 14
HOUSING PRINTED 16
SOLEPLATE COVER 17
THERMOSTAT BUSH 19
RUBBER HOSE 20
BRASS JOINT 21
SOLEPLATE ASSY 23
Remove Screw A
Disassemble BACKPLATE 1
Release Inlay rear catch
Disassemble INLAY 4
Disassemble STEAM LOCK 6
Disassemble SWITCH HOLDER 10
Disassemble MICROSWITCH ASSY 9
Remove Screw C
Disassemble PIVOT HOLDER 11
Disassemble TRIGGER 12
Disassemble THERMOSTAT DIAL 14
Fig 3.
Remove Screws D1, D2, D3
Disassemble HOUSING PRINTED 16
Remove Screws E1, E2, E3
Disassemble SOLEPLATE COVER 17
Remove Hose clip (b)
Disassemble RUBBER HOSE 20
