PARTS LIST - IRON & ELECTRICAL DIAGRAM
STAND IRON
L
N
Boiler Electronics
On/Off switch
Steam up switch
Steam down switch
Thermal
Fuse
Thermal
Fuse
L
N
L
S
N
Boiler
Heating
Element
Reed
Switch
Thermistor
1
Ther-
mostat
Heating
Element
Pump
M
Electro-
valve
Thermistor
2
Power LED x 1
Steam LEDs x 4
Tank Empty LED x 1
Rinse Reminder LED x1

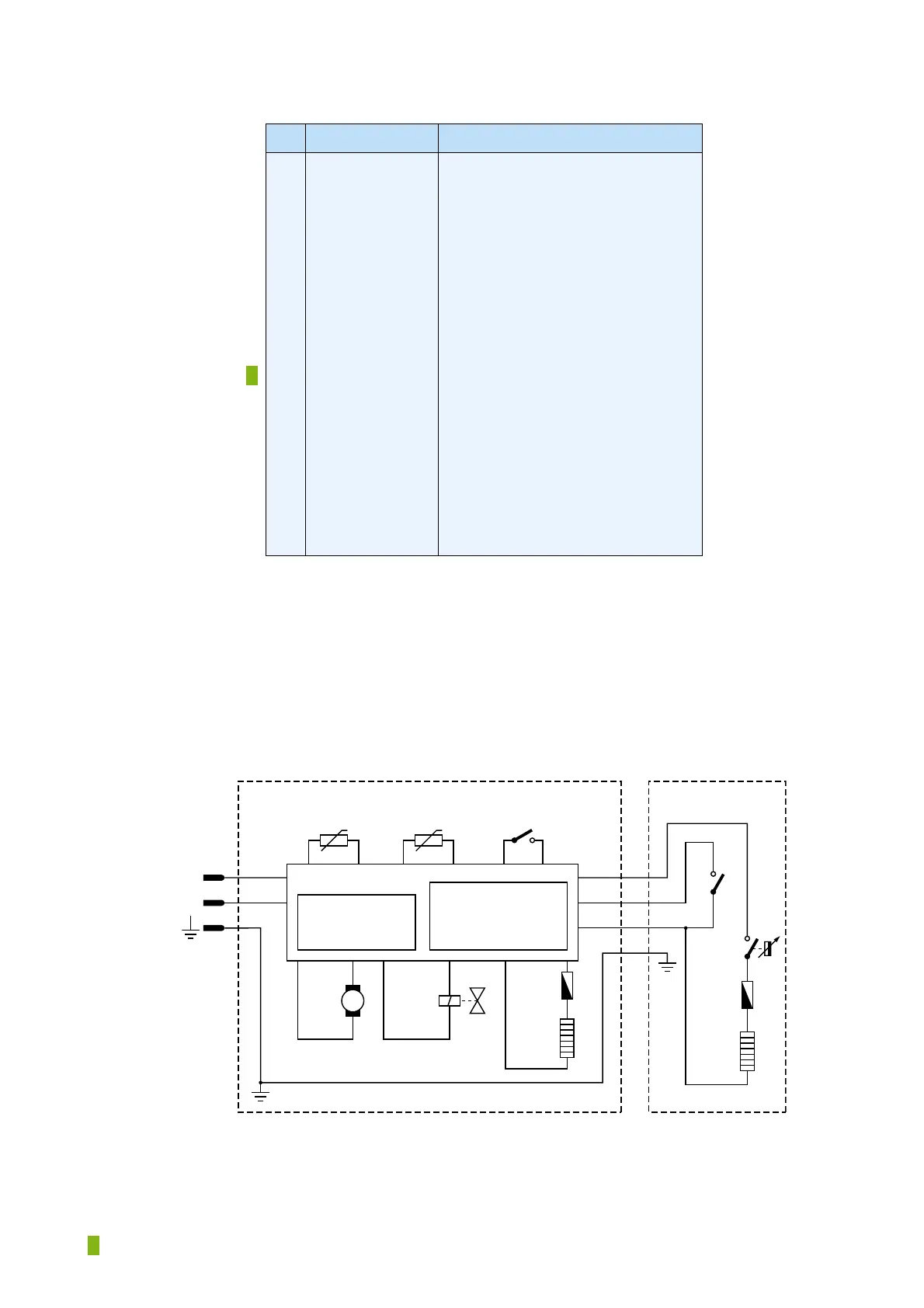

Fig 4 . Electrical diagram
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
4239 021 68641
4239 015 56120
4239 015 56510
4239 010 10110
4239 015 70150
4239 026 48151
4239 021 31780
4239 021 36861
4239 026 13220
4239 021 74481
4239 021 74091
4239 026 46601
4239 026 46611
4239 010 09290
4239 021 74491
4239 026 52261
4239 026 48211
4239 026 48221
4239 021 74211
Soleplate assy 230 V (Steamglide-SOS)
Rubber hose (SOS)
Rubber hose (dosing)
Hose clip
Ryton ring
Soleplate cover
Steam deviator assy
Lamp mounted assy
Thermostat bush
Housing printed (8375)
Microswitch assy
Trigger (8375)
Steam lock (8375)
Trigger spring
Thermostat dial assy (8375)
SOS knob (8375)
Inlay SOS (8375)
Backplate (8375)
Hose cord mounted assy
