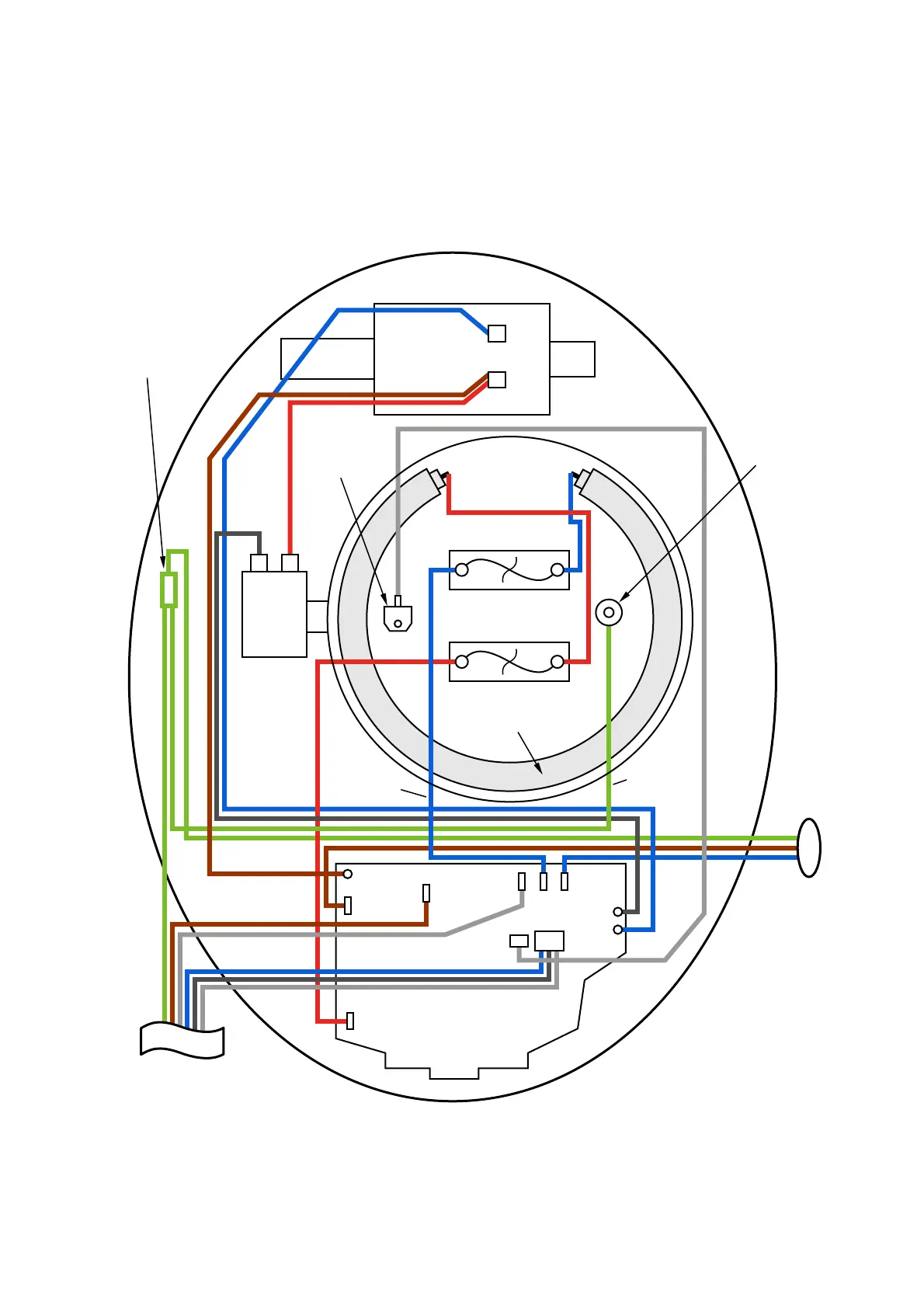

Philips GC8620 - Wiring Diagram - Stand; Stand Electrical Connections

GC8620
10-12
Pump
Boiler Heater
Earth Inter-
connection
Thermal Fuse
Thermal Fuse
PCBA
E-valve
Hosecord
(to Iron)
STAND
Flex
Boiler Earth
Point
Flex
Neutral
Iron
Live
Pump-EV-
Live
WA1 - PCB to
EV-Pump-Live
WA2 - PCB to
Pump-Ctrl
WA19 : HE (L)
- Fuse (L)
WA7 - PCB
to EV-Ctrl
WA20 : HE (N)
- Fuse (N)
WA6 : Fuse
(N) - PCB
WA5 : Fuse
(L) - PCB
Flex Live
Boiler Live
Iron
Neutral
Thermistor
Boiler
EV
Ctrl
Pump
Ctrl
Boiler
Neutral
Comms
Thermistor
WA3 : Earth
Wire_Boiler
WIRING DIAGRAM STAND
