Philips GC8620 Service Manual

GC8620
3-12
DISASSEMBLY ADVICE - IRON
LIGHT STRIP CAP ASSY 1
INLAY AND LIGHT STRIP ASSY 2
REFLECTOR MOLDED 3
LED MICROSWITCH HOLDER ASSY 4
TRIGGER SPRING 5
TRIGGER MOLDED 6
MICA PLATE 7
PLASTIC WASHER (1x) 8 (FRONT)
DECORATION CAP PRINTED 9

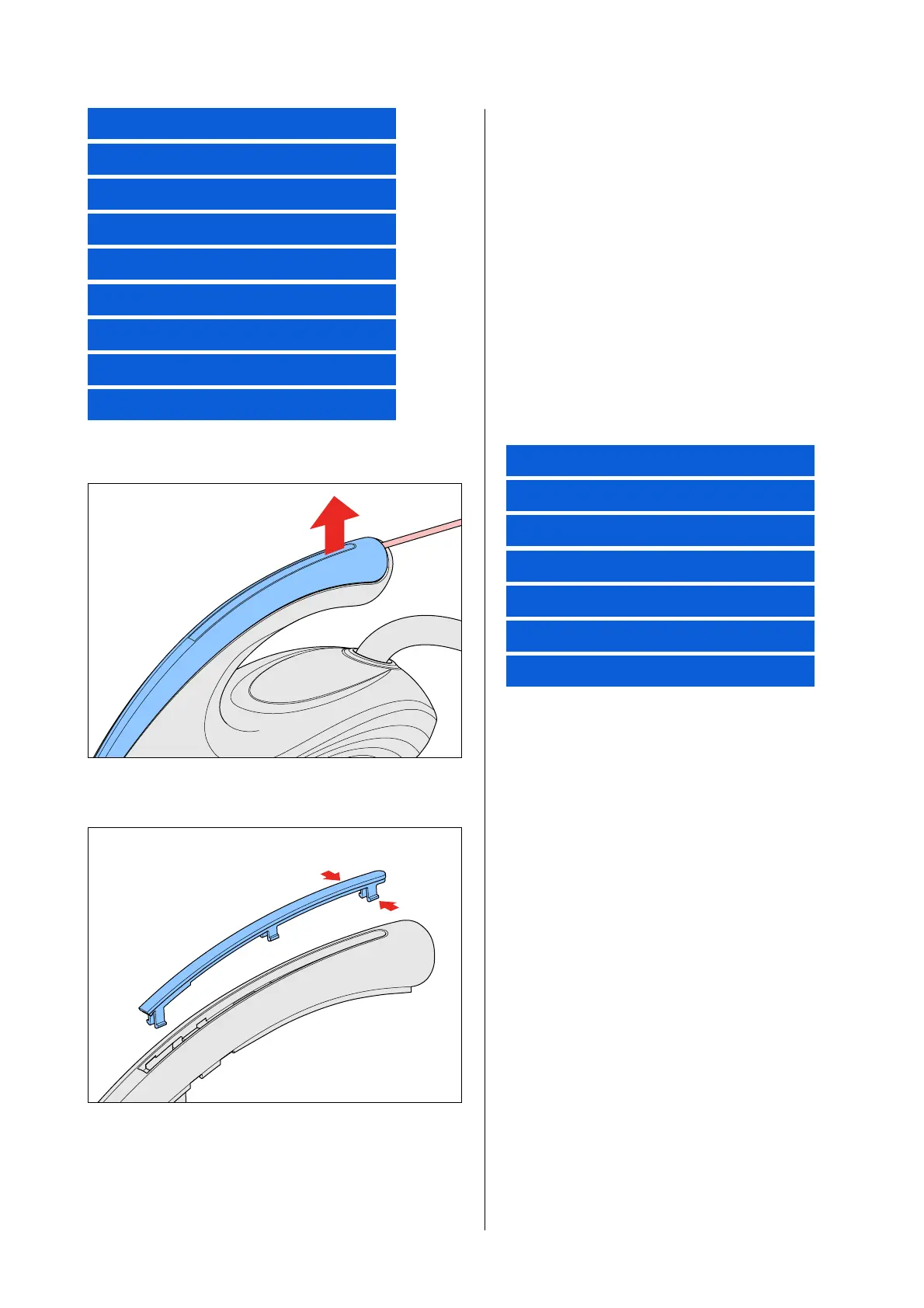

Remove Screw A
Disassemble LIGHT STRIP 1
Fig 1. Using “-” screw driver to lift up the Inlay and release
the catch at the end of the handle.
Apply forces
Fig 2. Position of the catch to be applied forces
at the end of the handle.
Remove Screw B
Disassemble INLAY AND LIGHT STRIP ASSY 2
Disassemble REFLECTOR MOLDED 3
Remove Screw C
Disassemble LED MICROSWITCH HOLDER
ASSY 4
Disassemble TRIGGER SPRING 5
Disassemble TRIGGER MOLDED 6
Remove Screw D
Disassemble MICA PLATE 7
Disassemble PLASTIC WASHER (1x) 8
Remove Screw E1, E2
Remove Screw F
Disassemble DECORATION CAP PRINTED 9
RYTON RING 10
DEVIATOR HOUSING MOLDED 11
IRON THERMISTOR ASSY 12
PLSTIC WASHER (2x) 8 (REAR)
HOSE CORD MOUNTED ASSY 14
HOUSING PRINTED 15
SOLEPLATE MOUNTED ASSY 16
Remove Screw A
Disassemble LIGHT STRIP 1
Remove Screw B
Disassemble INLAY AND LIGHT STRIP ASSY 2
Disassemble REFLECTOR MOLDED 3
Remove Screw C
Remove Screw E1, E2
Remove Screw D
Disassemble MICA PLATE 7
Disassemble PLASTIC WASHER (1x) 8
Disassemble RYTON RING 10
Remove Screw G1, G2, G3, G4
Disassemble DEVIATOR HOUSING MOLDED 11
Remove Screw H
Disassemble IRON THERMISTOR ASSY 12
Remove Screw I1, I2
Disassemble PLASTIC WASHER (2x) 8
Disconnect Wires
Release Hose clip (2x)
Remove Screw J
Disconnect Wires
Disassemble HOSE CORD MOUNTED ASSY 14
Disassemble HOUSING PRINTED 15
Disassemble SOLEPLATE MOUNTED ASSY 16
