HI565 ~ HI566
HI555 ~ HI556

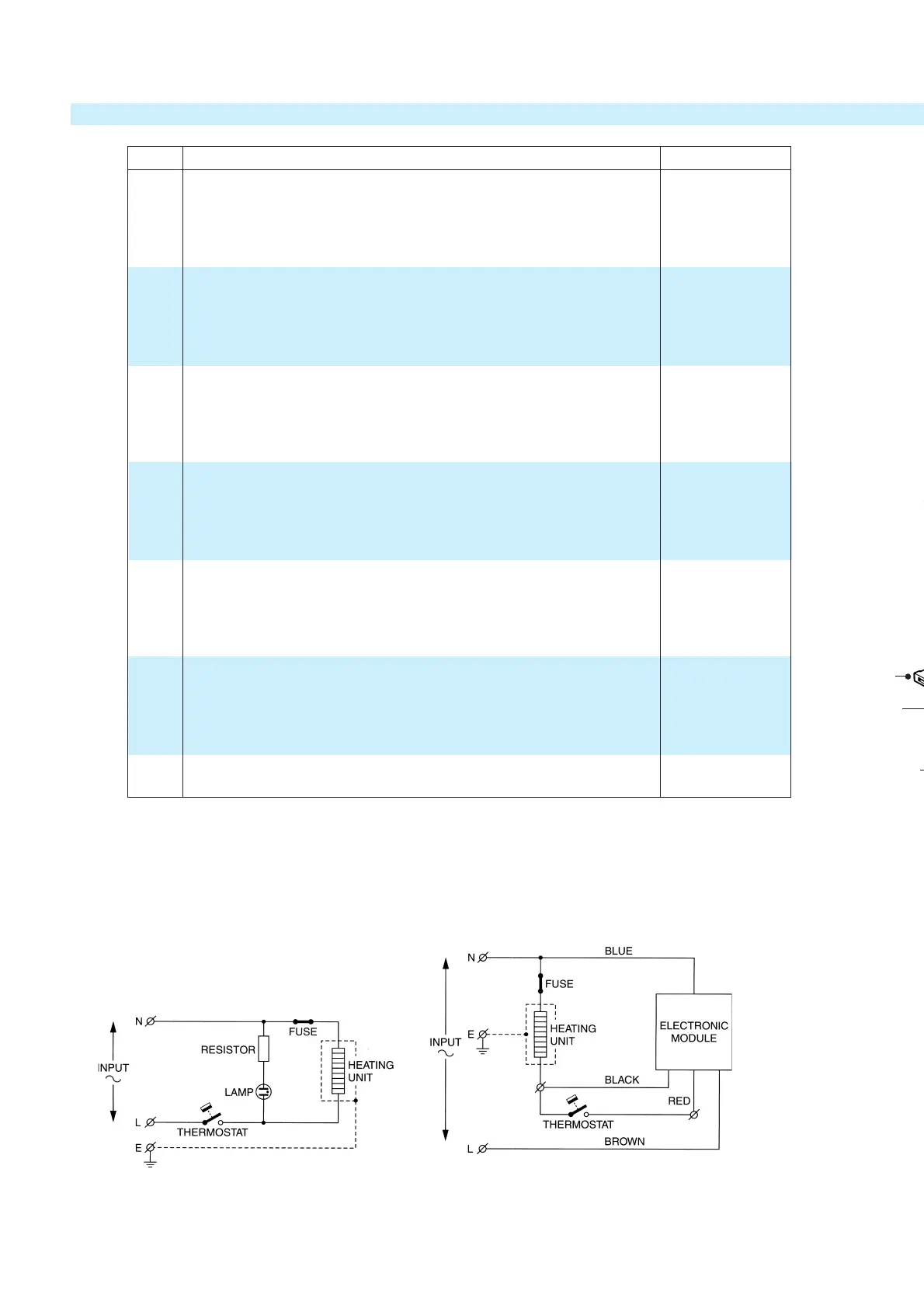

PARTS LIST
Pos Description Consists of Service code
1 Dial HI515/525 (Blue) 101,102,103 4822 310 11328
Dial HI535/545 (Green) 101,102,103 4822 310 11329
2 Rattle spring 4822 310 11021
4 Black plate 220-240V 4239 020 95560
Black plate 100-127V 4239 020 98560
6 Inlay HI555-HI556 104,105 4239 020 93410
Inlay HI565-HI566 104,105 4239 020 93520
7 Set operation knobs HI515/HI525 ( Blue) 105,106,107 4822 310 11335
Set operation knobs HI535/HI545 (Green) 105,106,107 4822 310 11336
8 Door 4822 443 11191
9 Door holder / deairing bush 108,109 4822 310 11026
10 Spray unit 4822 360 10441
11 Pilot light 100-240V 4822 134 10094
12 PCB module 100-127 V 4239 020 86770
PCB module 220-240 V 4239 020 86780
13 Slide unit (Blue) 110,111,105 4822 310 11337
14 Needle set 112, 113, 114, 115, 116 9965 000 00170
15 Handle unprinted 4822 498 10732
16 Spray pump set 10,117,118,119,120 4822 310 11339
17 S.O.S. pump set 117,118,120,121,122 4822 310 11341
18 Water tank set (blue) 108,109,123,124,125,126 4822 310 11342
Water tank set (green) 108,109,123,124,125,126 4822 310 11343
19 Self clean button set (Blue) 124,125 4822 310 11344
Self clean button set (green) 124,125 4822 310 11345
20 Thermostat 4822 282 10315
21 Thermostat pin 4822 535 10469
22 Sealing set 126,127,128,129 4822 310 11034
23 Soleplate + thermostat 100V 4822 259 10327
Soleplate + thermostat 110-127V 4822 259 10329
Soleplate + thermostat 220-240V 4822 259 10328
24 Anit drip value set 126,130 4822 310 11035
25 Cover + Typeplate 131,132 4239 022 52850
1
121
10
119
108
109
11
11
11
11
11
11
11
Screws : d x
A, A1 M2.6 x 9
B 6N x 1
C M3 x 1
D M3.5 x
E M3.5 x
F M4 x
G 7N x
H 8N x 1
DFU:
Note:
From week 0005 onward, cover (item 131) and typeplate ( item 132) have been modified. The
modified parts are not interchangeable with the orginal parts. In case the item 131 or item 132
need to be replaced, both item have to be replaced together under code number 4239 022
52850 ( item 25).
