Note
This unit is HDMI CEC compatible. It enables the •
connected TV/device to control each other over HDMI.
If your TV has only a DVI connection, connect through
•
a HDMI/DVI adaptor. An extra audio connection is
needed to complete this connection.
Option2: Connect through SCART
1 Connect one end of the AV cable (red/
white/yellow) to the AV input sockets on
the scart adapter.
2 Connect the other end to the AV OUT
(VIDEO OUT AUDIO R/L) sockets on the
unit, then connect the SCART adapter to
the TV.
Option 3: Connect through
component video
Connect a progressive scan TV through
component video for higher quality video.
TV
SCART IN
Option 2: Connect through SCART •
(for a standard TV).
Option 3: connect through •
component video (for a standard TV
or Progressive Scan TV).
Option 4: connect through composite •
video (CVBS) (for a standard TV).

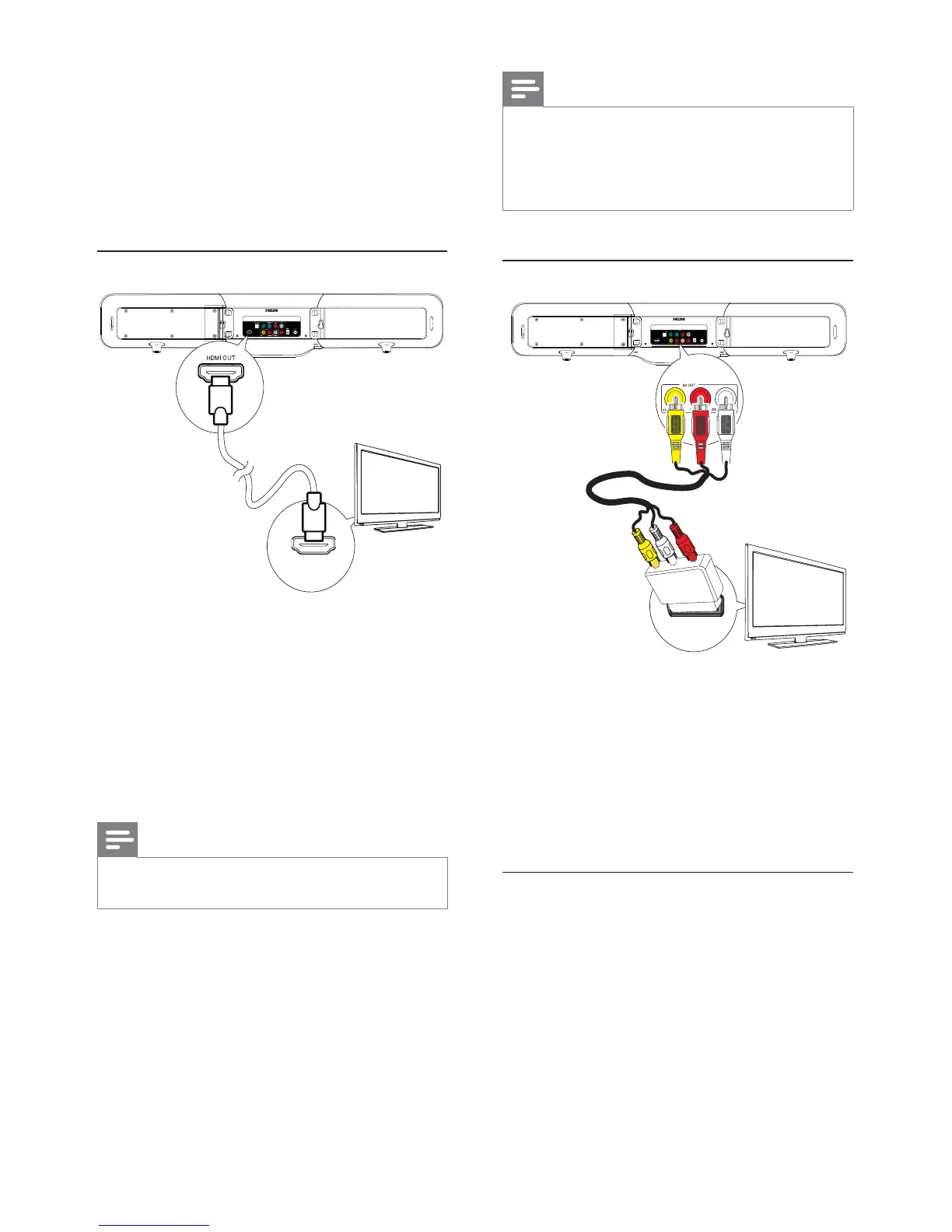

Option 1: Connect through HDMI
Connect HDMI (High Defi nition Multimedia
Interface), DVI (Digital Visual Interface), or
HDCP (High-bandwidth Digital Contents
Protection)-compliant TVs through HDMI
for the best picture quality. This connection
transmits both video and audio signals. Through
this connection, you can watch DVDs that
contain HD (High-Defi nition) content.
Note
Some TVs do not support HDMI audio transmission.•
This connection provides the best video quality.•
1 Connect an HDMI cable (not supplied) to:
the “ • HDMI” socket on this unit.
the HDMI input socket on the TV.•
TV
HDMI IN
