Philips HTB3510 User Manual

7EN
3 Connect and set
up
This section helps you connect your home
theater to a TV and other devices, and then set
it up.
For information about the basic connections
of your home theater and accessories, see the
quick start guide.
Note
• For identication and supply ratings, see the type plate
at the back or bottom of the product.
• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Connect speakers
The speaker cables are color-coded for easy
connection. To connect a speaker to your home
theater, match the color on the speaker cable to
the color on the connector.

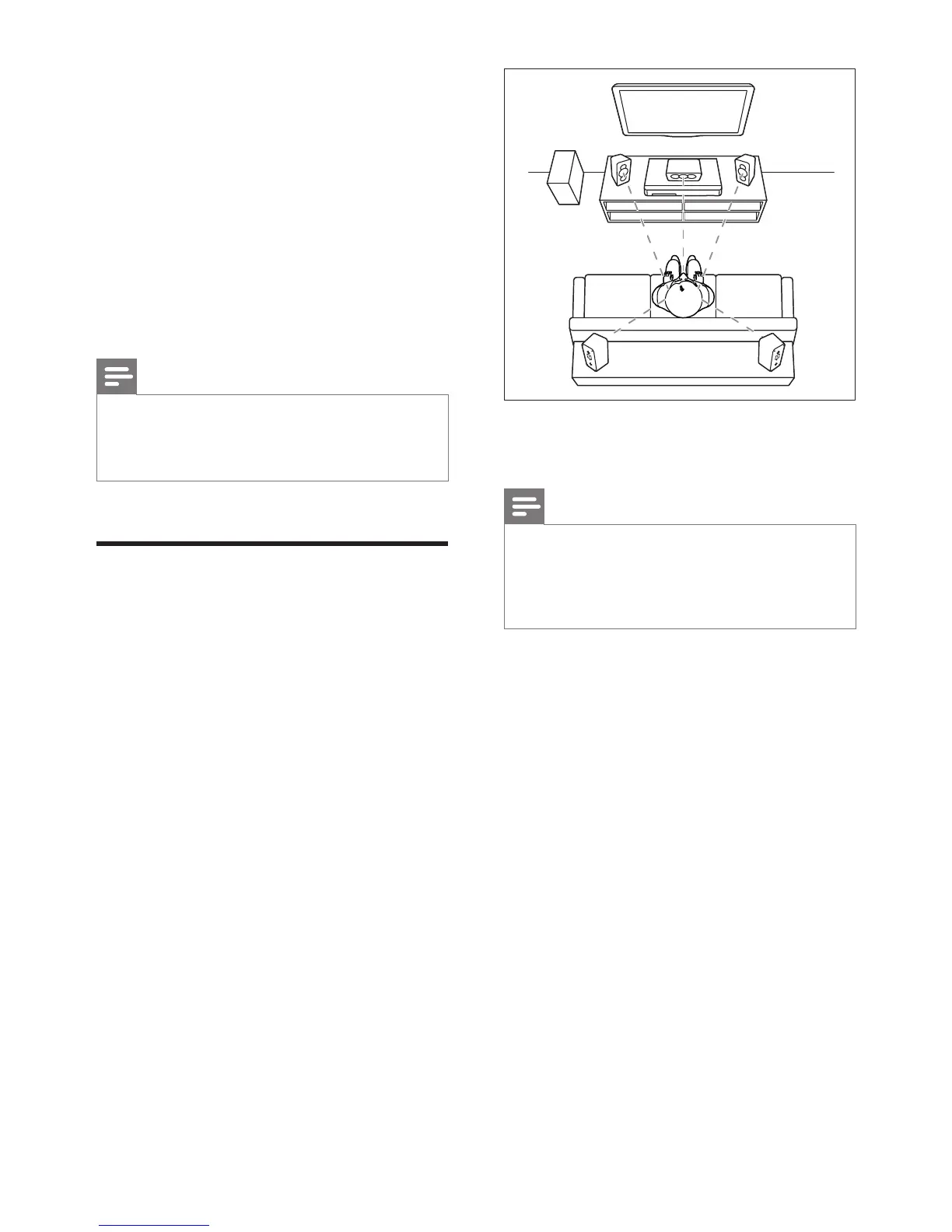

Speaker position plays a critical role in setting
up a surround sound effect. For best effect,
position all the speakers towards the seating
position and place them close to your ear level
(seated).
* The actual speaker shapes may vary from the
illustration above.
Note
• Surround sound depends on factors such as room
shape and size, type of wall and ceiling, windows and
reective surfaces, and speaker acoustics. Experiment
with the speaker positions to nd the optimum setting
for you.
Follow these general guidelines for speakers
placement.
1 Seating position:
This is the center of your listening area.
2 FRONT CENTER (front center) speaker:
Place the center speaker directly in front of
the seating position, either above or below
your TV.
3 FRONT LEFT (front left) and FRONT
RIGHT (front right) speakers:
Place the left and right speakers in the
front, and at equal distance from the center
speaker. Make sure that the left, right, and
the center speakers are at equal distance
from your seating position.
4 REAR LEFT (rear left) and REAR RIGHT
(rear right) speakers:
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it.
REAR
RIGHT
FRONT
LEFT
FRONT
CENTER
FRONT
RIGHT
REAR
LEFT
SUB
WOOFER

Philips HTB3510 Specifications

General

Number of satellite speakers	4
Satellite speakers RMS power	532 W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker woofer diameter (imperial)	3 \
Center speaker type	1-way
Subwoofer type	Passive subwoofer
Subwoofer frequency range	20 - 150 Hz
Subwoofer driver diameter (imperial)	1 \
FM radio	Yes
Supported radio bands	FM
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	105 W
MP3 bit rates	32 - 320 Kbit/s
Audio decoders	DTS, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
RMS rated power	1000 W
Audio output channels	5.1 channels
Audio formats supported	AAC, FLAC, MKA, MP3, OGG, WAV, WMA
Total Harmonic Distortion (THD)	30 %
Package depth	327 mm
Package width	394 mm
Package height	596 mm
Package weight	11220 g
Built-in HDD	No
Channels quantity	40 channels
Image formats supported	GIF, JPG, PNG
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Video formats supported	AVCHD, AVI, DIVX, DIVX HD, H.264, ISO, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG, WMV, WMV9
Product color	Black
Playback modes	Rotation, Zoom
Wi-Fi	-
Consumer Electronics Control (CEC)	EasyLink
Cables included	AC
HDMI in	0
USB version	2.0
HDMI version	1.4
Number of HDMI outputs	1

Weight and Dimensions

Main unit weight	266 g
Subwoofer weight	3660 g
Center speaker weight	650 g
Main unit dimensions (WxDxH)	435 x 286.5 x 56.3 mm
Subwoofer dimensions (WxDxH)	178 x 343 x 300 mm
Front speaker dimensions (WxDxH)	90 x 82 x 185 mm
Center speaker dimensions (WxDxH)	223 x 80 x 100 mm
