Connections

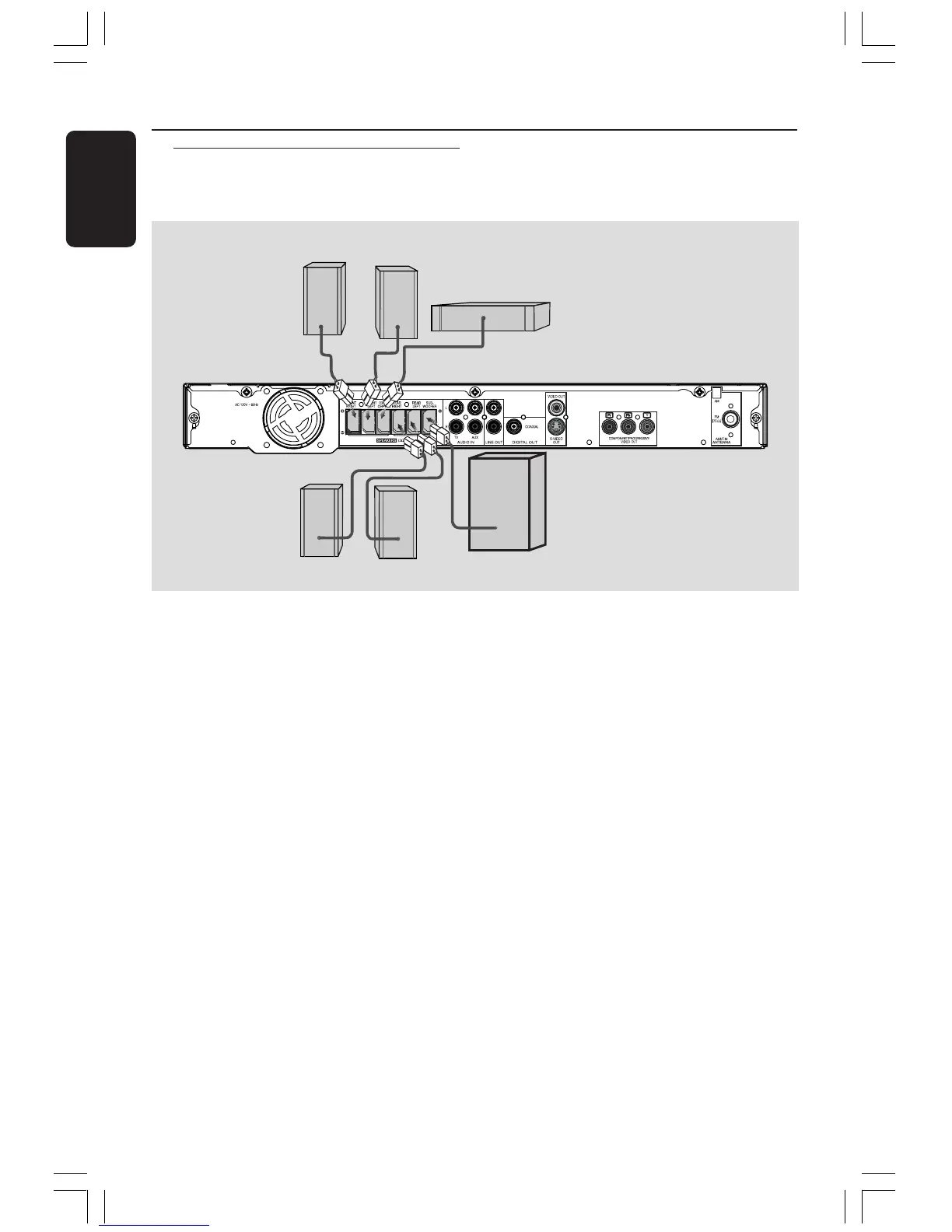

Step 2: Connecting speakers
and subwoofer
SUBWOOFER
REAR L
REAR R
CENTER
FRONT L
FRONT R
Front Speaker
(Right)
Front Speaker
(Left)
Rear Speaker
(Right)
Rear Speaker
(Left)
Passive
Subwoofer
Center
Speaker
Connect the supplied speaker systems
using the fixed speaker cables by
matching the colors of the jacks and
speaker cables.
Helpful Hint:
– Ensure that the speaker cables are
correctly connected. Improper connections
may damage the system due to short-circuit.
