Mechanical Instructions
EN 12 LCD LPL 2k84.
4.5 Model LC370WXE
4.5.1 Control Board (T-CON Board)

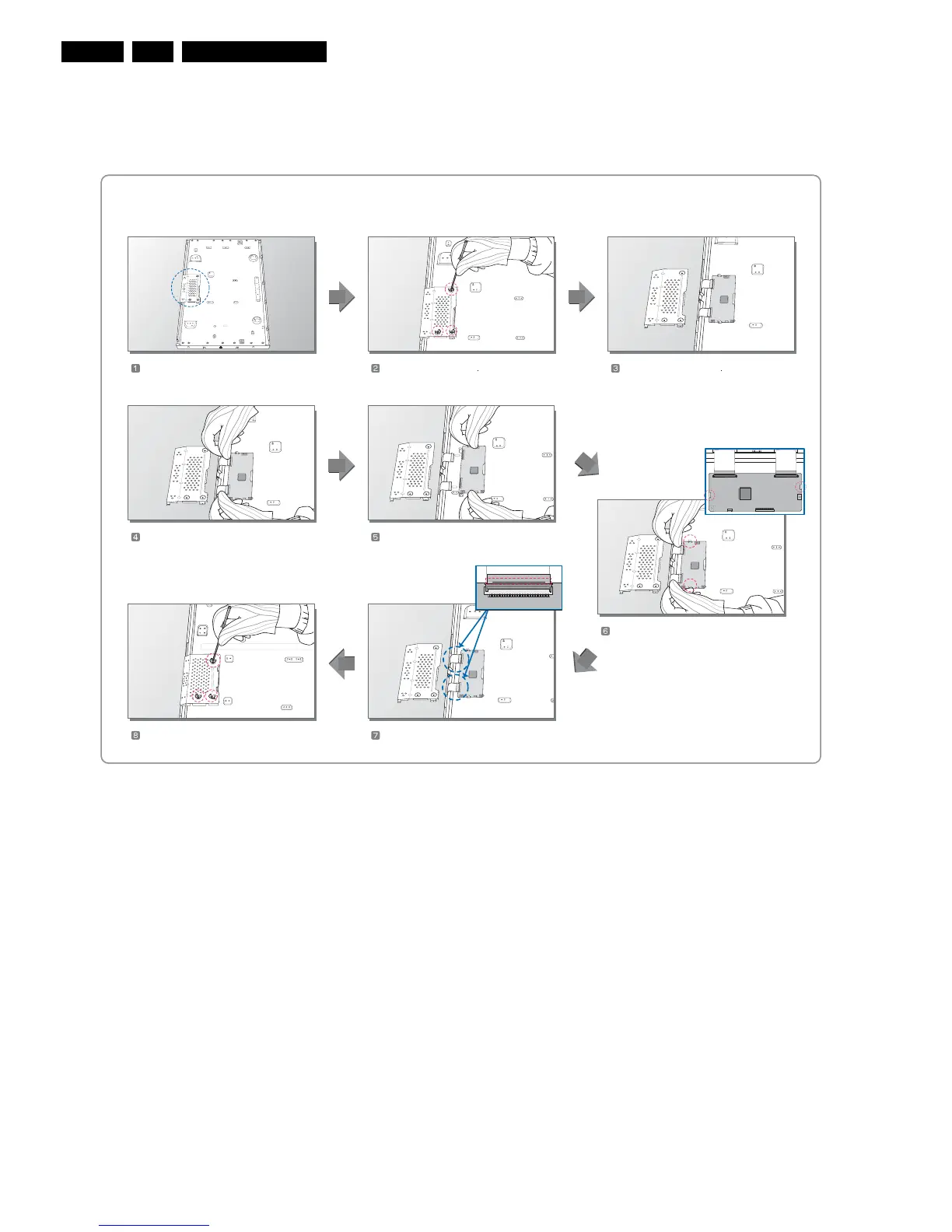

Figure 4-8 Replacement instructions T-CON board
4.5.2 Inverter (Master) Board
These displays have the Inverter Board located on the PSU.
This is a so-called IPB (Integrated Power Board).
Prepare the LCM. Separate the Screw(3EA)
Separate the Cover Shield
Separate the 60pin FFC. Separate the T-CON Board.
Replace of T-CON Board and
Assemble the 60pin FFC.
* Guide Pin station keeping check.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(60pin).
I_17781_001.eps
140708
MODEL: LC370WXE-SAA1
To Next Page
