Mechanical Instructions
EN 11LCD LPL 2k8 4.
4.4 Model LC370WUF
4.4.1 Control Board (T-CON Board)

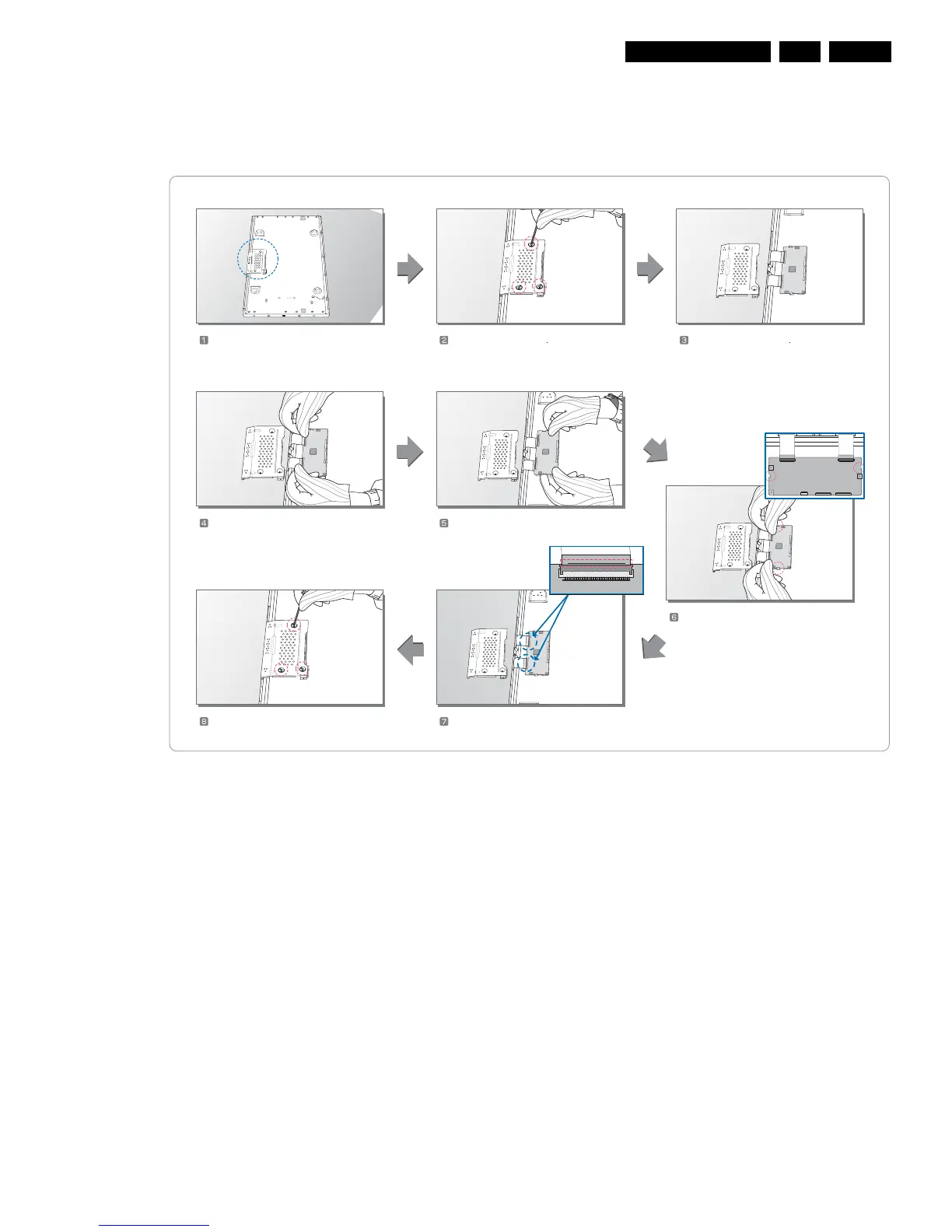

Figure 4-7 Replacement instructions T-CON board
4.4.2 Inverter (Master) Board
These displays have the Inverter Board located on the PSU.
This is a so-called IPB (Integrated Power Board).
MODEL: LC370WUF-SAB1
Separate the 96pin FFC. Separate the T-CON Board.
Replace of T-CON Board and
Assemble the 96pin FFC.
* Guide Pin station keeping check.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(96pin).
I_16892_018.eps
150808
Prepare the LCM. Separate the Screw(3EA) Separate the Cover Shield
To Next Page
