Mechanical Instructions
EN 10 LCD LPL 2k84.
4.3.2 Inverter (Master) Board

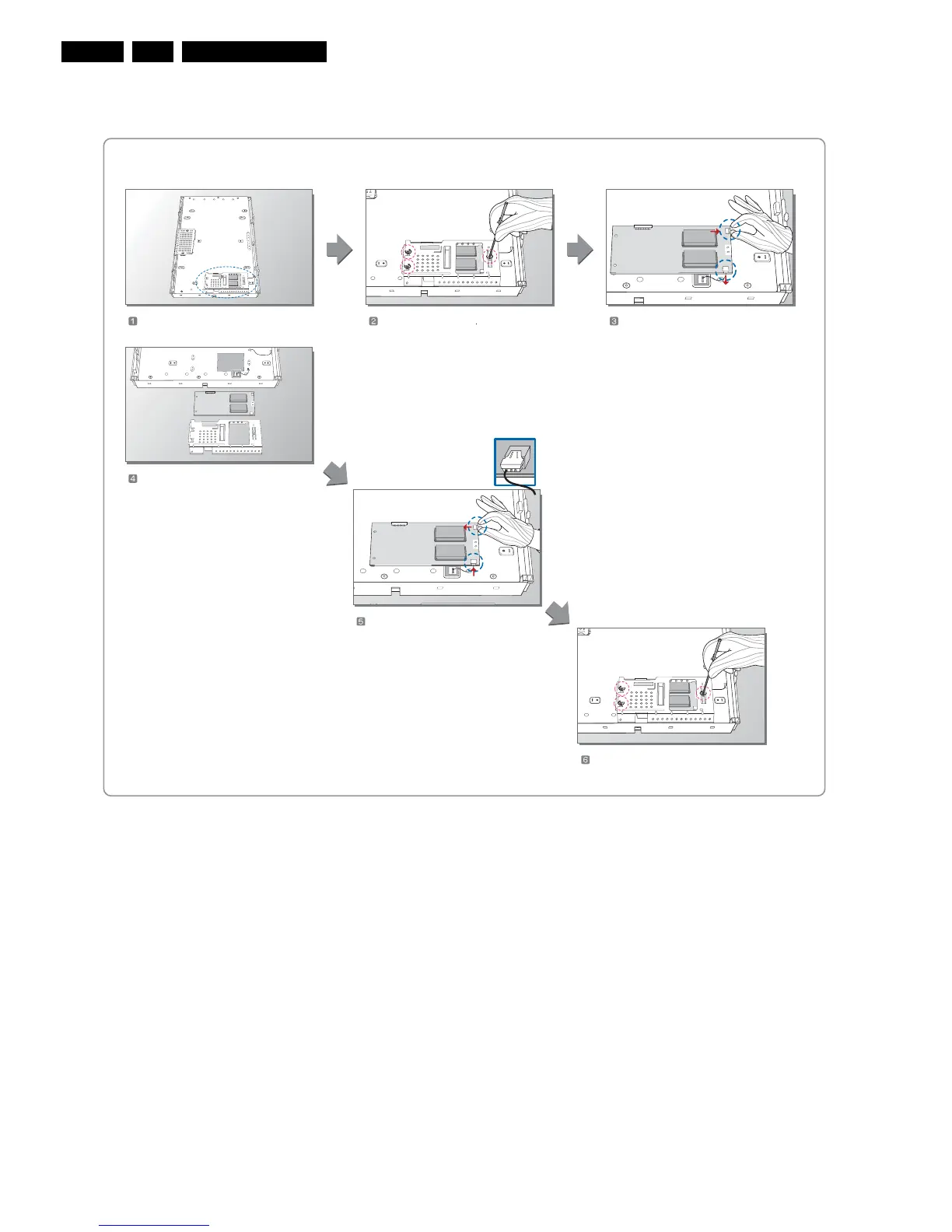

Figure 4-6 Replacement instructions Inverter (master) board
Separate the Inverter.
Attach the Cover Shield and Assemble the Screw(3EA).
Assemble the Wire Connector(2pin).
I_17780_002.eps
160408
MODEL: LC320WXN-SAA1
Prepare the LCM. Separate the Screw(3EA)
Unlock of Connector and
sperate the Wire Connector(2pin).
To Next Page
