Mechanical Instructions
EN 9LCD LPL 2k8 4.
4.3 Model LC320WXN
4.3.1 Control Board (T-CON Board)

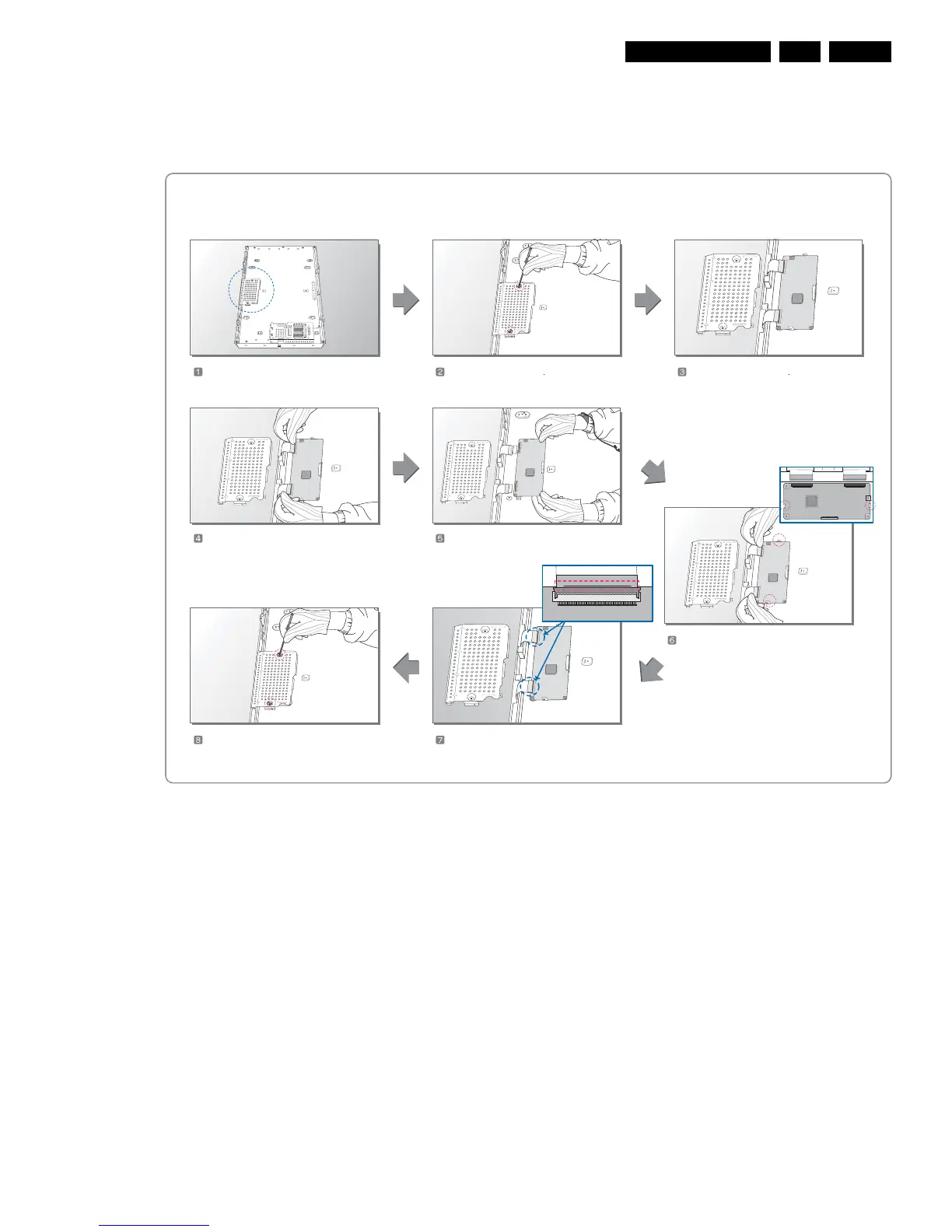

Figure 4-5 Replacement instructions T-CON board
Separate the FFC(60pin).
Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(2EA).
Check the FFC(60pin).
Replace of T-CON Board and
Assemble the FFC(60pin).
* Guide Pin station keeping check.
Prepare the LCM. Separate the Screw(2EA)
Separate the Cover Shield
I_17780_001.eps
160408
MODEL: LC320WXN-SAA1
To Next Page
