Mechanical Instructions
EN 8 LCD LPL 2k84.
4.2.2 Inverter (Master) Board

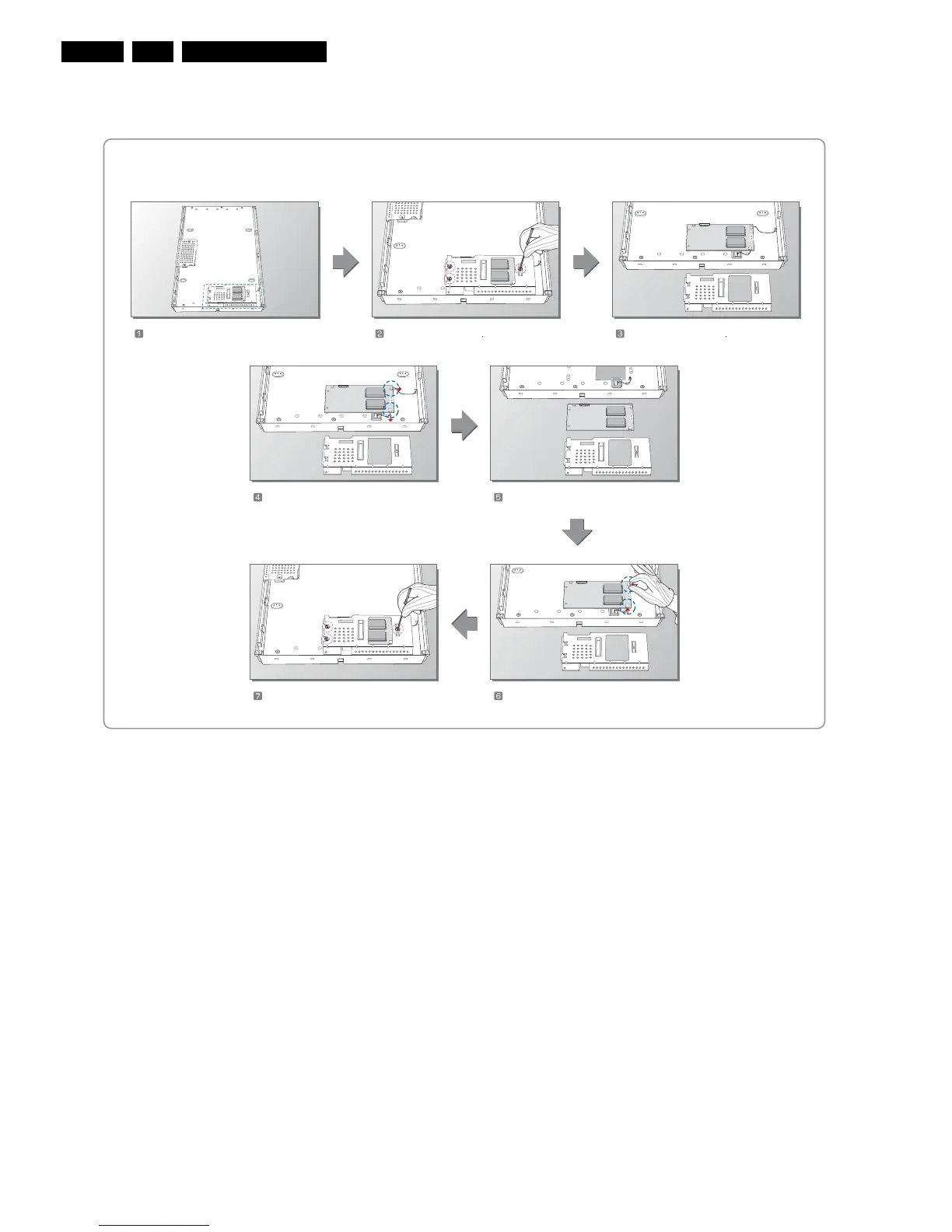

Figure 4-4 Replacement instructions Inverter (master) board
Prepare the LCM. Separate the Screw(3EA) Separate the Cover Shield
I_17780_010.eps
180408
MODEL: LC320WXD-SAB1
Unlock of Connector and
sperate the Wire Connector(2pin).
Separate the Inverter.
Attach the Cover Shield and
Assemble the Screw(3EA).
Assemble the Wire Connector(2pin).
