Mechanical Instructions
EN 7LCD LPL 2k8 4.
4.2 Model LC320WXD
4.2.1 Control Board (T-CON Board)

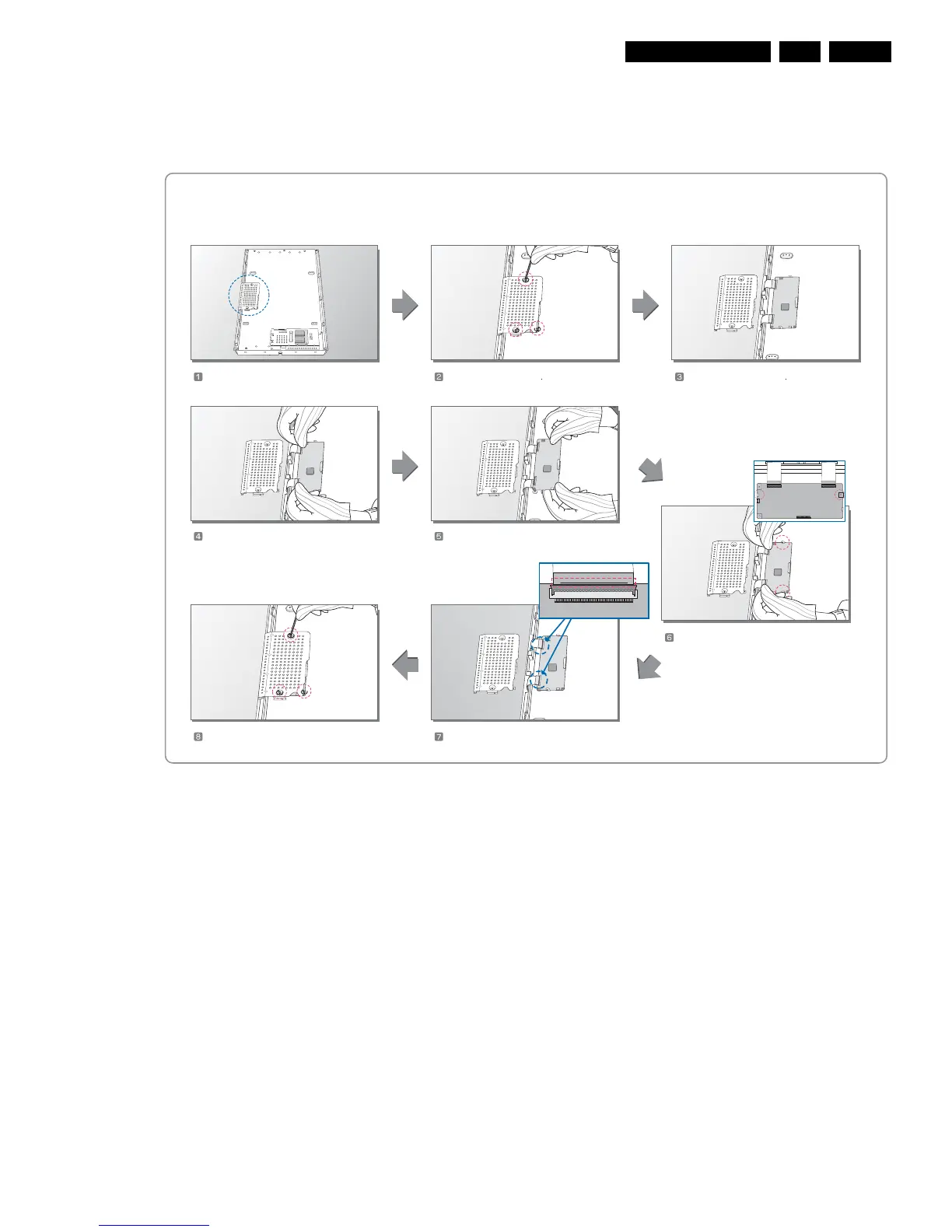

Figure 4-3 Replacement instructions T-CON board
Prepare the LCM. Separate the Screw(3EA)
Separate the Cover Shield
I_17780_009.eps
180408
MODEL: LC320WXD-SAB1
Separate the FFC(60pin). Separate the T-CON Board.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(60pin).
Replace of T-CON Board and
Assemble the FFC(60pin).
* Guide Pin station keeping check.
To Next Page
