Mechanical Instructions
EN 16 LCD LPL 2k84.
4.9 Model LC470WUE
4.9.1 Control Board (T-CON Board)

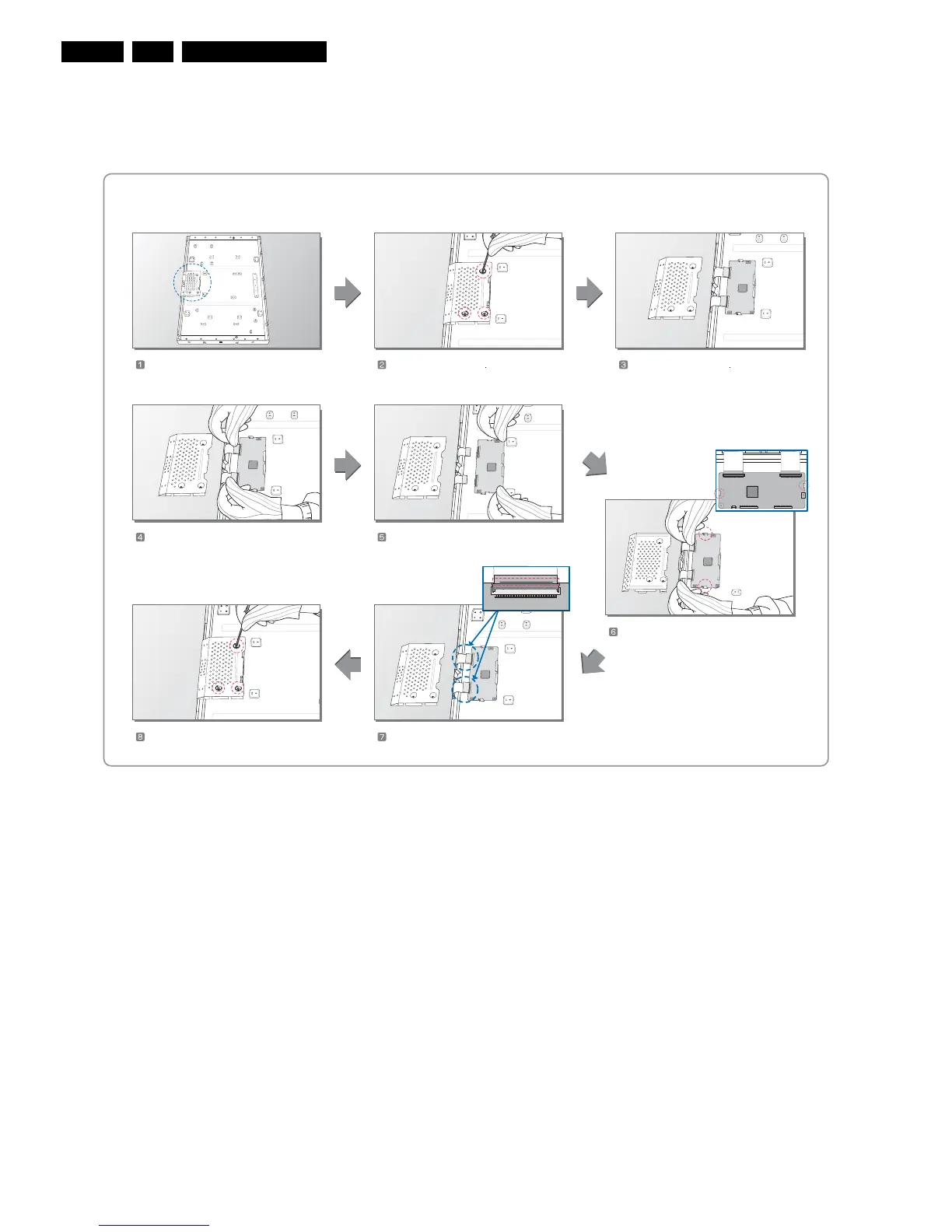

Figure 4-12 Replacement instructions T-CON board
4.9.2 Inverter (Master) Board
These displays have the Inverter Board located on the PSU.
This is a so-called IPB (Integrated Power Board).
Prepare the LCM. Separate the Screw(3EA)
Separate the Cover Shield
I_17780_006.eps
160408
MODEL: LC470WUE-SAB1
Separate the 96pin FFC. Separate the T-CON Board.
Replace of T-CON Board and
Assemble the 96pin FFC.
* Guide Pin station keeping check.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(96pin).
