Mechanical Instructions
EN 17LCD LPL 2k8 4.
4.10 Model LC470WUF
4.10.1 Control Board (T-CON Board)

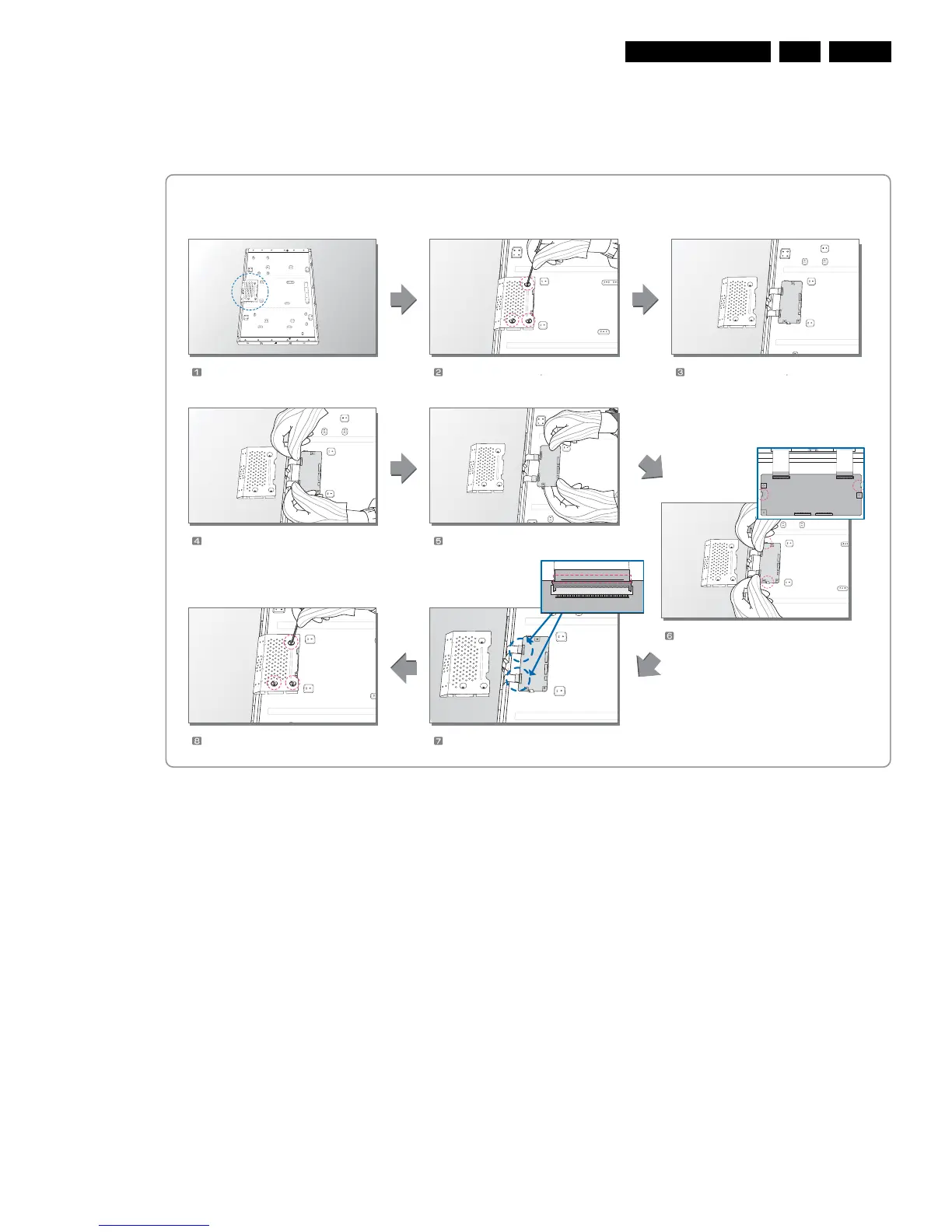

Figure 4-13 Replacement instructions T-CON board
4.10.2 Inverter (Master) Board
These displays have the Inverter Board located on the PSU.
This is a so-called IPB (Integrated Power Board).
Separate the 96pin FFC. Separate the T-CON Board.
Replace of T-CON Board and
Assemble the 96pin FFC.
* Guide Pin station keeping check.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(96pin).
I_17780_007.eps
160408
MODEL: LC470WUF-SAC1
Prepare the LCM. Separate the Screw(3EA) Separate the Cover Shield
To Next Page
