4 - 2 4 - 2

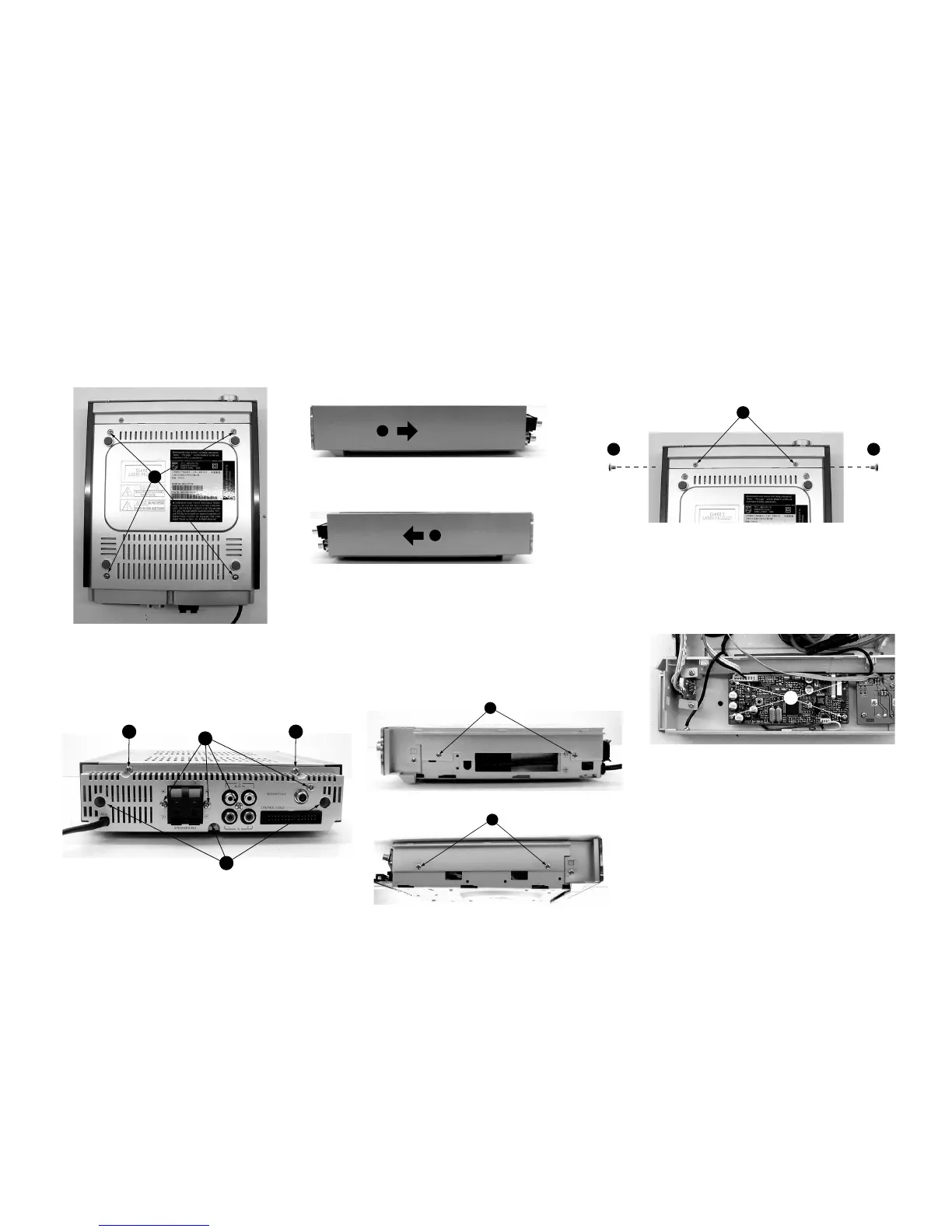

DISASSEMBLY INSTRUCTION - AMP PART
A. Remove Bottom Cover
A1 remove screws M2.5x4 (washer head) - 4 pcs.
C. Remove Side Panel (L & R)
C1 Slide out the Side Panels.
E. Remove Front Cabinet
E1 remove screws MK3x10 - 2 pcs.
E2 remove screws M3x4 - 2 pcs.
F. Remove TFT Module (for MCL707 only)
F1 remove screws ST 2.5x8 - 4 pcs.
A1
B2B2
B1
B3
B. Remove Back Panel
B1 remove screws M3x6 - 3 pcs.
B2 remove screw ST 3x10 - 2 pc.
B3 remove screws ST 3x10 - 4 pcs. (for jacks)
C1
C1
D1
D2
D. Remove Top Cabinet
D1 remove screws M3x6 - 2 pcs.
D2 remove screws M3x6 - 2 pcs.
E2E2
E1
F1
