Philips MCD712 - Small Boards

16:9 ASP=7.5V-8V
4:3 ASP=12V
RGB V/ S=3V
VIDEO V/S=0V
Ẕ⌟⬉
ML
MR
B
ASP12V
G
R
RGB
CVB1
GND
R12 06
100
R12 07
100
R1205
10K
R1204
10K
21
1.R-CHOUT
2.R-CHI N
3.L -CH OUT
4.AUDIO GND
5.BLUE GND
6.L-CHIN
7.BLUE
8.12V
9.GREENGND
10.CLOCK
11.GREEN
12.REM OTE
13.REDGND
14.REM OTE GND
15.RED
16.FS
17.VIDEO GND
18.FS GND
19.VIDEO OUT
20.VIDEO IN
GND
J1201
SCART-101(HUAHUI )
GND
R
G
B
CVB1
1
2
3
4
5
6
7
8
9
10
CN1201
15P
RGB
ML
MR
ASP12V
GND
G
1
B
2
A
3
ENCODER800
ENCODER
1
2
3
CN2 02
VOL BLOCK
ROTA
ROTB
VGND
1
3
2
CN100
RCA-2P
RIN
LIN
1
2
3
CN101
2.0/3p
GND
AUX BLOCK
1
2
3
4
CN1001
vbus
1
D-
2
D+
3
GND
4
Shi eld
5
GND
6
J1001
USB
GND
US+
US-
+5V
C1002
10uF/16V
USB
LED701
LED702
LED 703
R700
220
R701
220
R702
220
1
2
CN7 22
LED BLOCK

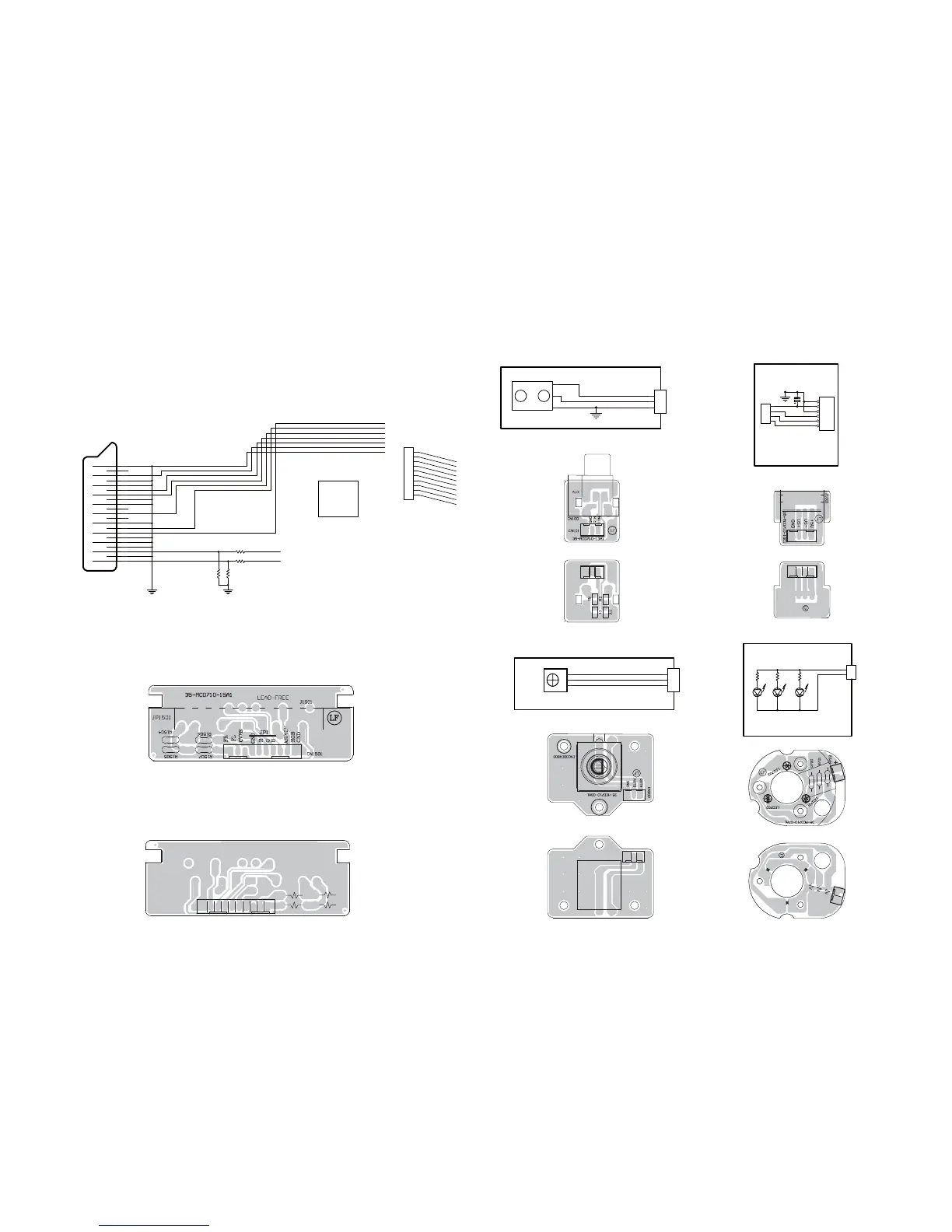

Small Boards -- Circuit & Layout Diagram
10-1
