Philips MX5100VR/00 - Page 143

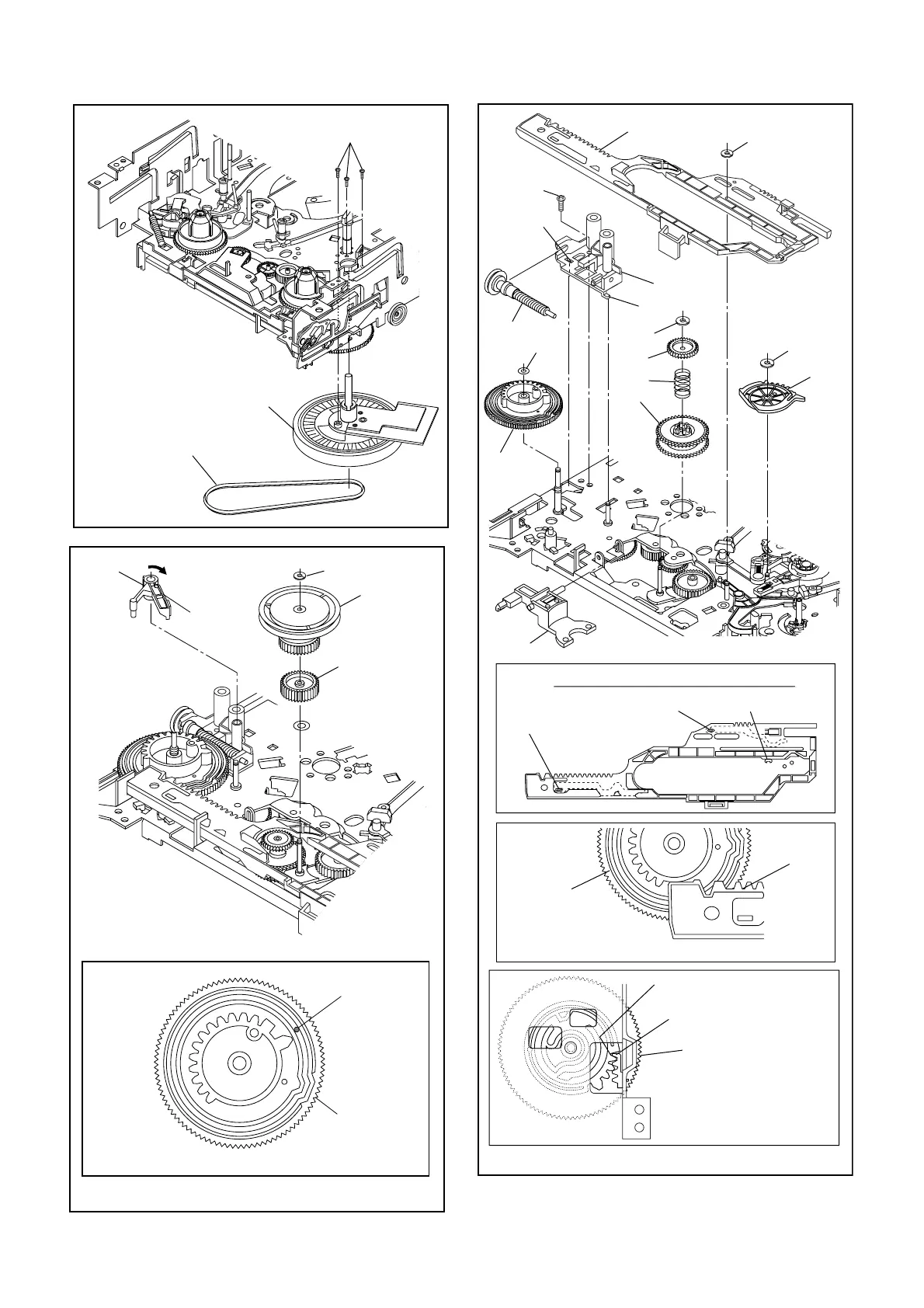

2-4-6 H9520DA
Fig. DM1
1
[19]
(S-8)
Cap Belt
Fig. DM12
[27]
Pin on [22]
Position of pin on [22]
[20]
(C-1)
[21]
(L-6)
[22]
turn
Fig. DM13
Align [26] and [27] as shown.
Bottom View
[27]
Pin of [36]
Pin of [33]
Position of Mode Lever when installed
Pin of [37]
[26]
When reassembling [27],
meet the first groove on
[27] to the first tooth on
[44] as shown.
[27]
Top View
First tooth on [44]
First groove on [27]
[27]
[31]
(C-3)
[26]
(C-4)
[25]
(C-2)
[28]
[29]
[30]
(C-5)
(S-9)
[24]
[23]
(L-7)
(L-8)
