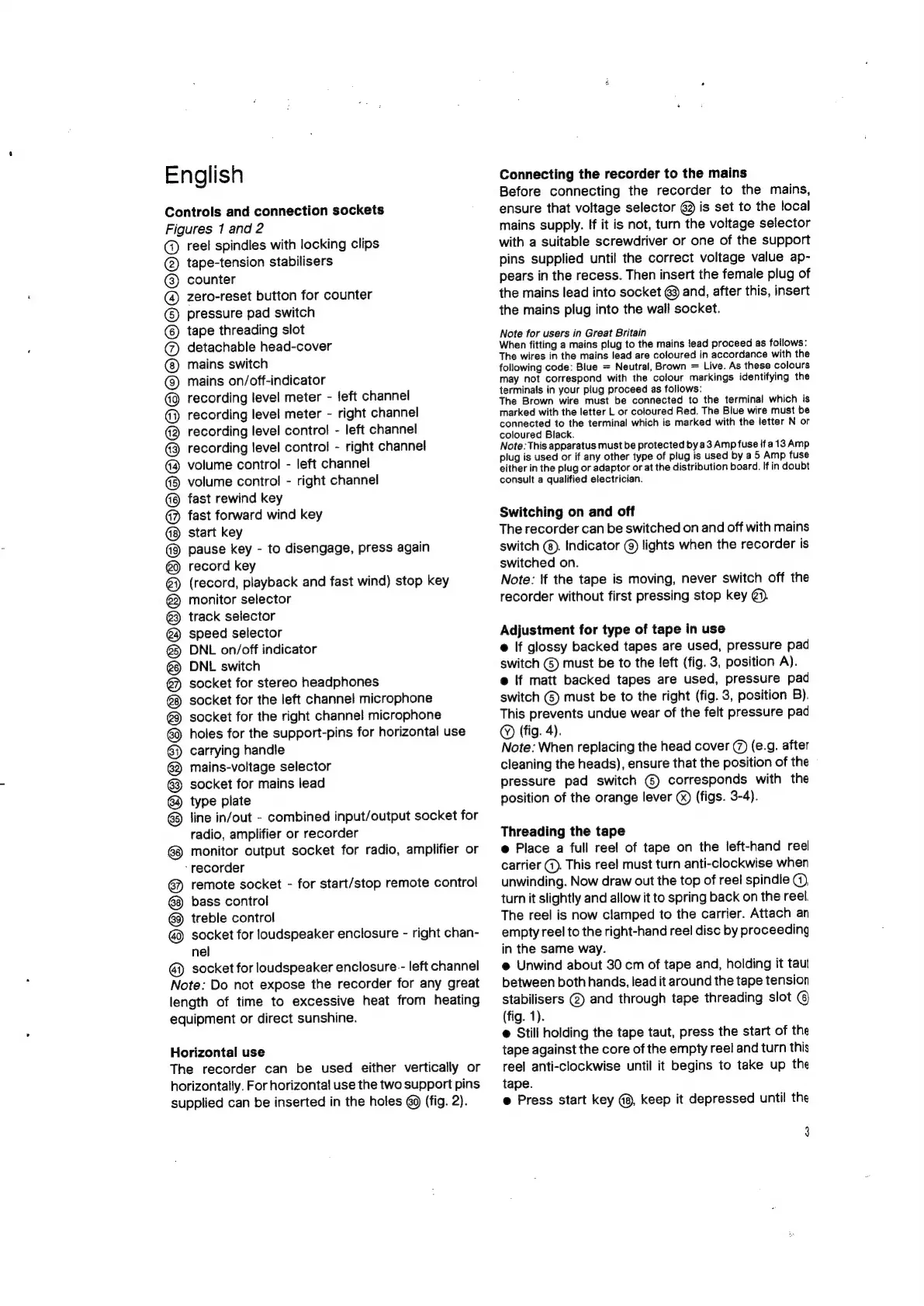

Controls
and
connection
sockets
Figures
1
and
2
@
reel
spindles
with
locking
clips
@
tape-tension
stabilisers
counter
@
zero-reset
button
for
counter
©
pressure
pad
switch
©
tape
threading
slot
@)
detachable
head-cover
mains
switch
mains
on/off-indicator
recording
level
meter
-
left
channel
@)
recording
level
meter
-
right
channel
@
recording
level
control
-
left
channel
@
recording
level
control
-
right
channel
volume
control
-
left
channel
@)
volume
control
-
right
channel
fast
rewind
key
@
fast
forward
wind
key
start
key
pause
key
-
to
disengage,
press
again
record
key
(record,
playback
and
fast
wind)
stop
key
monitor
selector
track
selector
speed
selector
DNL
on/off
indicator
DNL
switch
socket
for
stereo
headphones
socket
for
the
left
channel
microphone
socket
for
the
right
channel
microphone
holes
for
the
support-pins
for
horizontal
use
carrying
handie
mains-voltage
selector
socket
for
mains
lead
type
plate
line
in/out
-
combined
input/output
socket
for
radio,
amplifier
or
recorder
monitor
output
socket
for
radio,
amplifier
or
‘recorder
remote
socket
-
for
start/stop
remote
control
bass
control
treble
control
socket
for
loudspeaker
enclosure
-
right
chan-
nel
socket
for
loudspeaker
enclosure.-
left
channel
Note:
Do
not
expose
the
recorder
for
any
great
length
of
time
to
excessive
heat
from
heating
equipment
or
direct
sunshine.
@)
©
OHOOOHOOOOOHOOOOOHO®
TG)
Horizontal
use
The
recorder
can
be
used
either
vertically
or
horizontally.
For
horizontal
use
the
two
support
pins
supplied
can
be
inserted
in
the
holes
69
(fig.
2).
Connecting
the
recorder
to
the
mains
Before
connecting
the
recorder
to
the
mains,
ensure
that
voltage
selector
@)
is
set
to
the
local
mains
supply.
If
it
is
not,
turn
the
voltage
selector
with
a
suitable
screwdriver
or
one
of
the
support
pins
supplied
until
the
correct
voltage
value
ap-
pears
in
the
recess.
Then
insert
the
female
plug
of
the
mains
lead
into
socket
@3
and,
after
this,
insert
the
mains
plug
into
the
wall
socket.
Note
for
users
in
Great
Britain
When
fitting
a
mains
plug
to
the
mains
lead
proceed
as
follows:
The
wires
in
the
mains
lead
are
coloured
in
accordance
with
the
following
code:
Blue
=
Neutral,
Brown
=
Live.
As
these
colours
may
not
correspond
with
the
colour
markings
identifying
the
terminals
in
your
plug
proceed
as
follows:
The
Brown
wire
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
coloured
Red.
The
Blue
wire
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
N
or
coloured
Black.
Note:
This
apparatus
must
be
protected
by
a3
Amp
fuse
if
a
13
Amp
plug
is
used
or
if
any
other
type
of
plug
is
used
by
a
5
Amp
fuse
either
in
the
plug
or
adaptor
or
at
the
distribution
board.
If
in
doubt
consult
a
qualified
electrician.
Switching
on
and
off
The
recorder
can
be
switched
on
and
off
with
mains
switch
©).
Indicator
@)
lights
when
the
recorder
is
switched
on.
Note:
If
the
tape
is
moving,
never
switch
off
the
recorder
without
first
pressing
stop
key
@).
Adjustment
for
type
of
tape
in
use
@
If
glossy
backed
tapes
are
used,
pressure
pad
switch
©
must
be
to
the
left
(fig.
3,
position
A).
@
|f
matt
backed
tapes
are
used,
pressure
pad
switch
()
must
be
to
the
right
(fig.
3,
position
B).
This
prevents
undue
wear
of
the
felt
pressure
pad
®
(fig.
4).
Note:
When
replacing
the
head
cover
(
(e.g.
after
cleaning
the
heads),
ensure
that
the
position
of
the
pressure
pad
switch
©
corresponds
with
the
position
of
the
orange
lever
(figs.
3-4).
Threading
the
tape
@
Place
a
full
reel
of
tape
on
the
left-hand
reel
carrier
@).
This
reel
must
turn
anti-clockwise
when
unwinding.
Now
draw
out
the
top
of
reel
spindle
©,
turn
it
slightly
and
allow
it
to
spring
back
on
the
reel.
The
reel
is
now
clamped
to
the
carrier.
Attach
an
empty
reel
to
the
right-hand
reel
disc
by
proceeding
in
the
same
way.
@
Unwind
about
30
cm
of
tape
and,
holding
it
taut
between
both
hands,
lead
it
around
the
tape
tension
stabilisers
@
and
through
tape
threading
slot
@
(fig.
1).
@
Still
holding
the
tape
taut,
press
the
start
of
the
tape
against
the
core
of
the
empty
reel
and
turn
this
reel
anti-clockwise
until
it
begins
to
take
up
the
tape.
@
Press
start
key
@,
keep
it
depressed
until
the
3
