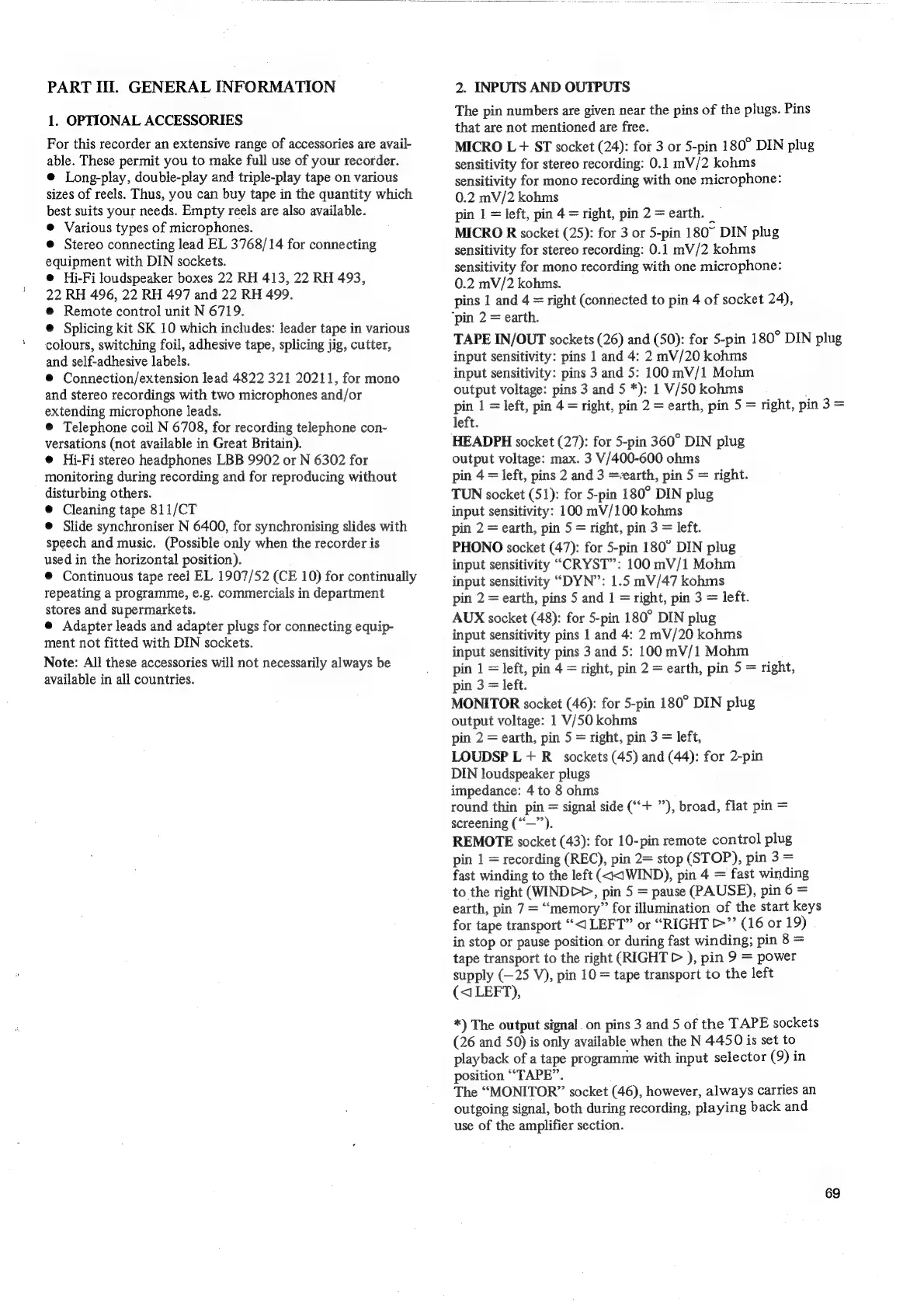

PART
Ill.
GENERAL
INFORMATION
1.
OPTIONAL
ACCESSORIES
For
this
recorder
an
extensive
range
of
accessories
are
avail-
able.
These
permit
you
to
make
full
use
of
your
recorder.
®@
Long-play,
double-play
and
triple-play
tape
on
various
sizes
of
reels.
Thus,
you
can
buy
tape
in
the
quantity
which
best
suits
your
needs.
Empty
reels
are
also
available.
®
Various
types
of
microphones.
@
Stereo
connecting
lead
EL
3768/14
for
connecting
equipment
with
DIN
sockets.
@
Hi-Fi
loudspeaker
boxes
22
RH
413,
22
RH
493,
22
RH
496,
22
RH
497
and
22
RH
499.
e
Remote
control
unit
N
6719.
e@
Splicing
kit
SK
10
which
includes:
leader
tape
in
various
colours,
switching
foil,
adhesive
tape,
splicing
jig,
cutter,
and
self-adhesive
labels.
®
Connection/extension
lead
4822
321
20211,
for
mono
and
stereo
recordings
with
two
microphones
and/or
extending
microphone
leads.
e@
Telephone
coil
N
6708,
for
recording
telephone
con-
versations
(not
available
in
Great
Britain).
@
Hi-Fi
stereo
headphones
LBB
9902
or
N
6302
for
monitoring
during
recording
and
for
reproducing
without
disturbing
others.
@
Cleaning
tape
811/CT
@
Slide
synchroniser
N
6400,
for
synchronising
slides
with
speech
and
music.
(Possible
only
when
the
recorder
is
used
in
the
horizontal
position).
®
Continuous
tape
reel
EL
1907/52
(CE
10)
for
continually
repeating
a
programme,
e.g.
commercials
in
department
stores
and
supermarkets.
@
Adapter
leads
and
adapter
plugs
for
connecting
equip-
ment
not
fitted
with
DIN
sockets.
Note:
All
these
accessories
will
not
necessarily
always
be
available
in
all
countries.
2.
INPUTS
AND
OUTPUTS
The
pin
numbers
are
given
near
the
pins
of
the
plugs.
Pins
that
are
not
mentioned
are
free.
MICRO
L
+
ST
socket
(24):
for
3
or
5-pin
180°
DIN
plug
sensitivity
for
stereo
recording:
0.1
mV/2
kohms
sensitivity
for
mono
recording
with
one
microphone:
0.2
mV/2
kohms
pin
1
=
left,
pin
4
=
right,
pin
2=
earth.
MICRO
R
socket
(25):
for
3
or
5-pin
180°
DIN
plug
sensitivity
for
stereo
recording:
0.1
mV/2
kohms
sensitivity
for
mono
recording
with
one
microphone:
0.2
mV/2
kohms.
pins
1
and
4
=
right
(connected
to
pin
4
of
socket
24),
‘pin
2
=
earth.
TAPE
IN/OUT
sockets
(26)
and
(50):
for
5-pin
180°
DIN
plug
input
sensitivity:
pins
1
and
4:
2
mV/20
kohms
input
sensitivity:
pins
3
and
5:
100
mV/1
Mohm
output
voltage:
pins
3
and
5
*):
1
V/50
kohms
pin
1
=
left,
pin
4
=
right,
pin
2
=
earth,
pin
5
=
right,
pin
3
=
left.
HEADPH
socket
(27):
for
5-pin
360°
DIN
plug
output
voltage:
max.
3
V/400-600
ohms
pin
4
=
left,
pins
2
and
3
=vearth,
pin
5
=
right.
TUN
socket
(51):
for
5-pin
180°
DIN
plug
input
sensitivity:
100
mV/100
kohms
pin
2
=
earth,
pin
5
=
right,
pin
3
=
left.
PHONO
socket
(47):
for
5-pin
180°
DIN
plug
input
sensitivity
“CRYST”:
100
mV/1
Mohm
input
sensitivity
“DYN”:
1.5
mV/47
kohms
pin
2
=
earth,
pins
5
and
1
=
right,
pin
3
=
left.
AUX
socket
(48):
for
5-pin
180°
DIN
plug
input
sensitivity
pins
1
and
4:
2
mV/20
kohms
input
sensitivity
pins
3
and
5:
100
mV/1
Mohm
pin
1
=
left,
pin
4
=
right,
pin
2
=
earth,
pin
5
=
right,
pin
3
=
left.
MONITOR
socket
(46):
for
5-pin
180°
DIN
plug
output
voltage:
1
V/50
kohms
pin
2
=
earth,
pin
5
=
right,
pin
3
=
left,
LOUDSP
L
+
R_
sockets
(45)
and
(44):
for
2-pin
DIN
loudspeaker
plugs
impedance:
4
to
8
ohms
round
thin
pin
=
signal
side
(“+
”),
broad,
flat
pin
=
screening
(“—”’).
REMOTE
socket
(43):
for
10-pin
remote
control
plug
pin
1
=
recording
(REC),
pin
2=
stop
(STOP),
pin
3
=
fast
winding
to
the
left
(WIND),
pin
4
=
fast
winding
to
the
right
(WIND>,
pin
5
=
pause
(PAUSE),
pin
6
=
earth,
pin
7
=
“memory”
for
illumination
of
the
start
keys
for
tape
transport
“<]
LEFT”
or
“RIGHT
&”’
(16
or
19)
in
stop
or
pause
position
or
during
fast
winding;
pin
8
=
tape
transport
to
the
right
(RIGHT
>
),
pin
9
=
power
supply
(—25
V),
pin
10
=
tape
transport
to
the
left
(<1
LEFT),
*)
The
output
signal.
on
pins
3
and
5
of
the
TAPE
sockets
(26
and
50)
is
only
available
when
the
N
4450
is
set
to
playback
of
a
tape
programme
with
input
selector
(9)
in
position
‘““TAPE”.
The
“MONITOR”
socket
(46),
however,
always
carries
an
outgoing
signal,
both
during
recording,
playing
back
and
use
of
the
amplifier
section.
69
