Understanding the Printed Report
2-12 Recording an ECG

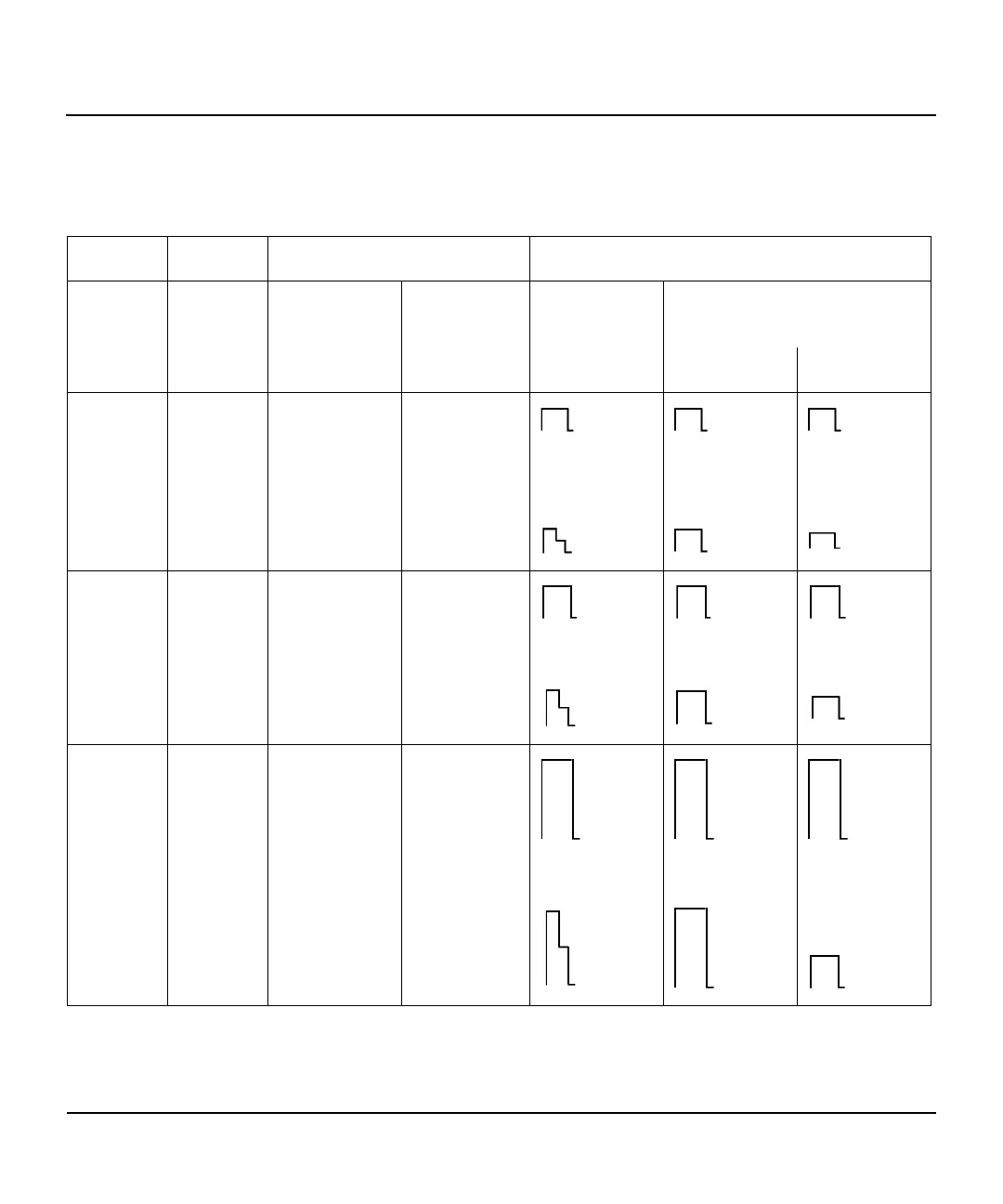

The following table shows how the height of the calibration pulse
indicates ECG sensitivity.
7DEOH&DOLEUDWLRQ6LJQDOV
ECG Size (mm/mV) Calibration Pulse
ECG Size
mm/mV
V Leads
Indicator
Limb Leads
V Leads
(V1 - V6)
Auto Manual
Limb Leads V Leads
5off5 5
5on5 2.5
10 off 10 10
10 on 10 5
20 off 20 20
20 on 20 10
