Philips PM 3266 - 3. SERVICE MANUAL; 3.1. DESCRIPTION OF THE BLOCK DIAGRAM

102
100ms
TIME
BASE
BLOCKED
=H
TIME
BASE
SWEEP
FRONT
MESH
FAST
MESH
150V
ik
75... 100V
75V
90V
30V
50V
20V
OV
COLLECTOR
MESH
COLLIMATOR
3
COLLIMATOR
2
COLLIMATOR
1
FLOOD
GUN
ACCELERATOR
FLOOD
GUN CATHODES

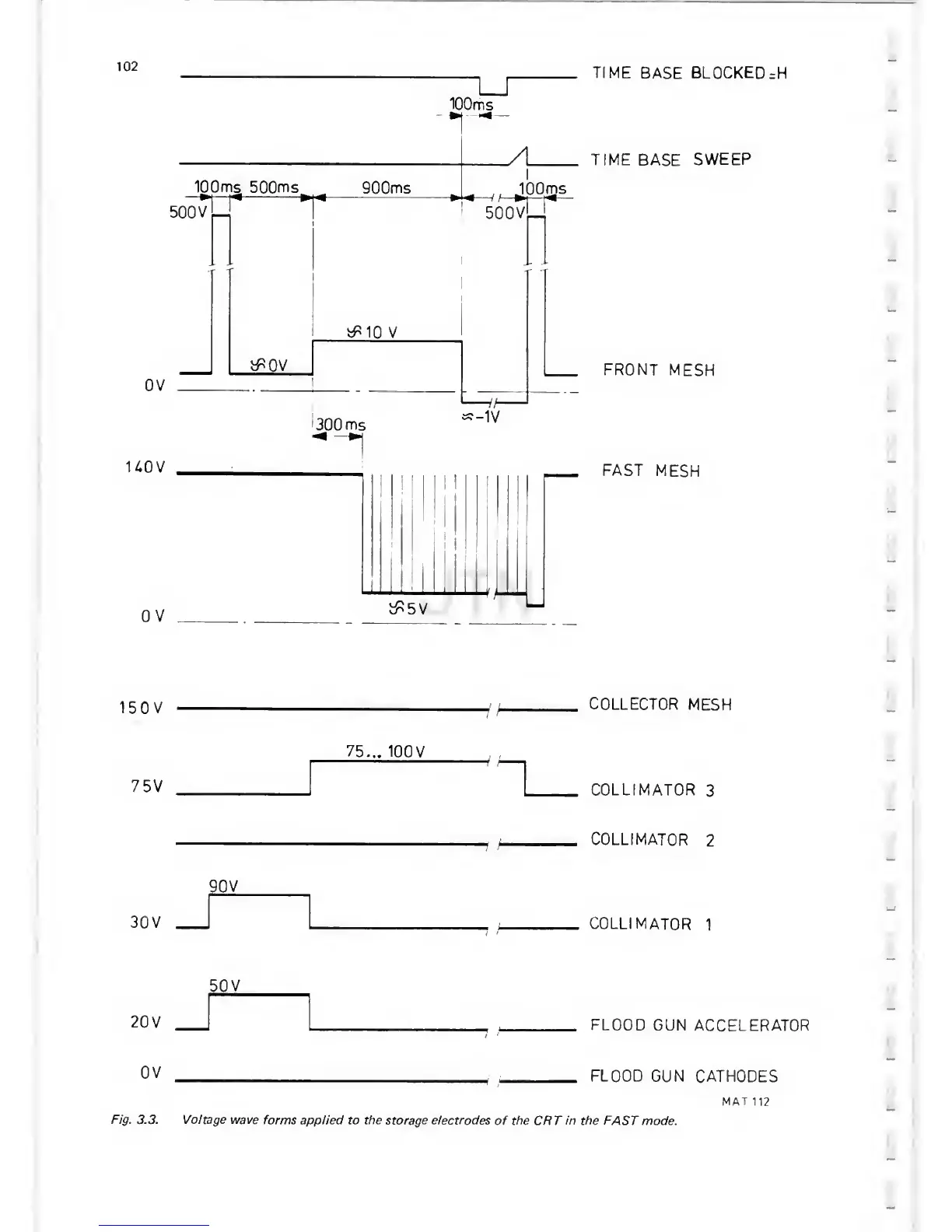

Fig. 3.3. Voltage
wave forms
applied to the storage electrodes
of the CRT In the FAST
mode.
MAT
112
