Philips PM2519 - 5.3. DISMANTLING THE IEC-BUS AND THE GALVANIC SEPARATION (PM 2519;51)

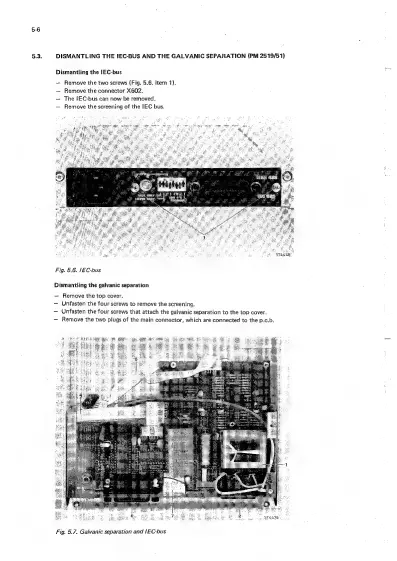

5.3.
DISMANTLING THE IEC-BUS AND THE GALVANIC SEPARATION (PM 2519/51)
Dismantling the [EC-bus
Remove the two screws (Fig. 5.6. item 1).
Remove the connector X602.
The [EC-bus can now be removed.
Remove the screening of the IEC bus.
i
i
Fig. 5.6. 1EC-bus
Dismantling the galvanic separation
— Remove the top cover.
Unfasten the four screws to remove the screening.
Unfasten the four screws that attach the galvanic separation to the top cover.
Remove the two plugs of the main connector, which are connected to the p.c.b.
Fig. 5.7. Galvanic separation and 1EC-bus
