Philips pm2521 - Page 143

r
142
ST 3523

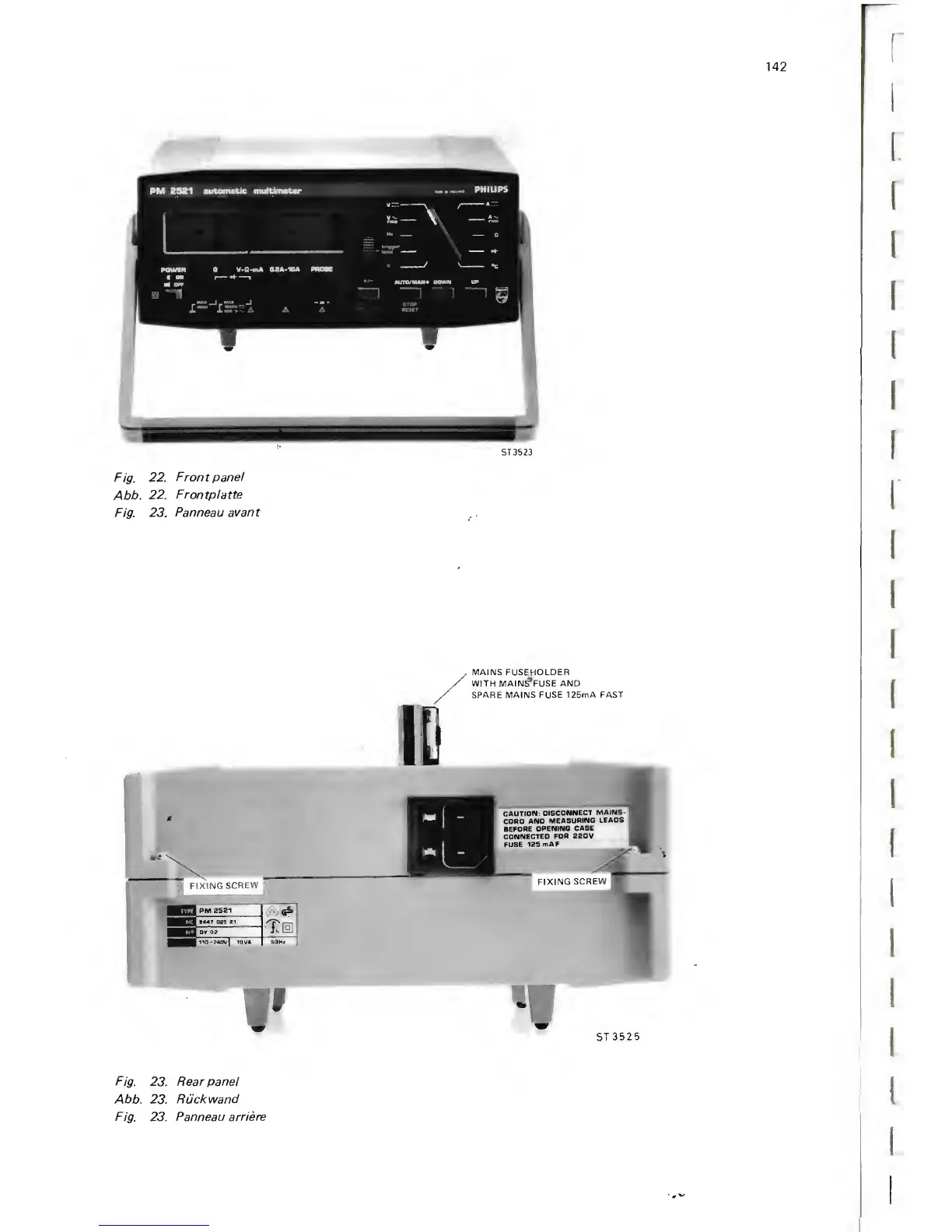

Fig. 22. Front panel
Abb. 22. Frontplatte
Fig. 23. Panneau avant
111
MAINS FUSEHOLDER
WITH MAINS*FUSE AND
SPARE MAINS FUSE 125mA FAST
FIXING SCREW
CAUTION: DISCONNECT MAINS-
CDRD ANO MEASURING I
BEFORE OPENING CASE
CONNECTED FOR 220V
FUSE 125 mAF
FIXING SCREW
I 9447 025 Z1
I 170-P4OW | IOWA 50»i
WAINS-
LEADS
3 .
;E 'j
ST 352 5
Fig. 23. Rear panel
Abb. 23. Ruck wand
Fig. 23. Panneau arriere
