4

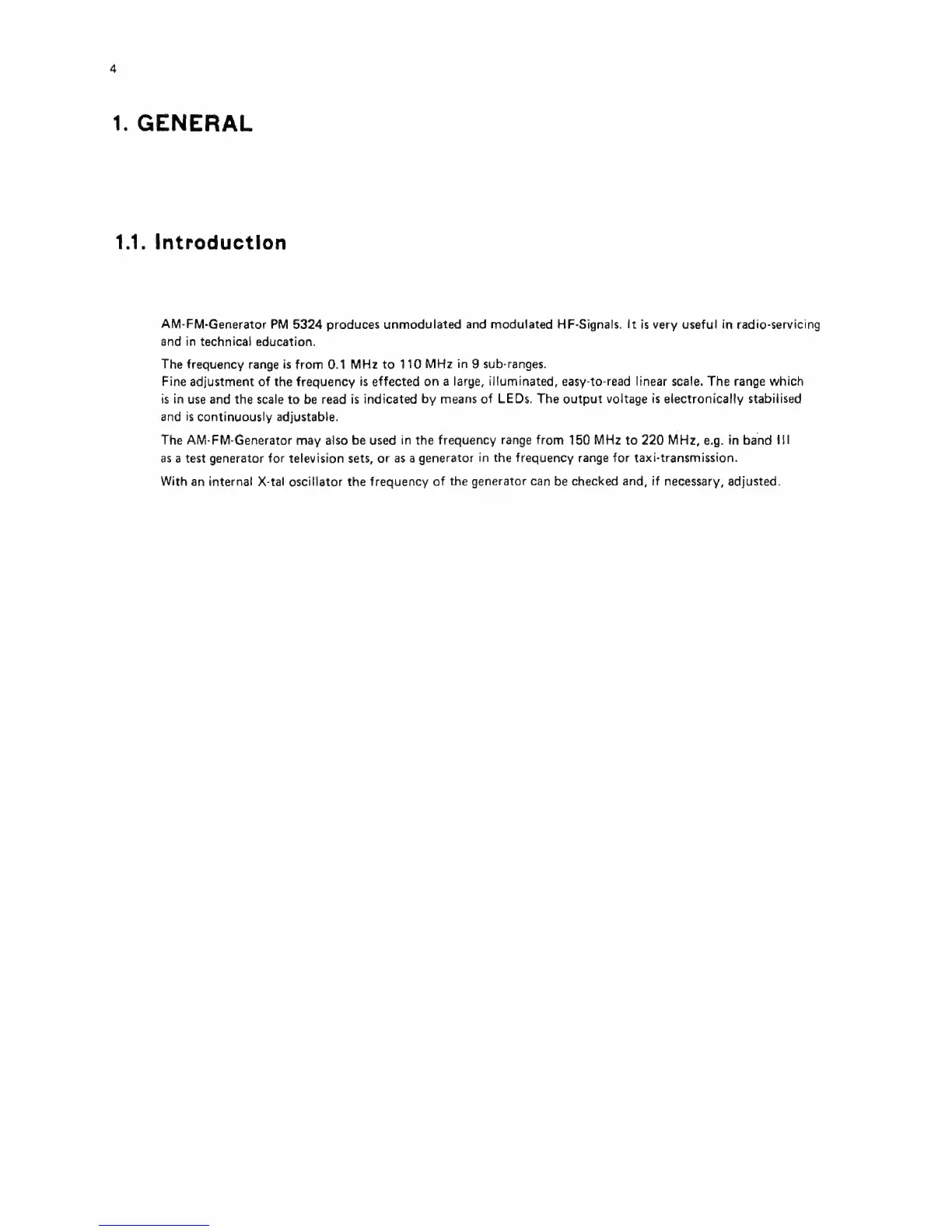

1. GENERAL
1.1. Introduction
AM-FM-Generator PM 5324 produces unmodulated and modulated HF-Signals. It is very useful in radio-servicing
and in technical education.
The frequency range is from 0.1 MHz to 110 MHz in 9 sub-ranges.
Fine adjustment of the frequency is effected on a large, illuminated, easv-to-read linear scale. The range which
is in use and the scale to be read is indicated by means of LEDs. The output voltage is electronically stabilised
and is continuously adjustable.
The AM-FM-Generator may also be used in the frequency range from 150 MHz to 220 MHz, e.g. in band Ill
as a test generator for television sets, or as a generator in the frequency range for taxi-transmission.
With an internal X·tal oscillator the frequency of the generator can be checked and, if necessary, adjusted.
