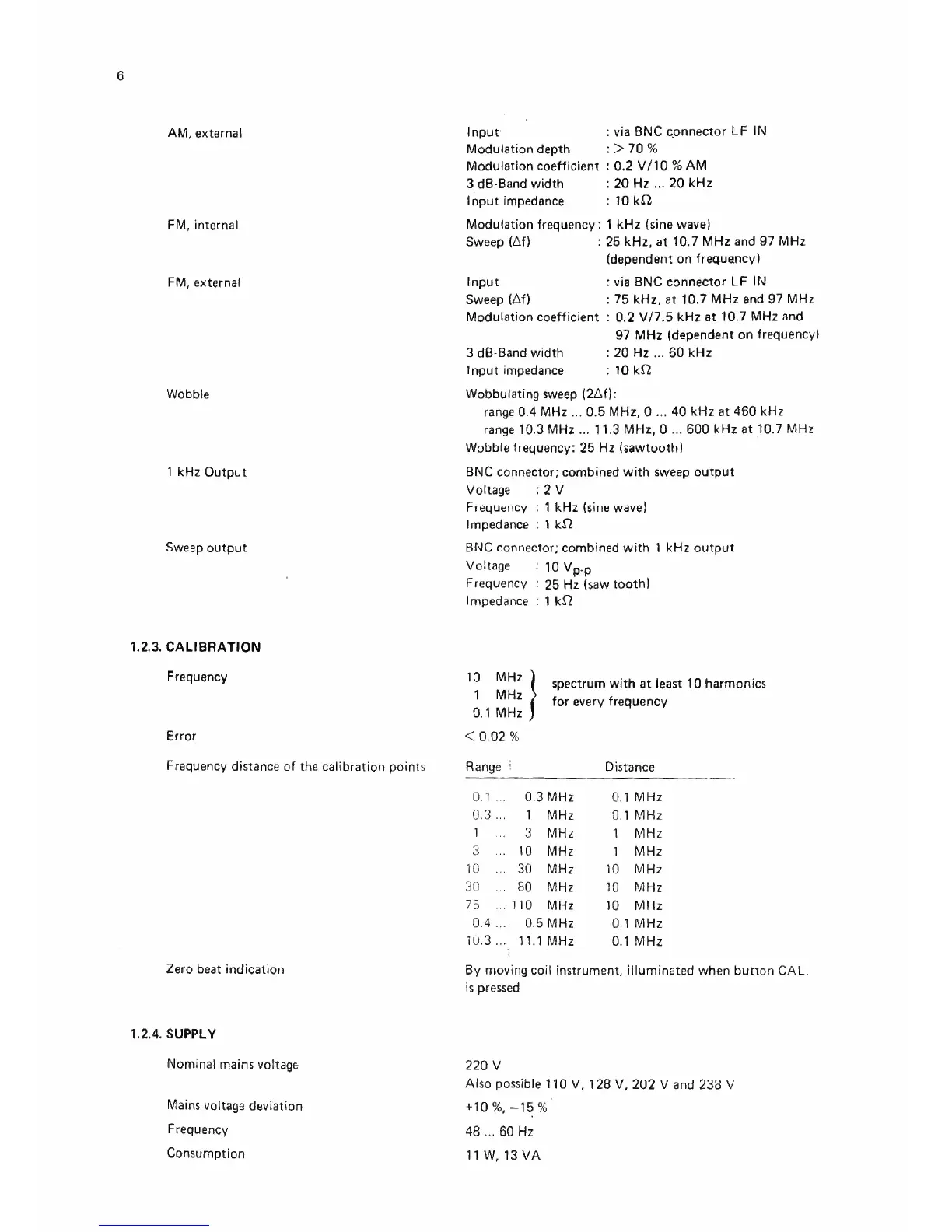

6
AM, external
FM, internal
FM, external
Wobble
1 kHz Output
Sweep output
1.2.3. CALIBRATION
Frequency
Error
Frequency distance of the calibration points
Zero beat indication
1.2.4. SUPPLY
Nominal mains voltage
Mains voltage deviation
Frequency
Consumption
Input· : via BNC connector LF IN
Modulation depth : > 70
%
Modulation coefficient : 0.2 V/10
%
AM
3 dB-Band width : 20 Hz ··- 20 kHz
Input impedance : 10 kn
Modulation frequency: 1 kHz (sine wave)
Sweep (Llf) : 25 kHz, at 10.7 MHz and 97 MHz
(dependent on freque.ncy)
Input : via BNC connector LF IN
Sweep (ll.t) : 75 kHz, at 10.7 MHz and 97 MHz
Modulation coefficient : 0.2 V/7.5 kHz at 10.7 MHz and
97 MHz (dependent on frequency)
: 20 Hz ·-· 60 kHz
: 10 kn
3
dB-Band width
Input impedance
Wobbulating sweep (2tif):
range 0.4 MHz 0.5 MHz, 0 ... 40 kHz at 450 kHz
range 10.3 MHz 11.3 MHz, 0 ... 600 kHz at rn.7 MHz
Wobble frequency: 25 Hz (sawtooth)
BNC connector; combined with sweep output
Voltage : 2 V
Frequency :
1
kHz (sine wave)
Impedance :
1
kD
BNC connector; combined with 1 kHz output
Voltage : 10 Vp-p
Frequency : 25 Hz (saw
tooth]
Impedance :
1
kD
10 MHz }
1 MHz
0.1 MHz
<0.02
%
spectrum with at least 10 harmonics
for every frequency
Range :
Distance
0.1 ...
0.3 MHz
0.1 MHz
0.3 ...
1
MHz
0.1
MHz
3
MHz 1
MHz
3
...
10
MHz 1
MHz
10
30 MHz 10 MHz
30
... 80
MHz 10 MHz
75
... 110
MHz
10
MHz
0.4 ....
0.5 MHz
0. 1
MHz
10.3 ...
J
11.1 MHz
'
0.1 MHz
By moving coil instrument, illuminated when button CAL.
is pressed
220
v
Also possible 110 V, 128 V, 202 V and 233 V
+10
%,
-15
%
48 ... 60 Hz
11W,13VA
