FC6404/01/F/A /31/F/A
5-11
Hand
Unit
Stick
Unit
M
Low/
High
On/Off Brush
Motor
M
On/Off Suction
Motor
LED
Charging and
Discharging
Adaptor
Input
100-240V AC
DC Jack
Fuse
Batteries
NTC

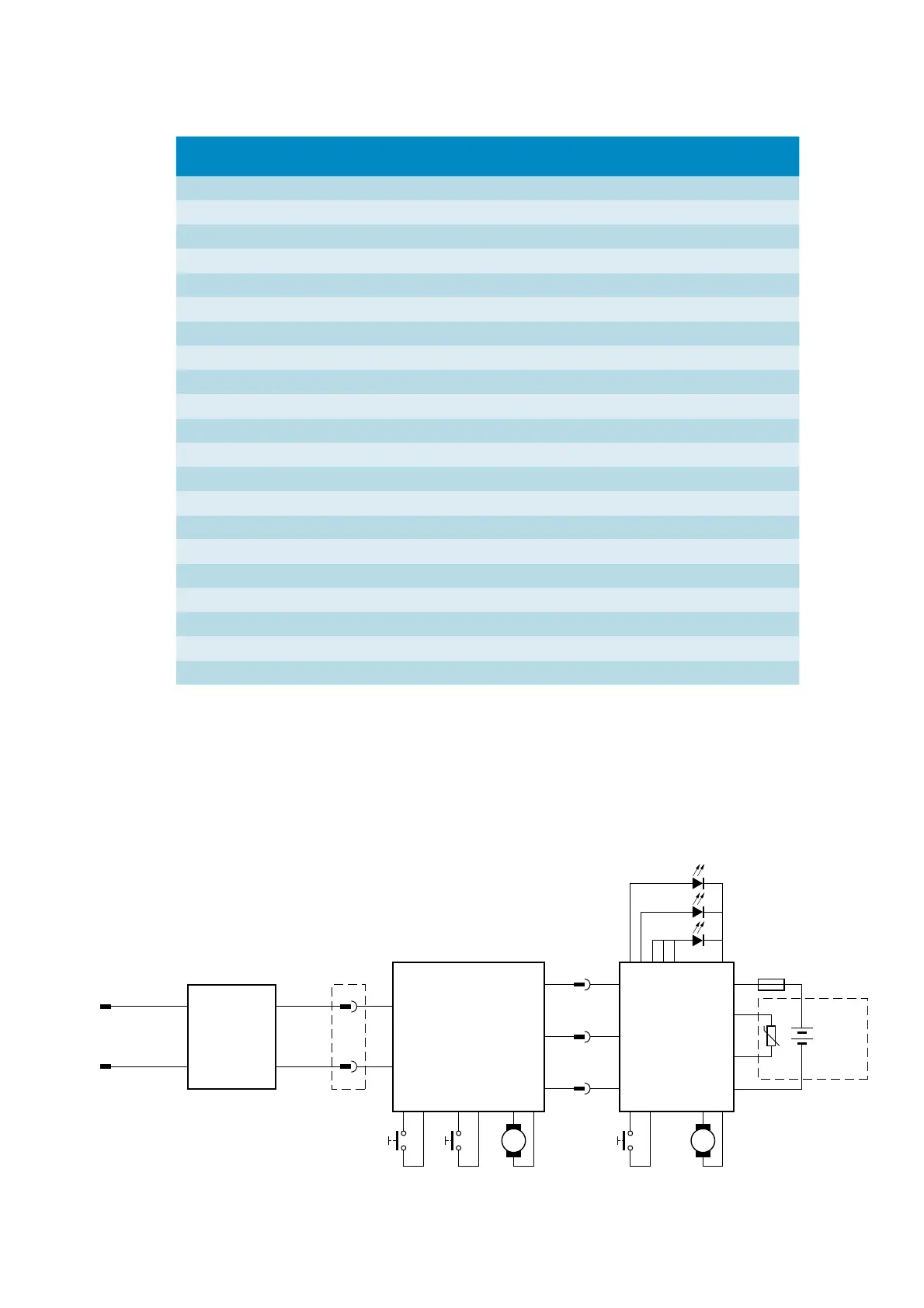

Parts list
Circuit diagram
Pos Service code Description Remark
1 4322 006 26611 Adaptor F 18 V Li-Ion Euro plug
4322 006 26621 Adaptor F 18 V Li-Ion KR plug
3000 015 74791 Adaptor F 18 V Li-Ion TW plug
2 4322 004 94361 Freudenberg lter
3 3000 015 74681 Cycloon assy F Deep Turquoise 61264
4 4322 005 38591 Dust separator assy F
5 3000 015 74751 Dustbin assy F
6 3000 015 74811 Combined acc. Hawaii 80231
7 4322 004 27111 Flamingo brush
8 3000 015 74821 Wall mount assy with packing Deep Black 80231
9 9965 100 78578 Set of 2 small rollerwheels
10 9965 100 78579 Fixation bolt
11 3000 034 46941 * LG HD1 Battery pack 18 V Li-Ion (Duo)
12 3000 034 46981 * PCBA LG HD1 18 V Li-Ion (Duo)
13 4322 006 95131 Motor Assy with packing 18 & 25 V
14 9965 100 79457 Set of 2 big wheels incl. circlips
15 4322 005 38621 Water dispencer 30 F Deep Turquoise 61264 Europe
4322 005 38661 Water dispencer 24 F D. Yellow 000076 KR, TW
16 4322 004 94312 Pad Europe
4322 004 27471 Soft Micro pad KR, TW
17 4322 005 38641 Mop assy F
* In case of repair of one of the components PCBA and Battery should be replaced both together.
