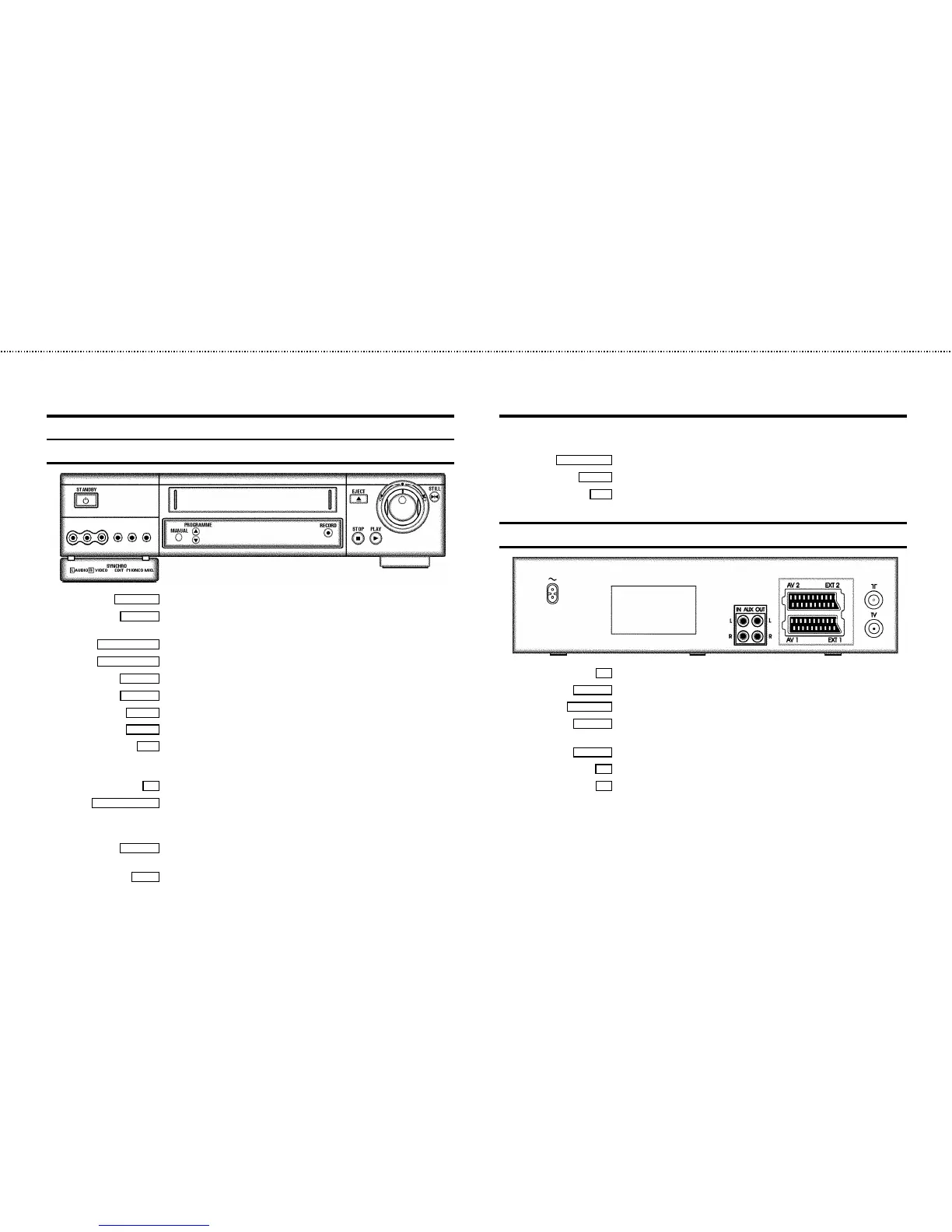

Front of the set
STANDBY m Standby : To switch off, interrupt a function, interrupt a programmed recording (TIMER)
MANUAL
Manual sound control : To switch between automatic sound control and manual sound
control
PROGRAMME A
Programme number up: To select the next programme number
PROGRAMME B
Programme number down: To select the previous programme number
RECORD n
Record: To record the programme selected
EJECT J
Eject: To eject a cassette
STOP h
Pause/Stop: To stop the tape, except during programmed recording (TIMER)
PLAY G
Playback : To play a recorded cassette
o
Rotary control: Turn left: during STOP and STANDBY: rewind, during PLAYBACK: reverse
scanning
Turn right: during STOP and STANDBY: wind, during PLAYBACK: forward scanning
}
JOG: During STILL picture, select single picture with the inner dial (jog)
STILL/JOG ON R
Still picture: To stop the tape and show a still picture
Behind the flap at the lefthand corner on the front:
L AUDIO R
Audio input socket left/right : To connect a camera recorder or video recorder (programme
number ’
E3’)
VIDEO
Video input socket : To connect a camera recorder or video recorder (’E3’)
SYNCHRO EDIT
EDIT input socket : To connect a suitable camera recorder
PHONES
Headphones socket: To connect headphones
MIC.
Microphone input socket: To connect a microphone for dubbing (programme number
’
MIC’)
Back of the set
4 Mains socket: To connect the mains cable
AUX IN L R
Audio input socket, left/right : To connect a HiFi-set (programme number ’AUX’)
AUX OUT L R
Audio output socket, left/right : To connect a HiFi-set
EXT.2 AV 2
Scart socket 2: To connect a satellite receiver, decoder, video recorder, etc. (programme
number ’
E2’)
EXT.1 AV 1
Scart socket 1: To connect the TV set (programme number ’E1’)
2
Aerial input socket: To connect the aerial cable
3
Aerial output socket: To connect the TV set
&
