Philips WAC700/05 - Installation: PC and Appliance Connections; Connecting to Your PC; Connecting Additional Appliances

20
English
Installation
AUX
IN
R L
Helpful hints:
– If the connected device has only a single audio
out terminal, connect it to the AUX IN left terminal.
Alternatively, you can use a “single to double” cinch
cable, but the output sound still remain mono.
– Always refer to the owner’s manual of other
equipment for complete connection.
Station

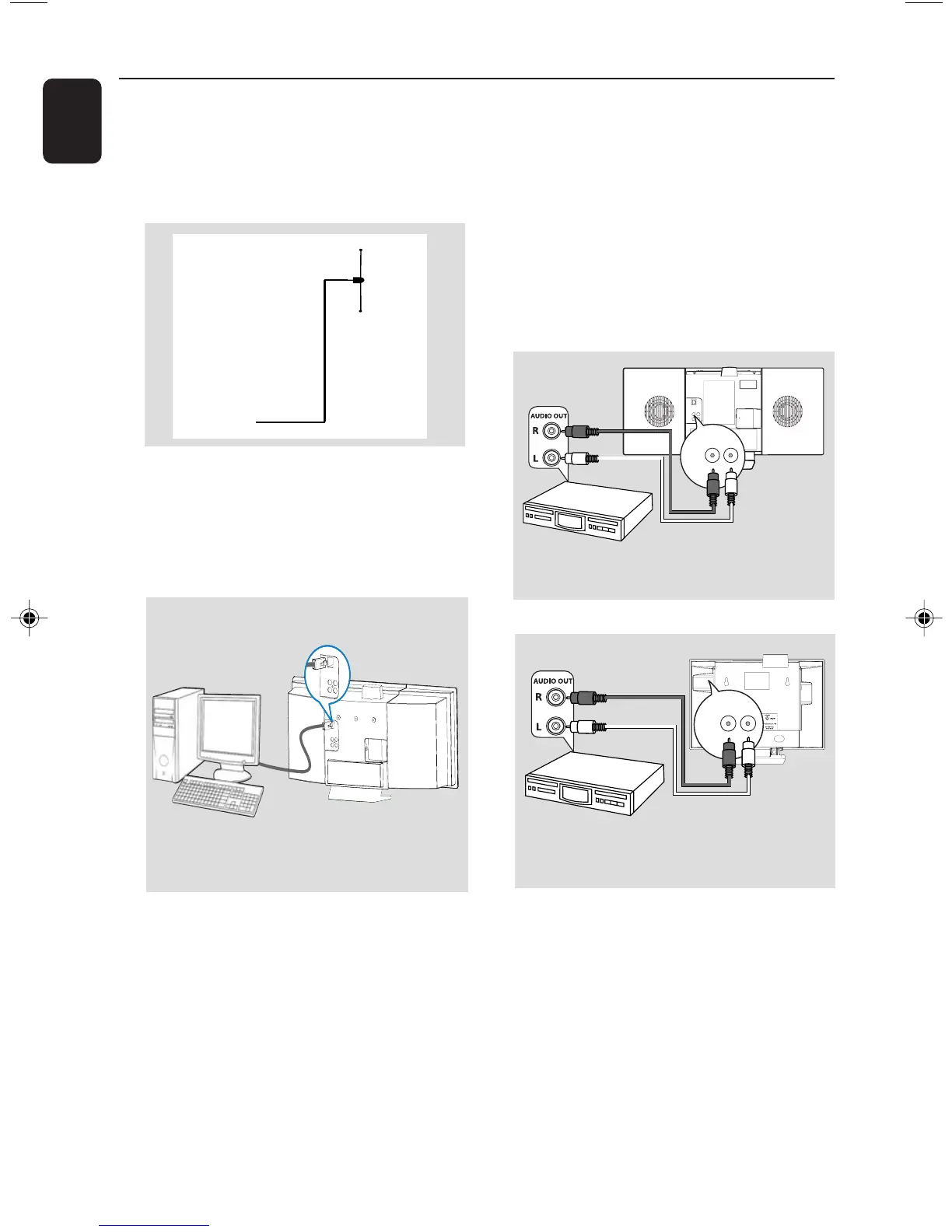

C Connecting an additional appliance
It is possible to use an additional appliance, e.g.
TV, VCR, Laser Disc player, DVD player with the
Center or Station.
1 Insert the red plug of the red/white audio cables
(not supplied) to the red socket AUX IN R and
the white plug to the white socket AUX IN L.
2 Connect the other end of the audio cables to
the AUDIO OUT terminals of the additional
appliance
Center
AUX
IN
R
L
R
L
LINE
OUT
AUX
IN
R
L
R
L
LINE
OUT
Center
B Connecting to your PC
● Connect the supplied Ethernet cable to Center’s
ETHERNET and your computer’s Ethernet
port. For details, see the manual Connect to
your PC
3 Extend the extension line and move it in
different positions for optimal reception (as far
away as possible from the TV, VCR or other
radiation sources)
4 Fix the extension line’s end to the ceiling
ETHERNET
75 FM ANTENNA
VOLTAGE
SELECTOR
NOT FOR ALL
VERSIONS
AUX
IN
R L
R L
LINE
OUT
AUX
IN
R L
