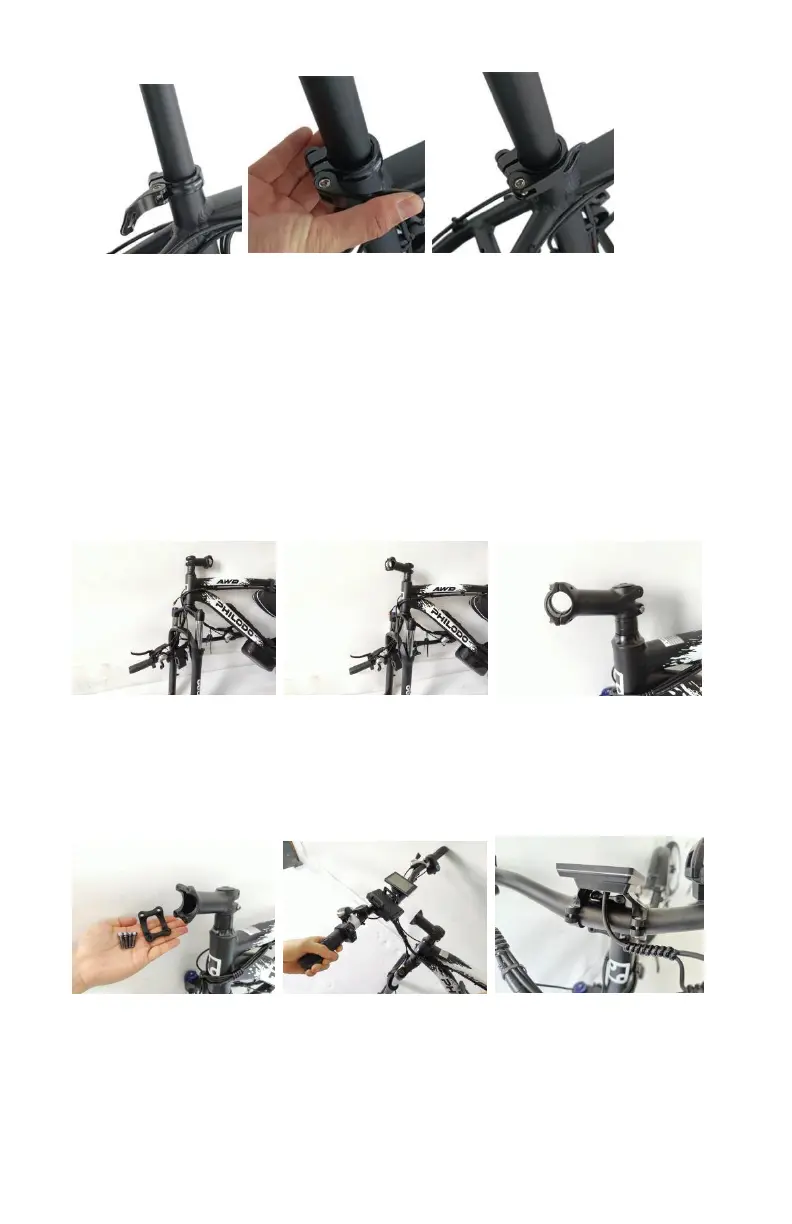

1. Open the quick release lever. Insert the seat post into the seat
tube.
2. Adjust the height of the seat. Do not raise the seatpost beyond
the minimum insertion marking on the seat post.
3. Tighten the nut on the quick release until the lever becomes
firm to close. Close the quick release lever by your palm or finger.
Handlebar
1. Turn the stem to the front. Make sure the front fork brace is at
the front of the bike, not at the back.
2. Remove the faceplate of the stem.
3. Take care to note that the cables should run cleanly from the
handlebar. They should not be twisted. Don't remove or detach
the cables.
4. Insert the handlebar then reattach the faceplate of the stem.
