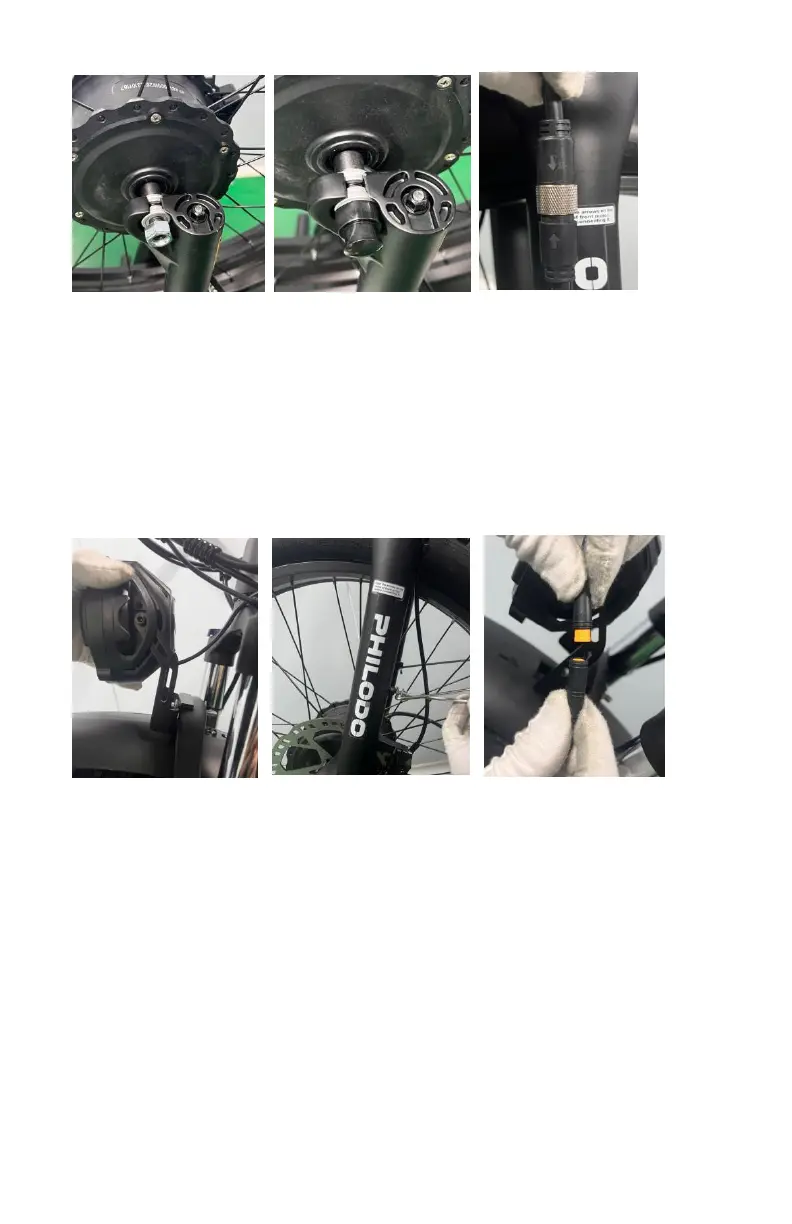

5. Align and insert the wires in the direction of the arrow. Tighten
the screw on the wire.
6. The disc rotor should not touch the brake pads. Roll the front
wheel. If the disc rotor makes a metal friction sound, you need to
check if the front wheel is installed correctly.
Headlight
1. Make sure the front fork brace is at the front of the bike, not at
the back.
2. Remove the bolt and the nut on the front fork brace. Place the
headlight and the front fender at a right position. Tighten the bolt
and the nut. The headlight can be adjusted up and down to
change the illumination angle.
3. Fix the bracket of the front fender to the front fork.
4. Align the arrows on the cable of the headlight. Then connect it.
5. The horn is integrated into the headlight.
