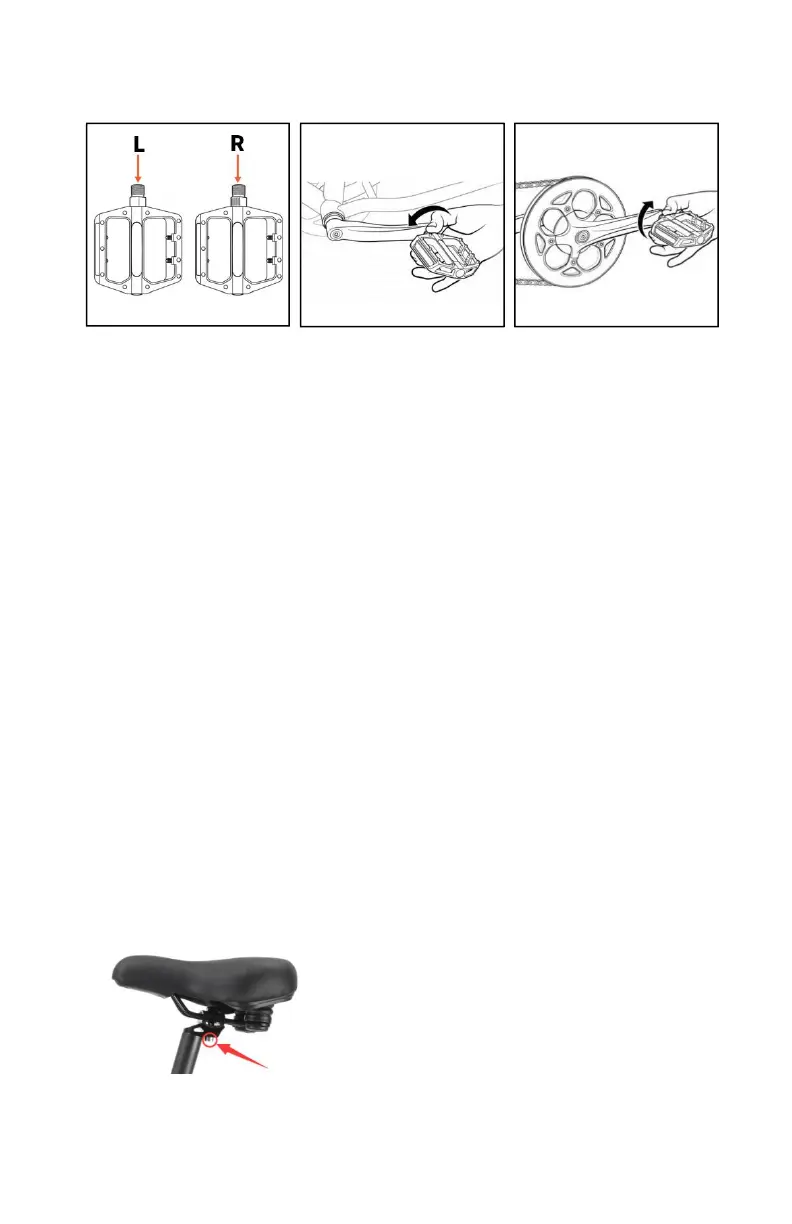

Pedals
1. It is important to note that pedals are sided. Remember
this is always from the perspective of the rider. Locate the
left hand side/ right hand side pedal, which is marked "L"
and "R".
2. The thread on the left hand pedal is reversed. So tighten
it counter-clockwise. Install the left hand pedal into the left
crank arm gently by hand. Then tighten the pedal by a 15mm
wrench.
3. The right hand pedal has a normal thread. So tighten it
clockwise. Install the right hand pedal into the right crank
arm gently by hand. Then tighten the pedal by a 15mm
wrench.
Adjusting the Seat Position and Angle
To change the angle and horizontal position of the seat:
1. Use a 6 mm Allen wrench to loosen the seat adjustment
bolt on the clamp positioned underneath the seat, above the
rear wheel. Do not remove the bolt fully.
2. Move the seat backward or forward to adjust the angle. A
seat position horizontal to flat ground is desirable for most
riders.
