Symbol Status and function Symbol Status and function
On: Day and charging
LVD
Flash with °C: PWM due to OTP
Night
Load over current
Current Value

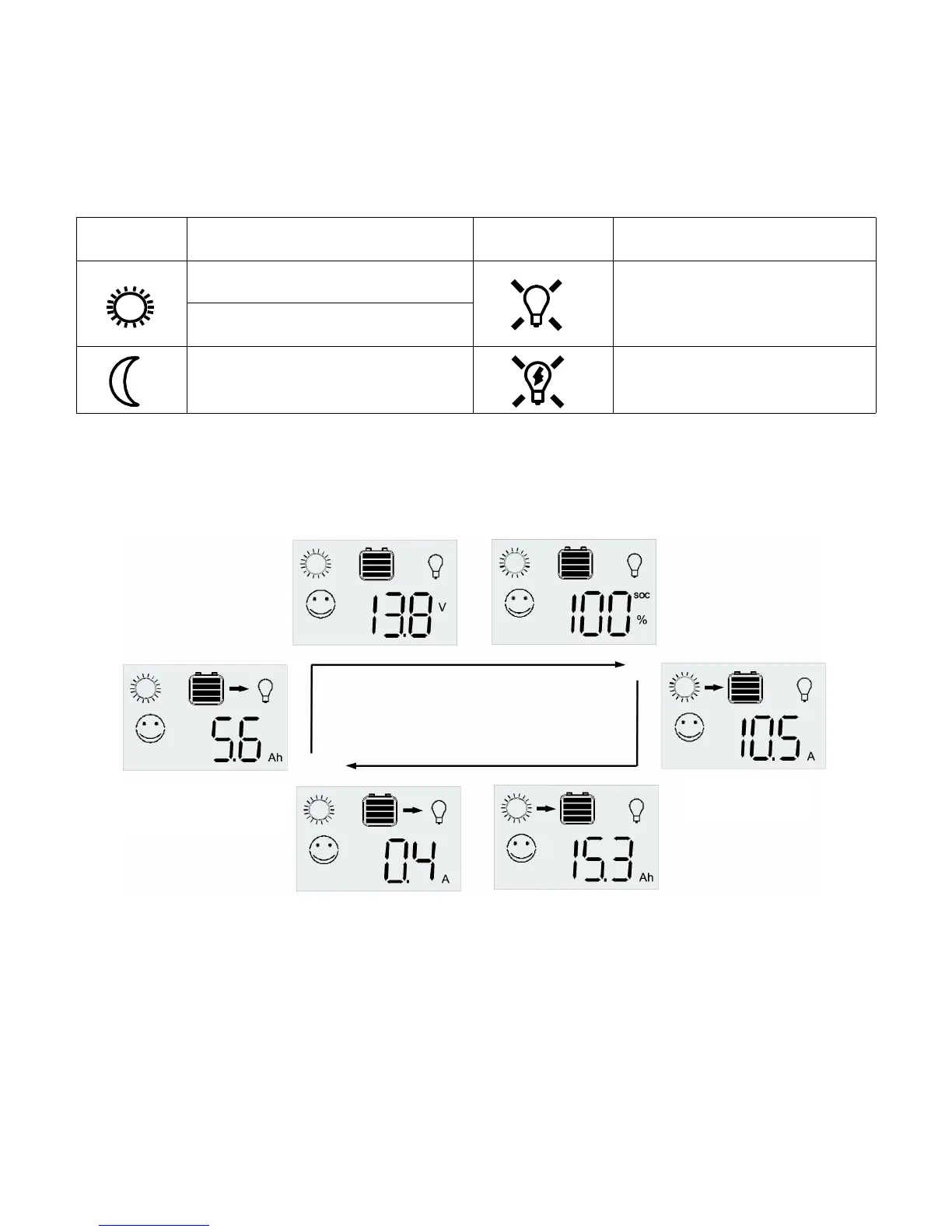

The LCD will scroll the current values below after power up. "SET" ( )✔ button can stop scrolling,
pressing "DOWN" or "UP" button proceeds with scrolling the values.
Battery voltage SOC
Load current Panel ampere-hours
Charge state and acoustic signals
The percentage corresponds to the available energy until Low Voltage Disconnect with respect
to a fully charged battery. A change in the state of charge (SOC) to a lower status is indicated by
27
Load ampere-hours
Panel current
To Next Page
