I/O mapping
107967_en_01 PHOENIX CONTACT 8/12
• In step 5, the switching outputs can be configured. If
external errors, for example, influence the transmission
negatively, the switching output may trigger a warning.

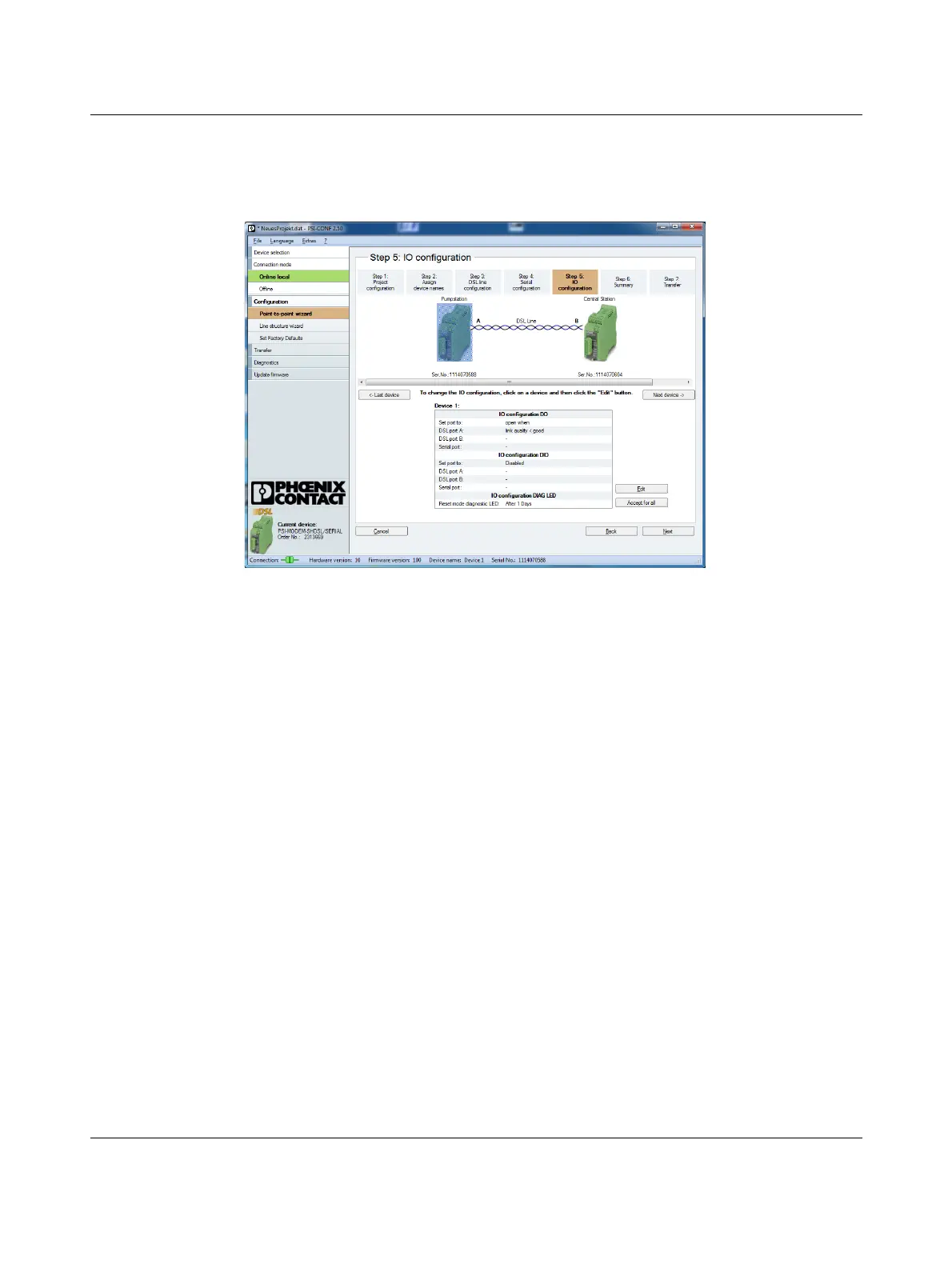

Figure 9 Configuring the switching outputs
