I/O mapping
107967_en_01 PHOENIX CONTACT 7/12
In step 4, the serial interface can be configured. Select
the following values for the two SHDSL extenders:
Interface type: RS-485
–Parity: Even
Baud rate (bps): 19200
Stop bits: 1
–Data bits: 8
Click “Accept settings for all devices”.

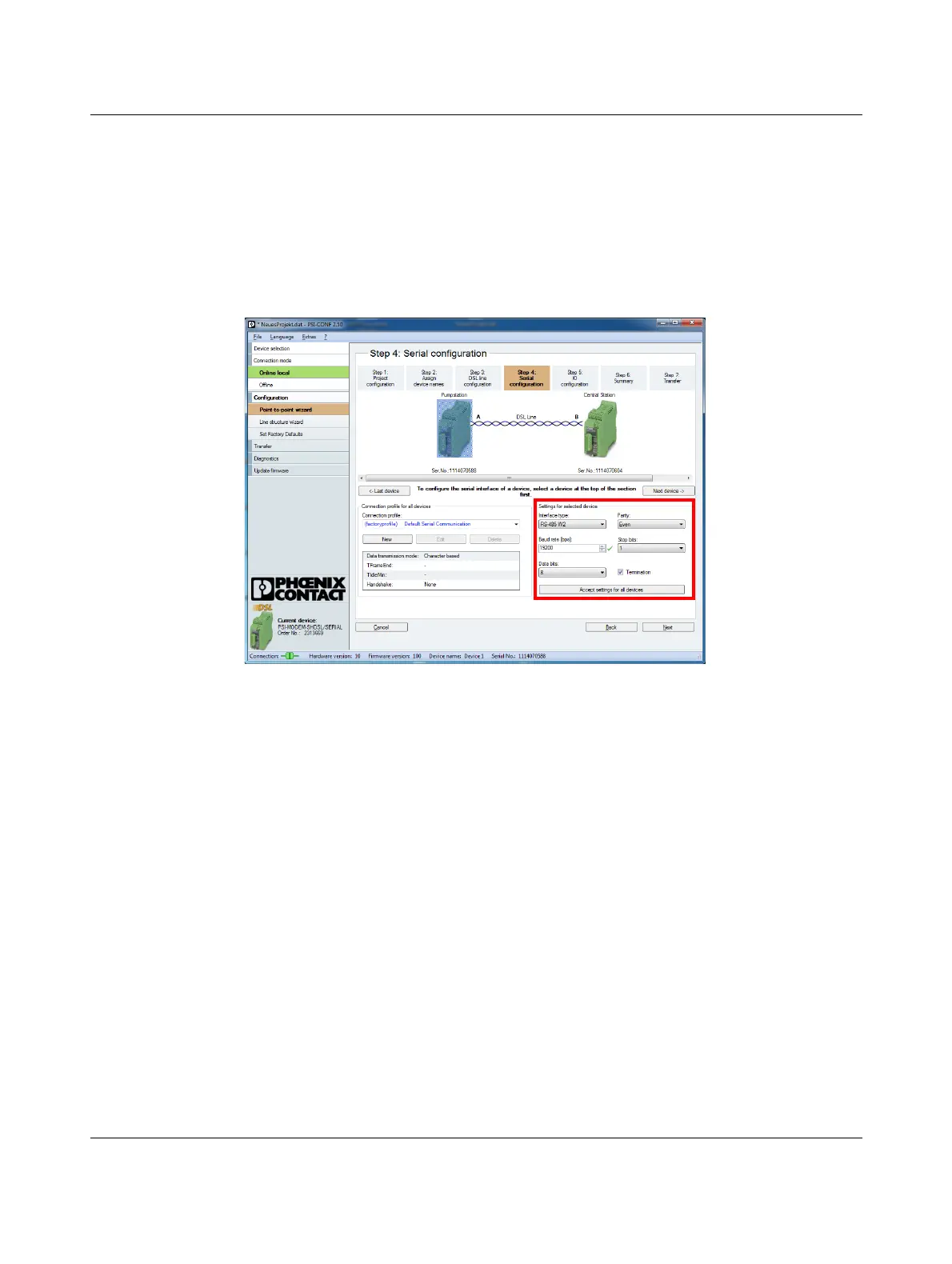

Figure 8 Configuring the serial interface
