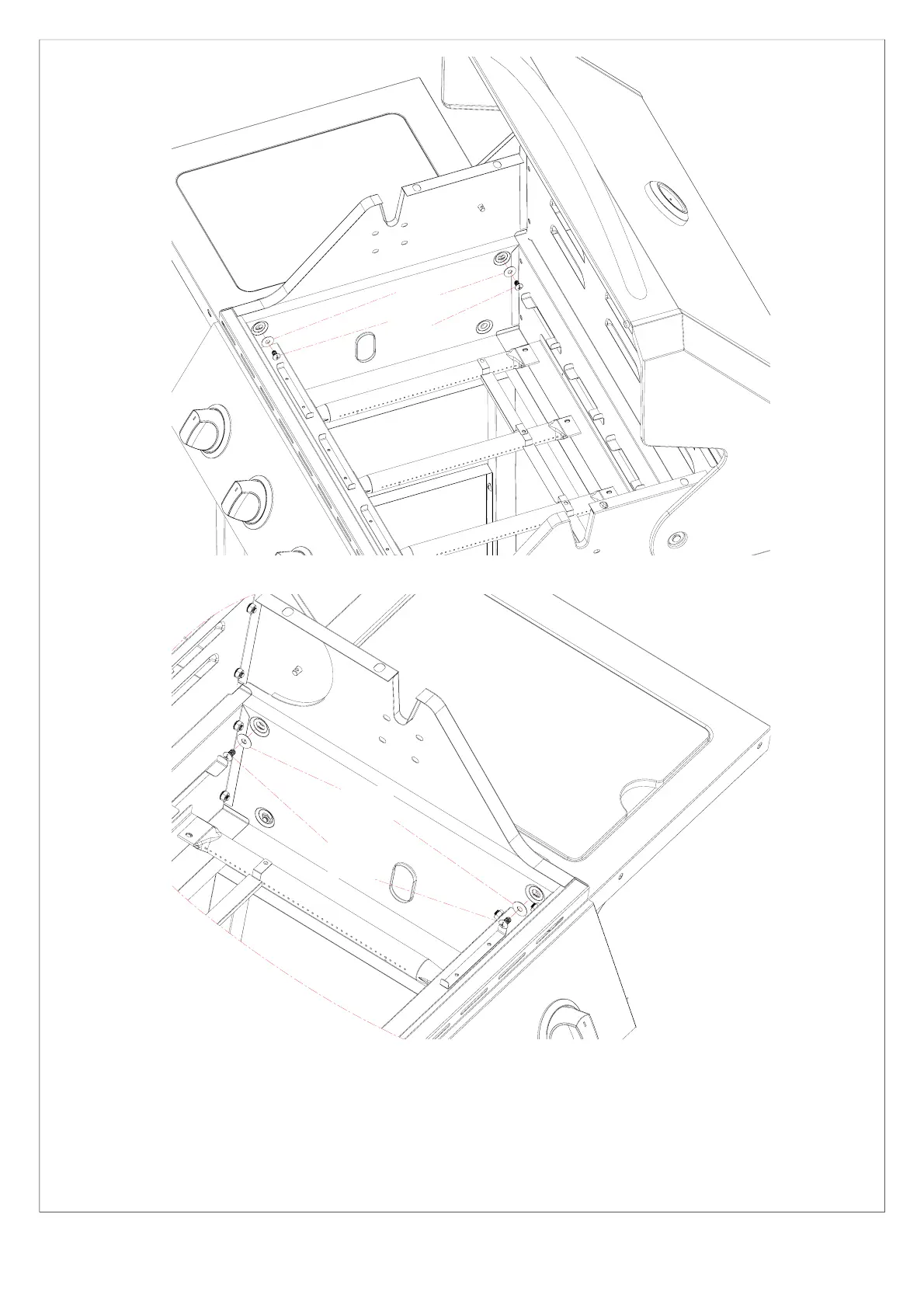

Fix the Grill Assembly (A1) on the Left Rear Leg (D1) and Left Front Leg (D2) using M6*12 bolt (E1) as fig
9c. Put the M6 Washer (E3) between the M6*12 bolt (E1) and the Grill Assembly (A1).
Fix the Grill Assembly (A1) on the Right Front Leg (D4) and Right Rear Leg (D3) using M6*12 bolt (E1) as
fig 9d. Put the M6 Washer (E3) between the M6*12 bolt (E1) and the Grill Assembly (A1).
E1
E4
Fig 9c
E1
E4
Fig 9d
E3
E1
C6
C4
E3
E1
