C. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set.
This barbecue requires two people for assembly. Please remove all packaging materials from all individual parts before
assembling. Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is taken during the
manufacture of this product, care must be taken during the assembly in case sharp edges are present.
1
Fig 1
Fig 2

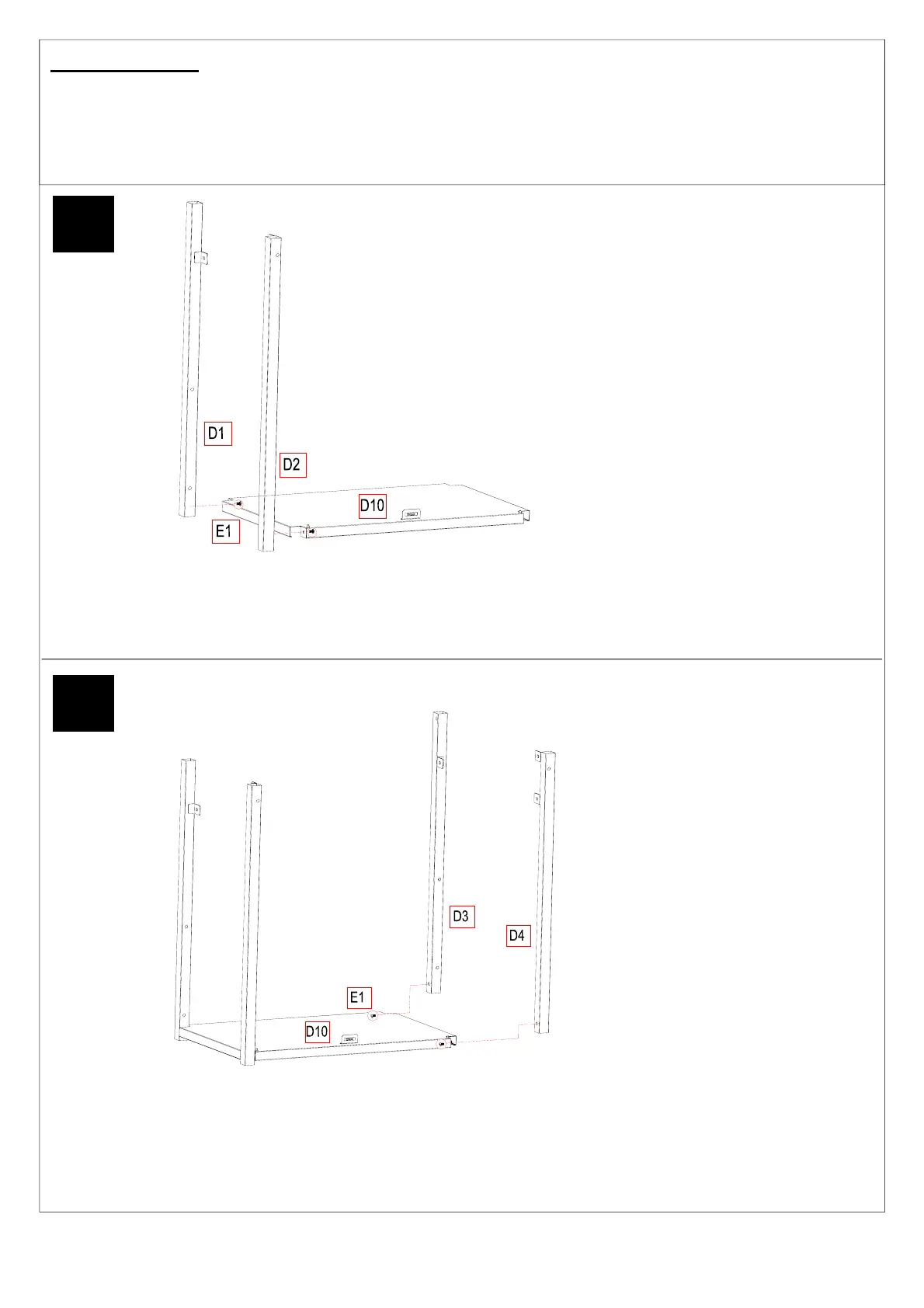

Put the Left Front Leg (D2) and Left Rear Leg (D1) on the Bottom Assembly (D10) using M6*12 bolts (E1) as
fig 1. Fix the bolts tightly by the screwdriver.
2
Put the Right Front Leg (D4) and Right Rear Leg (D3) on the Bottom Assembly (D10) using M6*12 bolts (E1)
as fig 2.
Fix the bolts tightly by the screwdriver.
