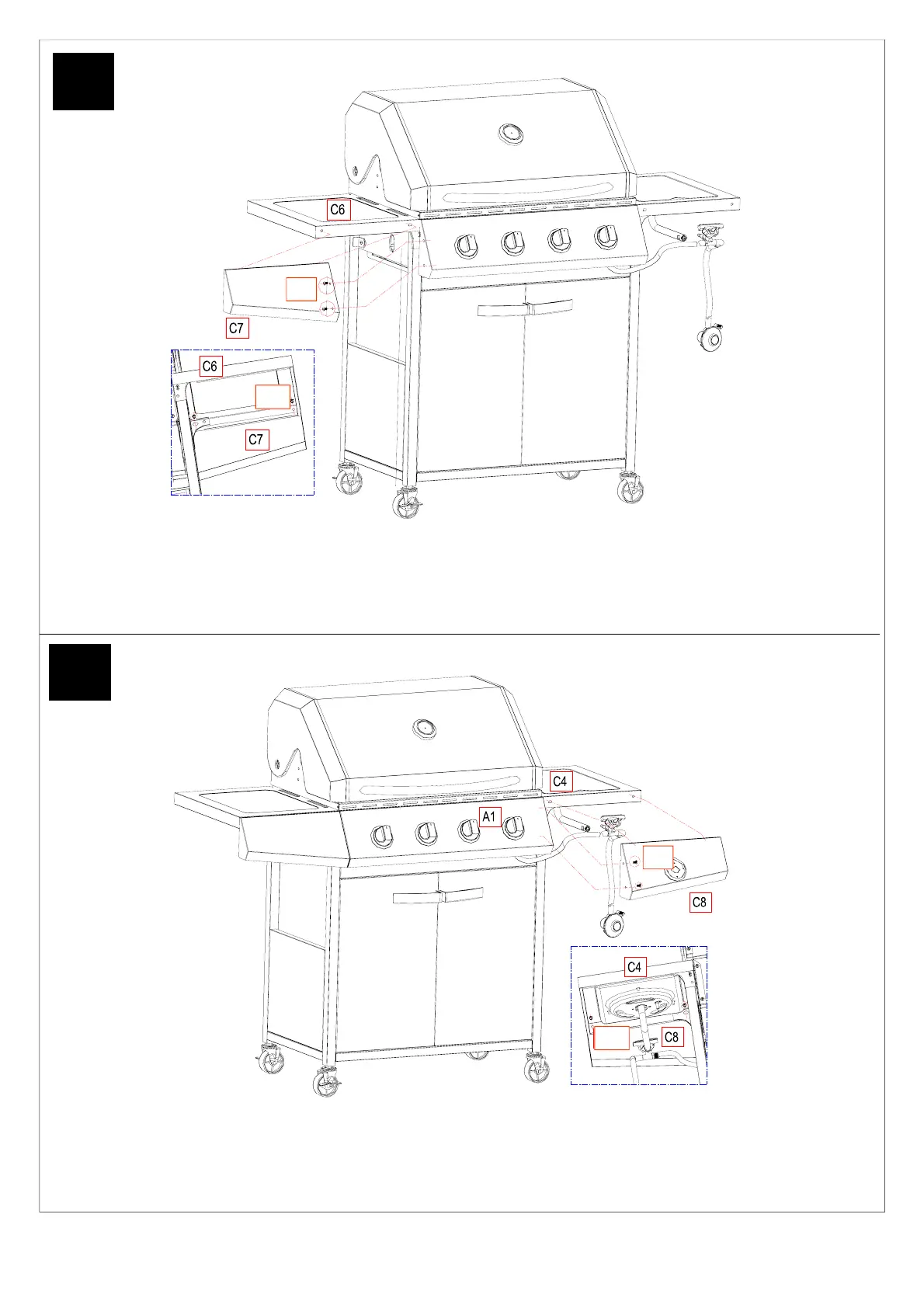

Fix the Side Table Panel (C7) on the Side Table Assembly (C6) using M6*8 bolt (E2). Then fix the Side Table
Panel (C7) on the main control panel of the Grill Assembly (A1) using M6*12 bolt (E1) as fig 12.
Fix the Side Burner Panel (C8) on the Side Burner Assembly (C4) using M6*8 bolt (E2). Then fix the Side
Burner Panel (C8) on the main control panel of the Grill Assembly (A1) using M6*12 bolt (E1) as fig 13.
Fig 13
13
Fig 12
E2
E1
E1
E2
