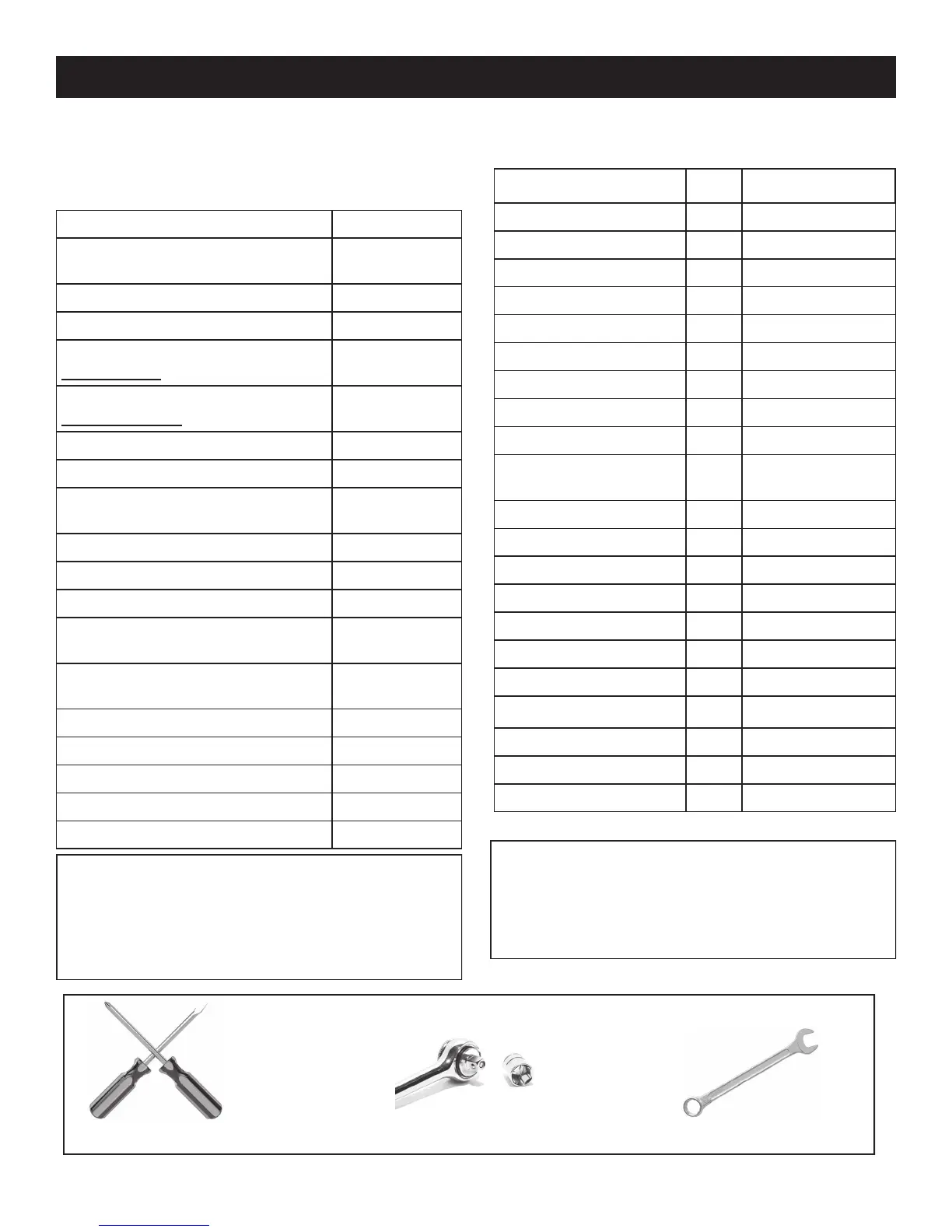

Phoenix Grill Assembly Instructions
Carton contains the following components for assembly:
Please check to be sure that all parts are included before proceeding.
Contact your dealer or the factory if any parts are missing.
Grill and Cart Components
Grill Lid 1
Grill Bottom with Pre-Assembled Burner, Gas
Collector Box and Igniter Wire
1
Hinge Pins and Clips 2 Each
Column 3 (Front, 2 Sides)
Tank Locking Bar (See Pre-Pack Below)
(Propane Model)
1 Pre-Pack
12 Ft. Hose with Quick Disconnect
(Natural Gas Model)
1
Base 1
Locking Casters 4
Control Panel with Pre-Assembled Valve,
Hose, Regulator and Igniter
1
Burner Control Knobs 2
Rotary Igniter 1
Igniter Knob 1
Shelf Brackets, Shelves
(See Pre-Pack Below)
1 Pre-Pack
Stainless Steel Handle, Handle End Caps
(See Pre-Pack Below)
1 Pre-Pack
Cast Aluminum Drip Pan 1
Stainless Steel Cooking Grid 1
Drip Pan Drain Valve 1
Collector Bucket 1
Heat Indicator 1
Hardware/Fasteners
HARDWARE QUAN. USE
1/4-20 x 1/2” Hex Head Bolt 12 Column to Base
Flat Washer 24 Column to Base
KEP Nut 12 Column to Base
1/4-20 x 1/2” Hex Head Bolt 8 Heat Shield to Column
Flat Washer 16 Heat Shield to Column
KEP Nut 8 Heat Shield to Column
1/4-20 x 1/2” Hex Heat Bolt 6 Grill Bottom to Column
Flat Washer 12 Grill Bottom to Column
KEP Nut 6 Grill Bottom to Column
KEP Nut
Flat Washer
2
2
2 Threaded Studs on
Control Panel
1/4– 20 x 1/2” Hex Head Bolt 2 Control Panel to Column
Flat Washer 4 Control Panel to Column
KEP Nut 2 Control Panel To Column
Flat Washer 16 Shelf Brackets to Grill
1/4-20 x 1/2” Hex Head Bolt 8 Shelf Brackets to Grill
KEP Nut 8 Shelf Brackets to Grill
1/4-20 x 1/2”Hex Head Bolt 8 Shelf to Brackets
Lock Washer 8 Shelf to Brackets
Flat Washer 8 Shelf to Brackets
Hinge Pin 2 Lid to Grill Bottom
Hinge Clip 2 Lid to Grill Bottom
Phillips and Straight Screw Driver
7/16 Socket or Nut Driver
7/16 Wrench
7
Pre-Packaged Part and Fasteners
Tank Locking Bar- Nylon Spacer, 2 3/4” Hex Bolt, Flat Washers (4) and Kep
Nuts (2)
Handle– Handle End Caps (2), Graphite Gasket (2), Hex Bolts (2), Flat Wash-
ers (4) and Kep Nuts (2)
Shelf Assembly– Shelf Brackets (4), Shelves (2), Hex Head Bolts (16), Flat
Washers (16), Lock Washers (4) and Kep Nuts (8)
Fastener Totals
Hex Bolts 1/4-20x1/2 ........................................................................44
Flat Washers......................................................................................90
Lock Washers......................................................................................8
Kep Nuts............................................................................................42
Hex Bolts 1/4-20x3/4...........................................................................4
TOOLS NEEDED FOR ASSEMBLY
