Phonic Ear PE 600E - Daisy Chaining to Expand Coverage; Connecting and Using the Emitter

6
Starsound 600 setup and operation (cont’d)
For coverage greater than 370m
2
/4000ft
2
you can
daisy chain an unlimited number of emitters.
Turn on house
sound system
1
1
2
Confirm input level
detector(s) flash
when signal peaks
2
ON
AT0701
Sync
Out
Sync In
House Sound System
4

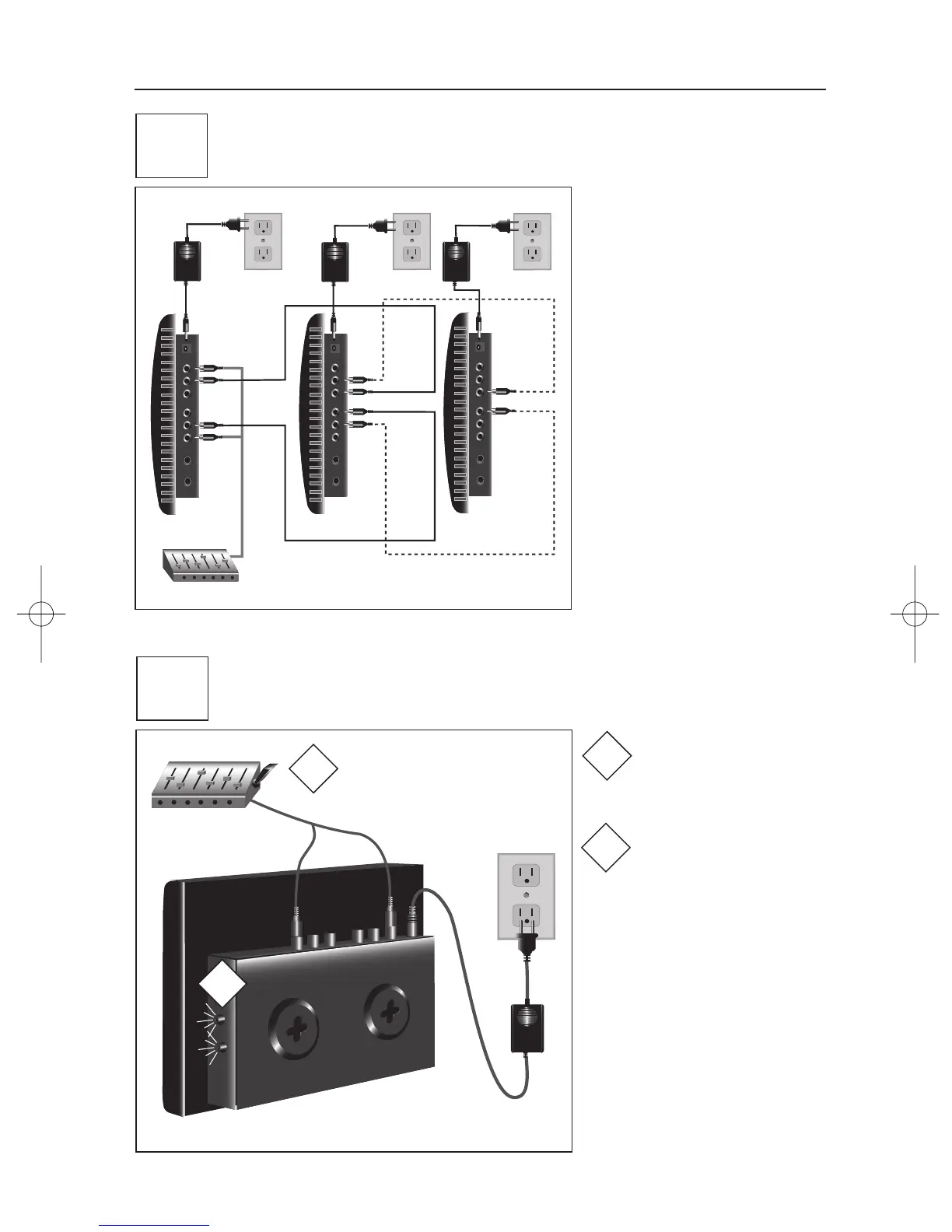

daisy chaining to
expand coverage
AT0701
AT0701
Sync
Out
Master
Sync
In
Sync
In
Sync Out
Sync Out
Slave 1
Slave 2
Sync
In
Sync
In
OFF
AT0701
NOTE: Unplug emitter
when not in use for
prolonged periods
5
connecting and using
the emitter
NOTE: If more than one
PE 600E is being used,
the emitters must be daisy
chained together.
