Phonic K12 - PANEL LAYOUT

PHONIC CORPORATION

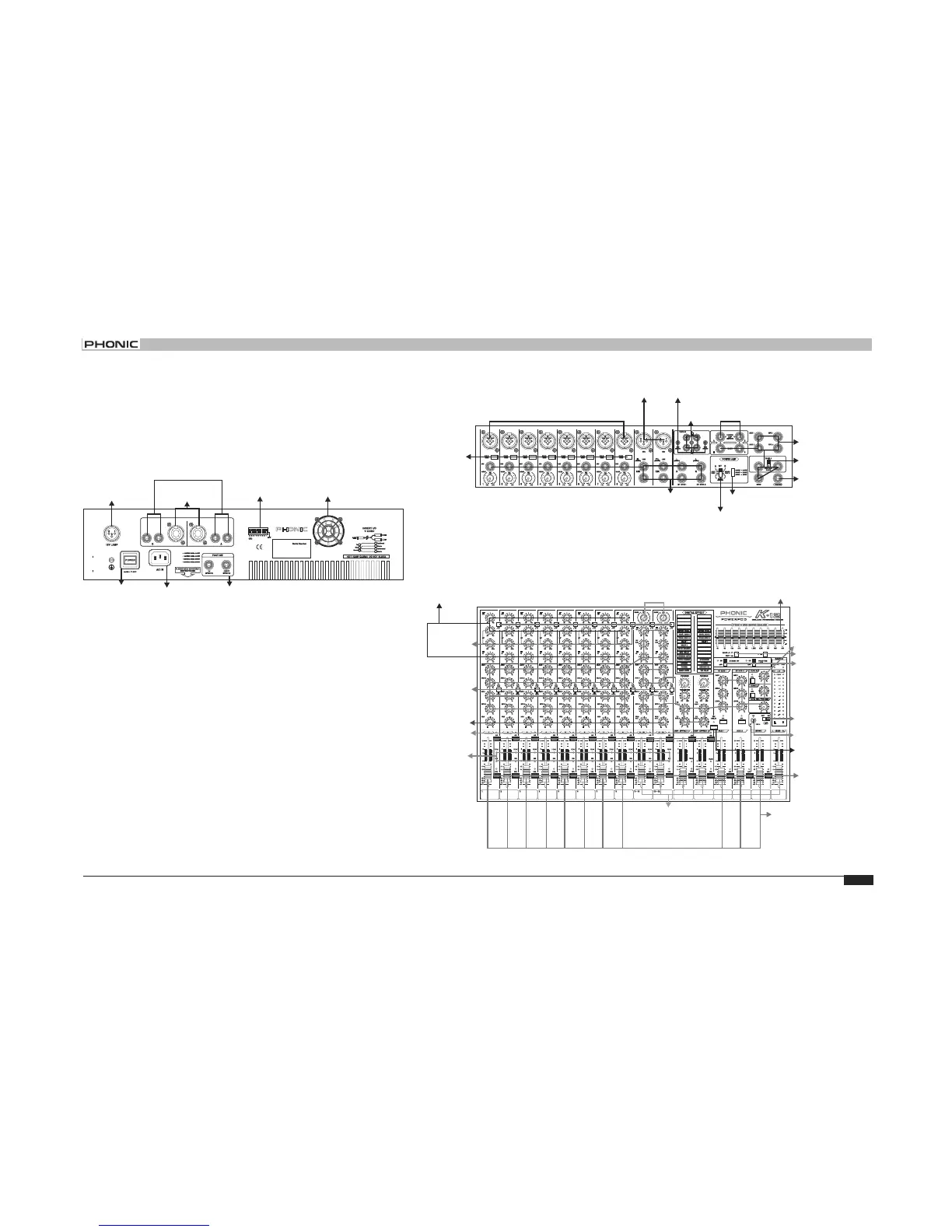

PANEL LAYOUT
K12 SERVICE MANUAL
Page 4Page 3
SPEAKON
211-03400-021-0
PARALLEL
211-01602-560-0
12V LAMP
211-03300-160-0
POWER SW
542-60280-020-0
PSH / SW
210-02101-030-0
AC / IN
211-12300-070-0
FOOT SW
211-01602-380-0
PHANTOM POWER
210-07100-000-0
FAN
347-00000-230-0
COMBO
211-03300-030-6
PAD
210-02202-070-0
P / KNOB
542-60092-222-0
INS / AMP INPUT
211-01602-380-0
INS / AMP INPUT
211-01602-380-0
RCA JACK
211-00041-100-0
MIC JACK
211-0330-030-6
MINI JACK
211-01302-140-0
AMP MODE
210-01201-020-0
POWER AMP
210-01403-010-0
EFX, AUX
211-01602-390-0
JACK
211-01602-610-0
ZONE 2
210-01206-360-6
FREQ
023-10470-021-0
HF / MF / L F
540-60300-420-0
HF / MF / L F
022-50350-050-0
R / KNOB
540-060300-420-0
GAIN
023-50350-011-0
R / KNOB
540-60300-220-0
AUX R / KNOB
540-60300-520-0
EFX1,2, AUX 1,2
022-20356-001-0
R / KNOB EFX 1,2
540-60300-220-0
PAN
023-10350-020-0
R / KNOB
540-60300-420-0
ON / MAIN AUX
210-02402-050-0
AUX1,2 / EFX1,2 / RTN1,2
023-20350-001-0
AUX R / KNOB
540-60300-520-0
EQ
027-10412-000-0
MAIN L R / ON
210-01202-120-0
LPF
210-01202-120-0
VR
023-50340-023-0
CH9-10/11-12/DSP EFF1,2
/MAIN
027-6326-020-0
DSP EFFECT
541-60005-820-0
L / R
541-60005-720-0
CH1-8 / AUX 1,2
026-10326-040-0
AUX S/ KNOB
541-60005-920-0
PFL / ON OFF
210-02201-440-0
P / KNOB
542-20300-221-00
P / KNOB
542-60090-222-0
GRN LED
100-00005-000-0
GRN LED
100-00005-000-0
TAP DELAY
210-02202-080-0
