“ASSEMBLE INSTRUCTIONS”

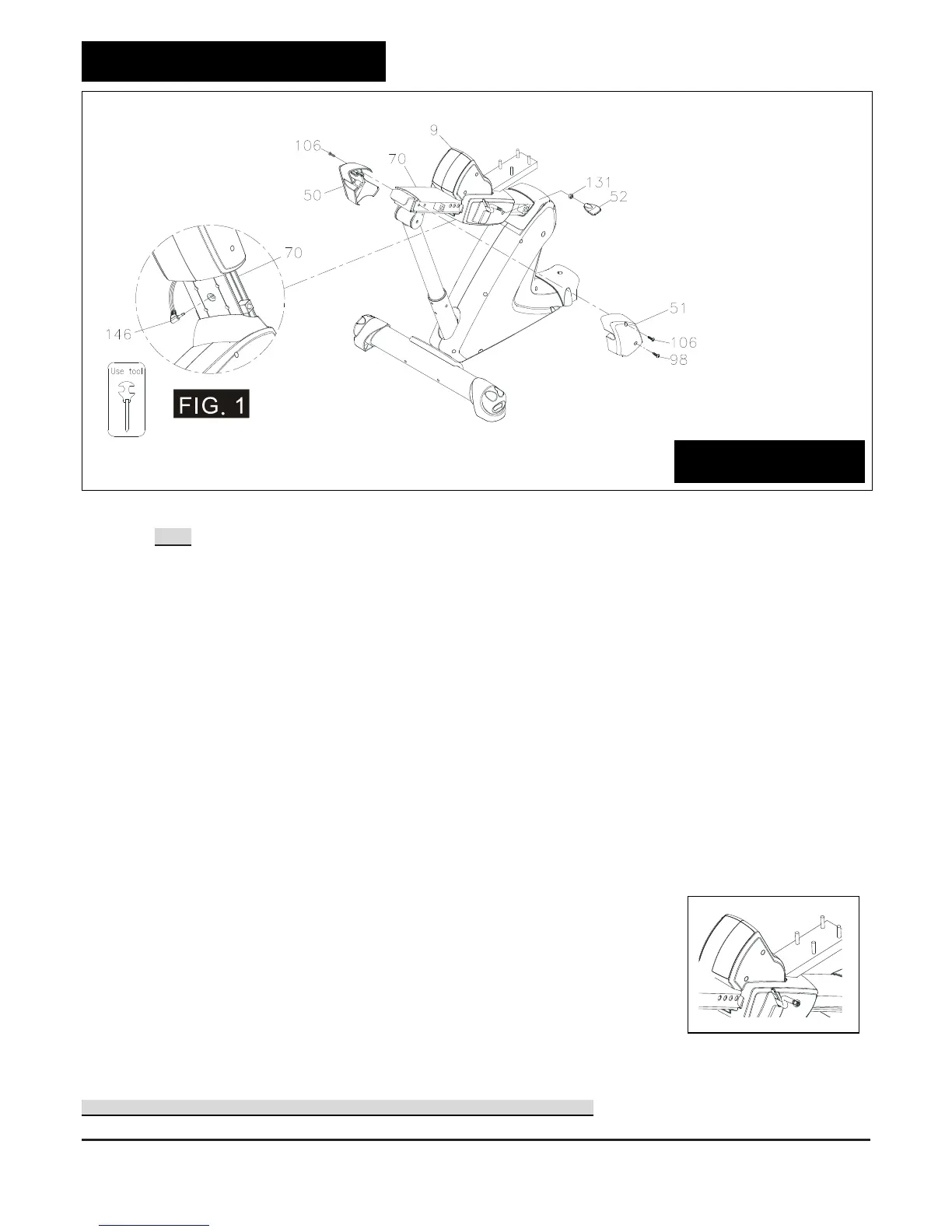

STEP 9 –
Rail Decoration Assembly
a. Follow FIG.1 to plug the Short Extension Pulse Wire (146) into the connector located on the front bottom side
of the Seat Rail (70).
b. Attach the Left Rail Decoration Cover (50) and the Right Rail Decoration Cover (51) to the rear side of the Seat
Rail (70) and secure one Self-Tapping Screw, Truss Head (M4x20mm)(98) and two Screws, Round Head
(M5xp0.8x15mm)(106).
STEP 10 –Seat Adjusting Handle Assembly
a. A Nut (M8)(131) has been pre-assembled on the Adjusting Handle Stand as shown on the illustration below.
b. Attach the Seat Adjusting Handle (52) to the Adjusting Handle Stand located on the right side of the Seat Carriage
Assembly (9).
c. To fully secure the Seat Adjusting Handle (52) by screwing the Nut (M8)(131) in counterclockwise until completely
reach to the Seat Adjusting Handle (52).
**Make sure the above parts are tightened before moving on to the next page**
