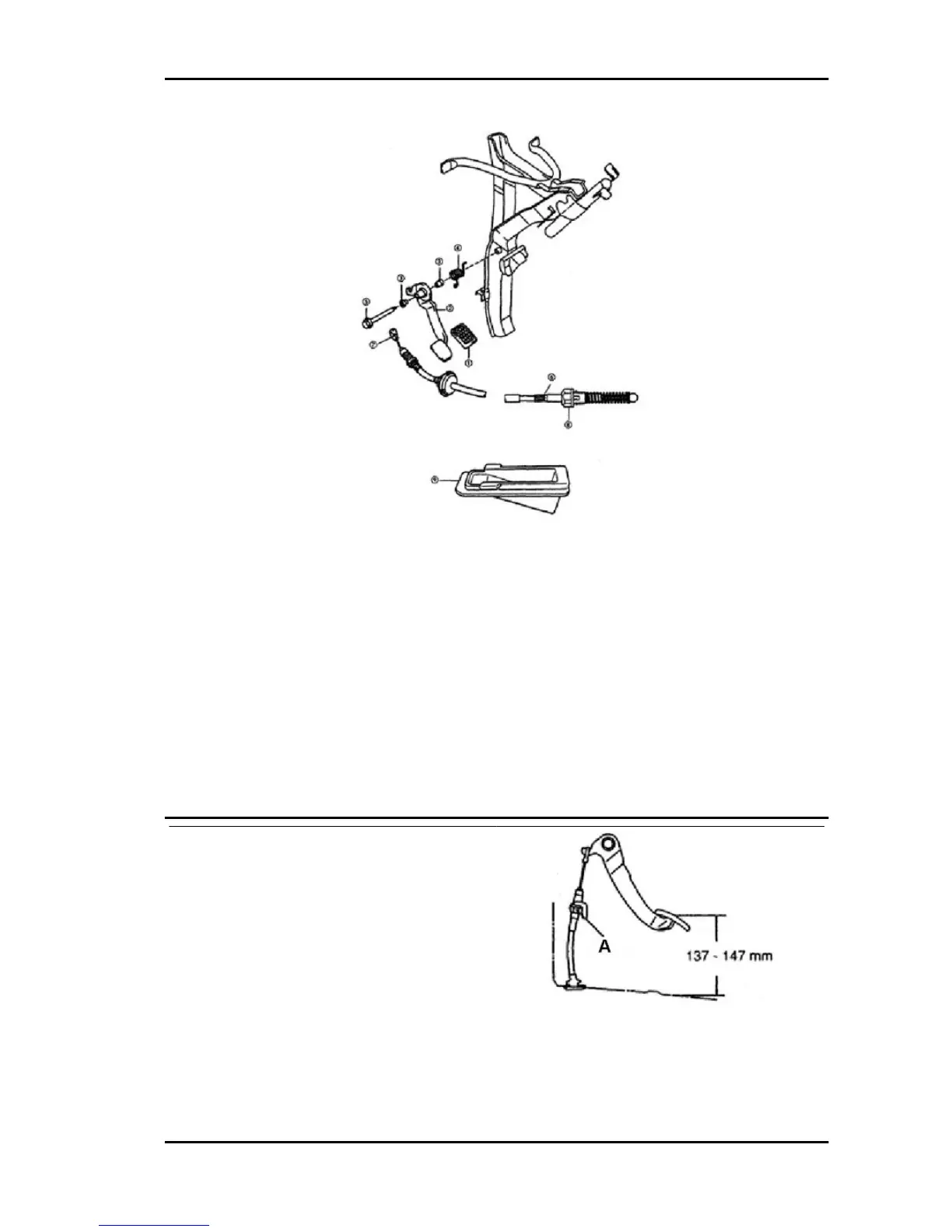

Components:
1. Clutch pedal protection
2. Clutch pedal
3. Bushing
4. Spring
5. Clutch pedal shaft
6. Clutch cable
7. Clutch cable terminal
8. Clutch cable adjusting nut
9. Cover
Clutch pedal adjustment
Pedal fitting height
Set the distance between the floor and the centre
of the pedal upper surface to the specified value,
by means of the external adjusting nut A.
Characteristic
Pedal height:
137 - 147 mm
PORTER 1.3 16V Engine
EN - 347
