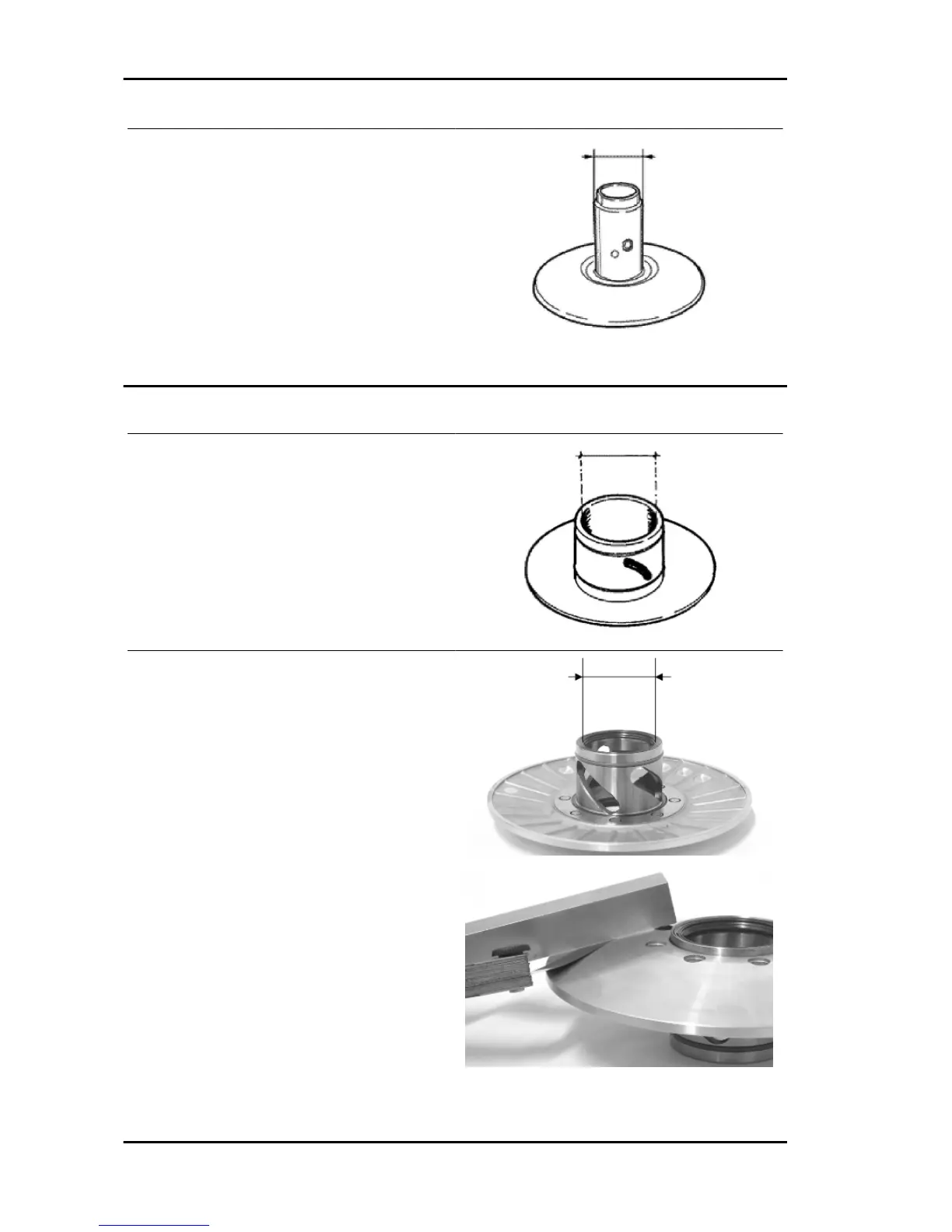

PIAGGIO X8 125 Workshop Manual

- Misurare il diametro esterno del boccolo della
puleggia.
- Verificare la superficie di contatto con la cinghia
non presenti usure anomale.
Characteristic
Half-pulley standard diameter
Standard diameter: Ø 40.985 mm
Half-pulley minimum diameter
Minimum admissible diameter: Ø 40.96 mm
Inspecting the driven sliding half-pulley
- Rimuovere i 2 anelli di tenuta interni e i 2 O-R;
- Misurare il diametro interno del boccolo della
semipuleggia mobile.
Characteristic
Movable driven half-pulley max. diameter
Max. diameter admitted: Ø 41.08 mm
Movable driven half-pulley standard diameter
Standard diameter: Ø 41.000 ÷ 41.035 mm
- Remove the two internal grommets and the two
O-rings.
- Measure the movable half-pulley bushing inside
diameter.
- Check that the faying surface with the belt is not
abnormally worn.
- Check the riveted joints are functional.
- Check the evenness of the belt faying surface.
Engine X8 125-200
ENG - 100

PIAGGIO X8 125 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	124 cc
Cooling System	Liquid cooled
Transmission	Automatic CVT
Fuel System	Carburetor
Fuel Capacity	12 liters
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Front Brake	Disc
Front Tire	120/70-14
Rear Tire	130/70-12
Seat Height	790 mm
