Assemby clearances
01 004

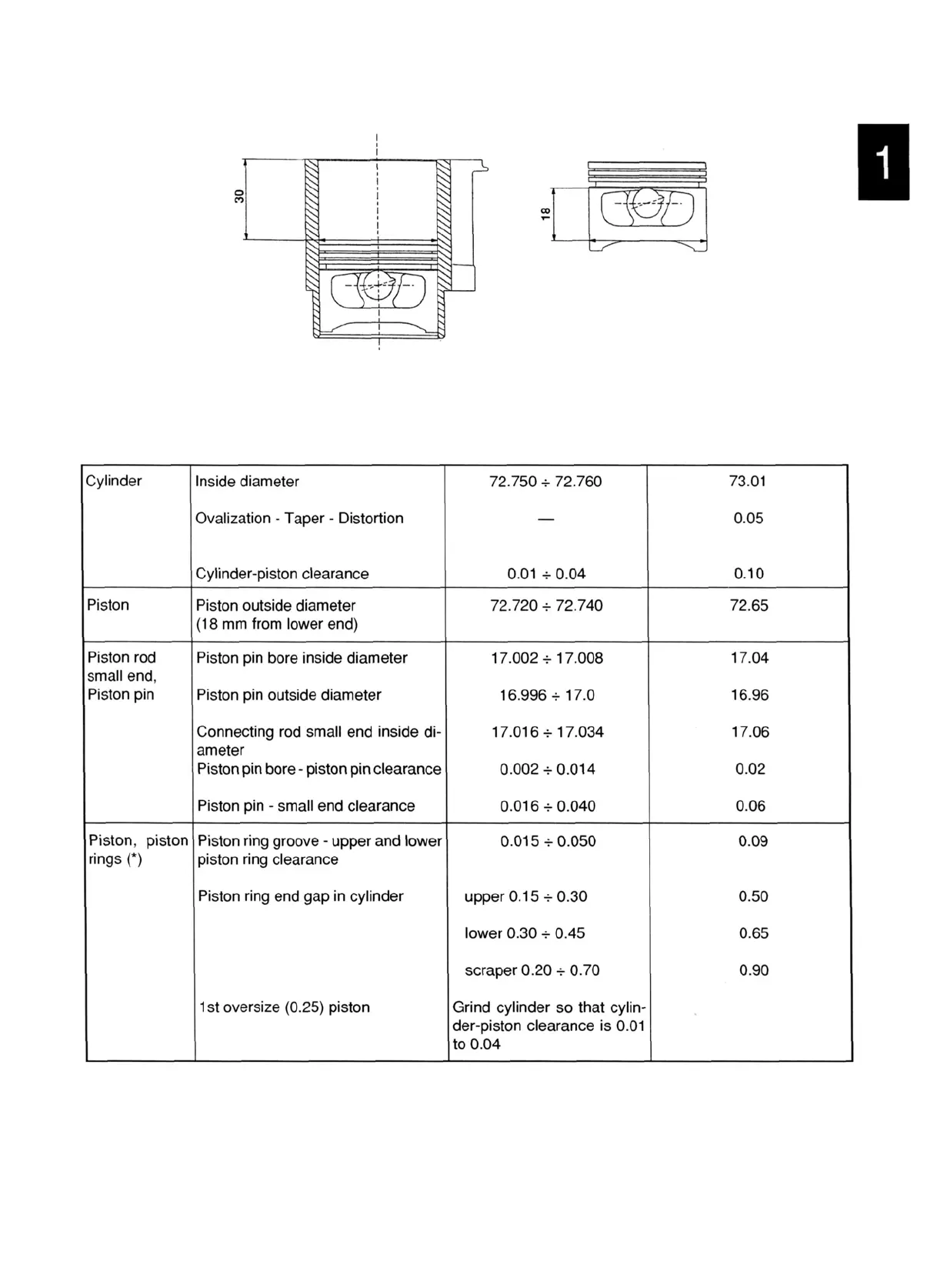

Cylinder-piston table
(*) Fit the piston so that the "IN" mark faces the intake side. Fit the piston rings with the marks facing upwards.
1 -15
Vehicle overhaul data
